Description:

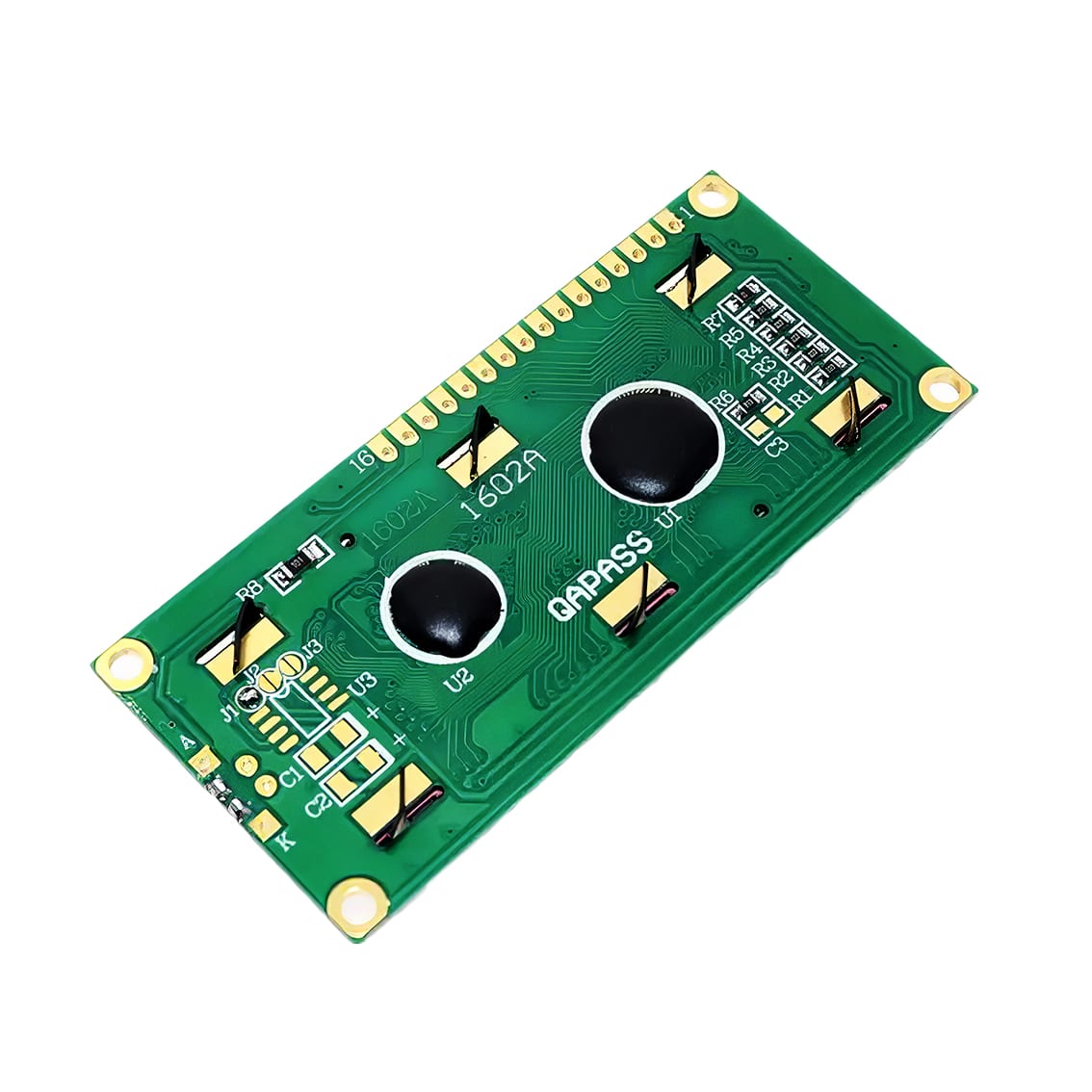

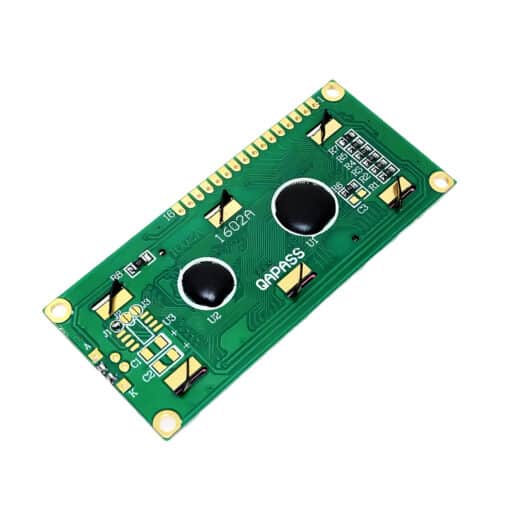

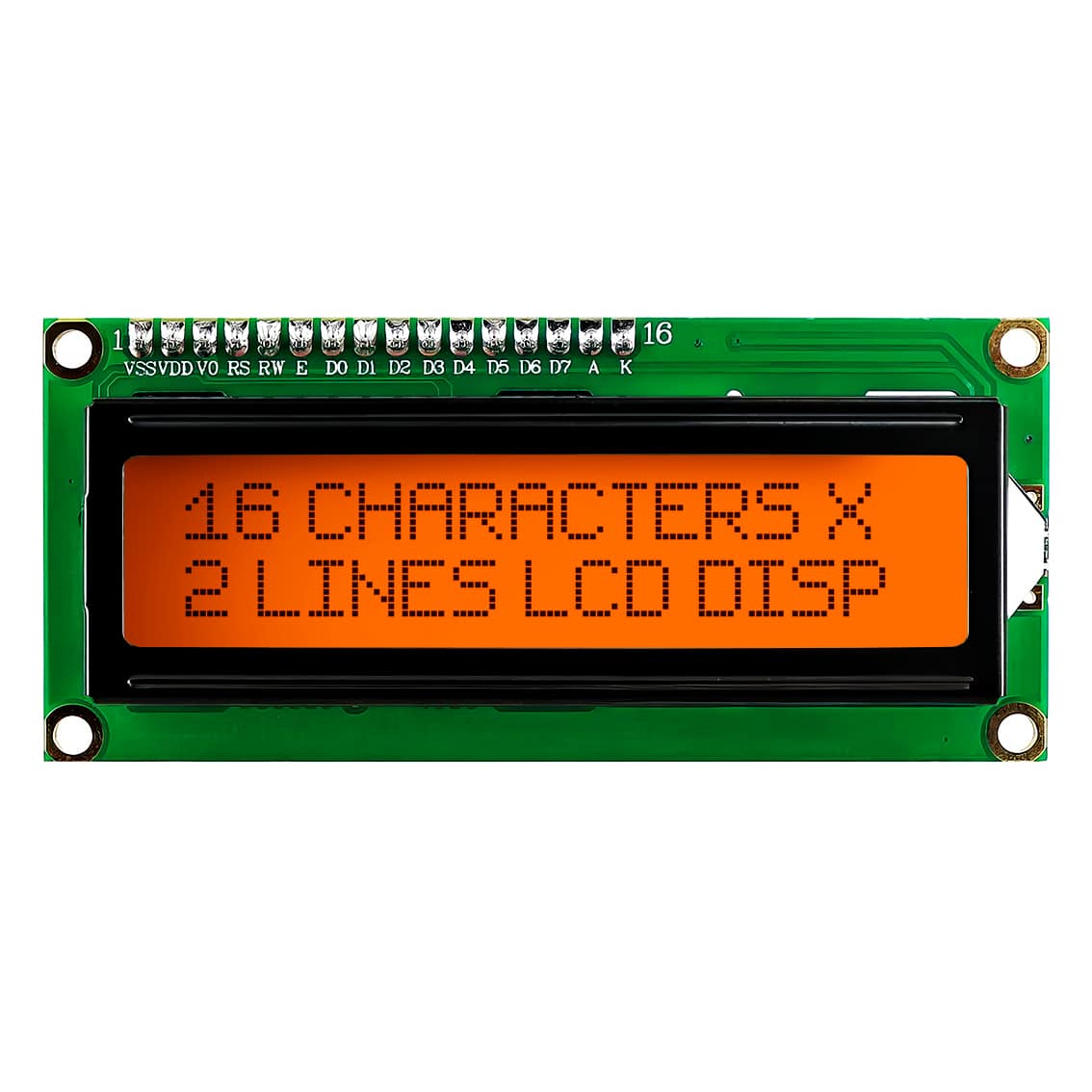

The 1602 Orange LCD Display Board Module is a versatile character display module designed for displaying 16 characters per line across two lines. Featuring a striking orange backlight with dark characters, this module ensures high visibility and readability, making it ideal for various applications such as embedded systems, industrial devices, and DIY projects.
This LCD module is built around the industry-standard HD44780 compatible controller, providing seamless compatibility with a wide range of microcontrollers including Arduino, Raspberry Pi, PIC, AVR, ARM, and 8051. It supports both 4-bit and 8-bit parallel interfaces and I2C, offering flexibility in different project setups. The robust construction and wide operating temperature range make it suitable for demanding environments.
Specifications:
- Display Format: 16×2 characters
- Backlight: Orange LED
- Character Colour: Dark
- Controller: HD44780 compatible
- Interface: 4-bit/8-bit parallel, I2C (optional)
- Operating Voltage: 5V or 3.3V
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Dimensions: 80.0 x 36.0 x 12.0 mm
- Viewing Area: 64.5 x 16 mm
- Character Size: 2.95 x 5.55 mm
- Compliance: RoHS
Features:
- Easy to interface with various microcontrollers
- Supports both 4-bit and 8-bit parallel communication
- High contrast display with excellent readability
- Robust construction suitable for a wide temperature range
- Compatible with I2C interface for reduced pin usage
Contents:
- 1 x 1602 Orange LCD Display Board Module
