Description:

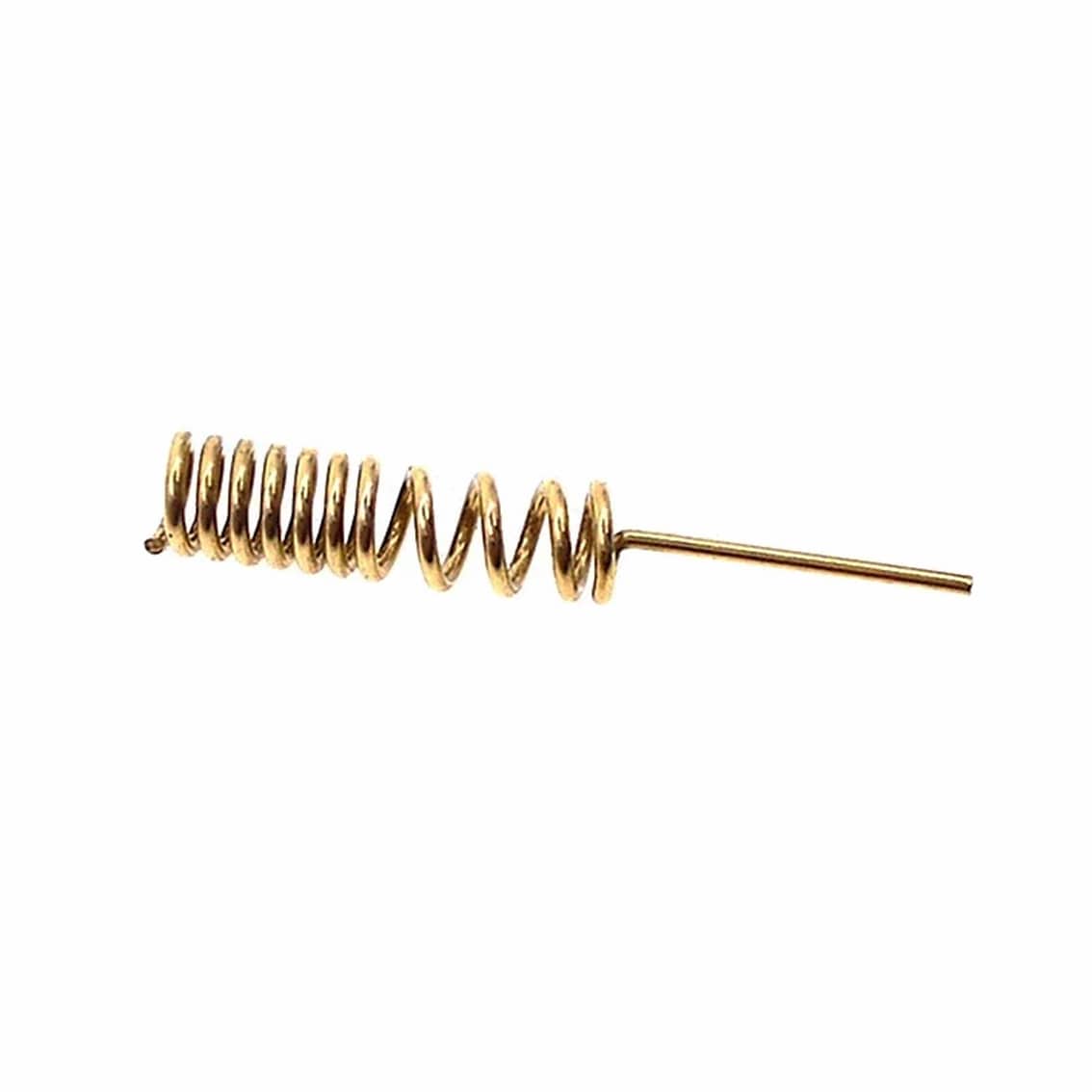

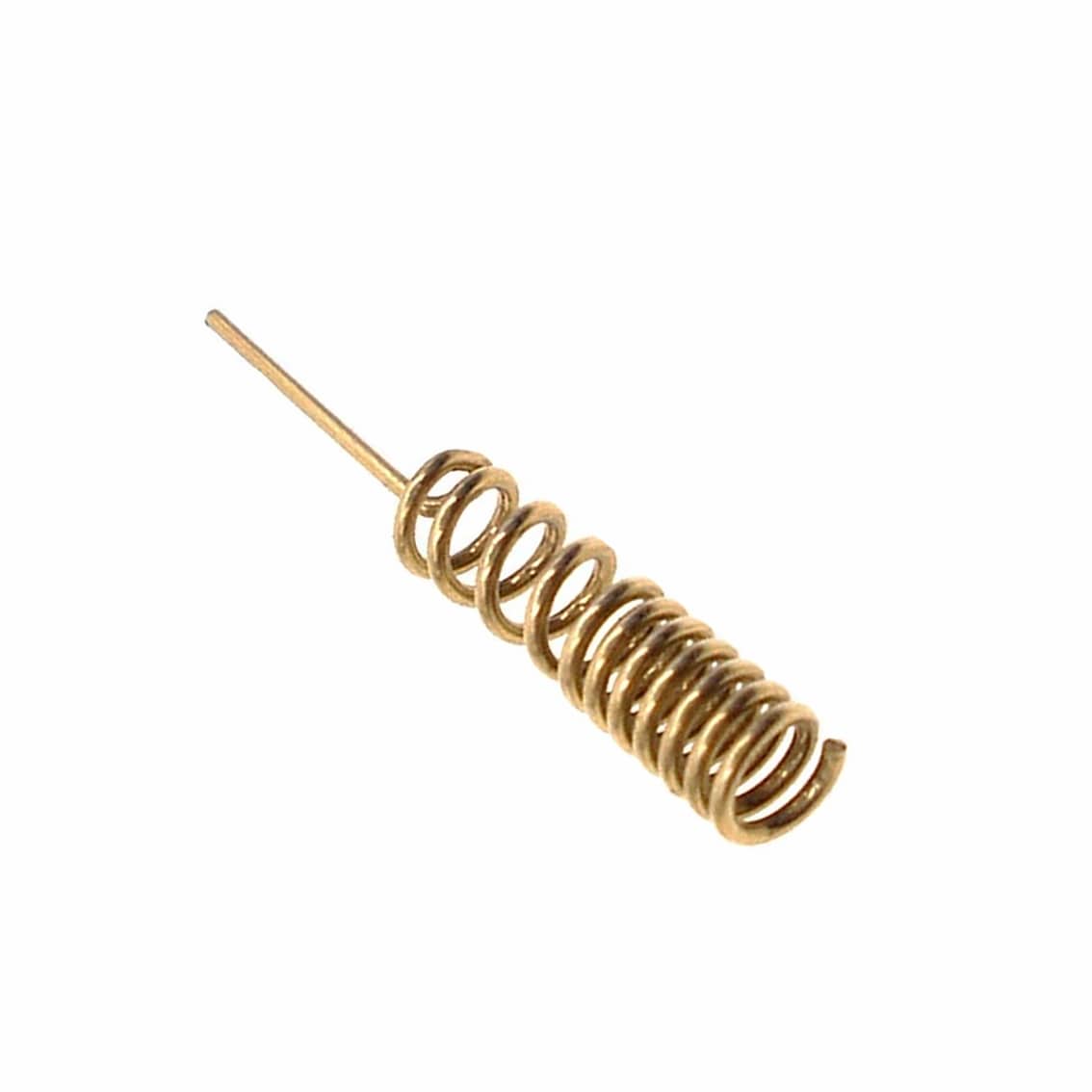

The 868MHz Spring Type Antenna is a compact and efficient solution for enhancing wireless communication systems operating within the 868MHz frequency band. Its helical spring design facilitates seamless integration into devices such as LoRaWAN modules, wireless sensors, and various Internet of Things (IoT) applications. This antenna is engineered to provide reliable performance, ensuring optimal signal transmission and reception in compact electronic devices.
Measuring approximately 13mm in height with a wire diameter of 0.8mm, the antenna’s small form factor makes it ideal for space-constrained designs. It supports direct soldering onto printed circuit boards (PCBs), simplifying the installation process. With a Voltage Standing Wave Ratio (VSWR) of ≤1.5 and a gain of 2.15 dBi, this antenna minimizes signal loss and enhances overall system efficiency, making it a dependable choice for various wireless communication projects.
Specifications:
- Frequency Range: 868 ±5 MHz
- VSWR: ≤1.5
- Gain: 2.15 dBi
- Input Impedance: 50 Ω
- Maximum Power: 5 W
- Polarization: Vertical
- Height: 13 ±1 mm
- Wire Diameter: 0.8 mm
- Mounting: Direct soldering
- Weight: 1 g
Features:
- Compact helical spring design for easy integration into space-constrained devices
- Optimized for 868MHz frequency band, suitable for LoRaWAN and other IoT applications
- Low VSWR ensures minimal signal reflection and loss
- Vertical polarization for consistent performance
- Reliable construction for enhanced durability and performance
Contents:
- 2 x 868MHz Spring Type Antennas
