Adafruit Prop-Maker FeatherWing

Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 2
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 3
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 4
28 people have recently viewed this product!

Adafruit Prop-Maker FeatherWing

0 reviews

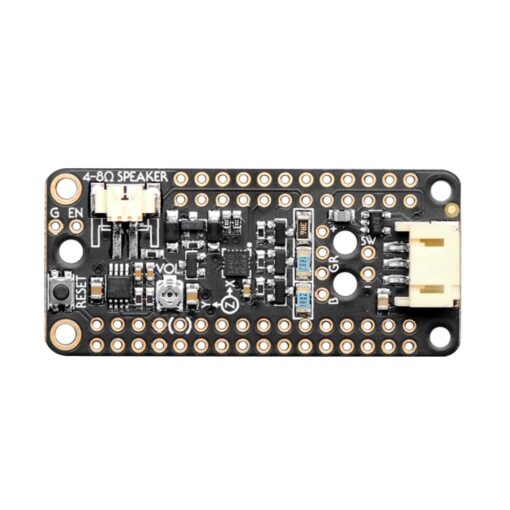

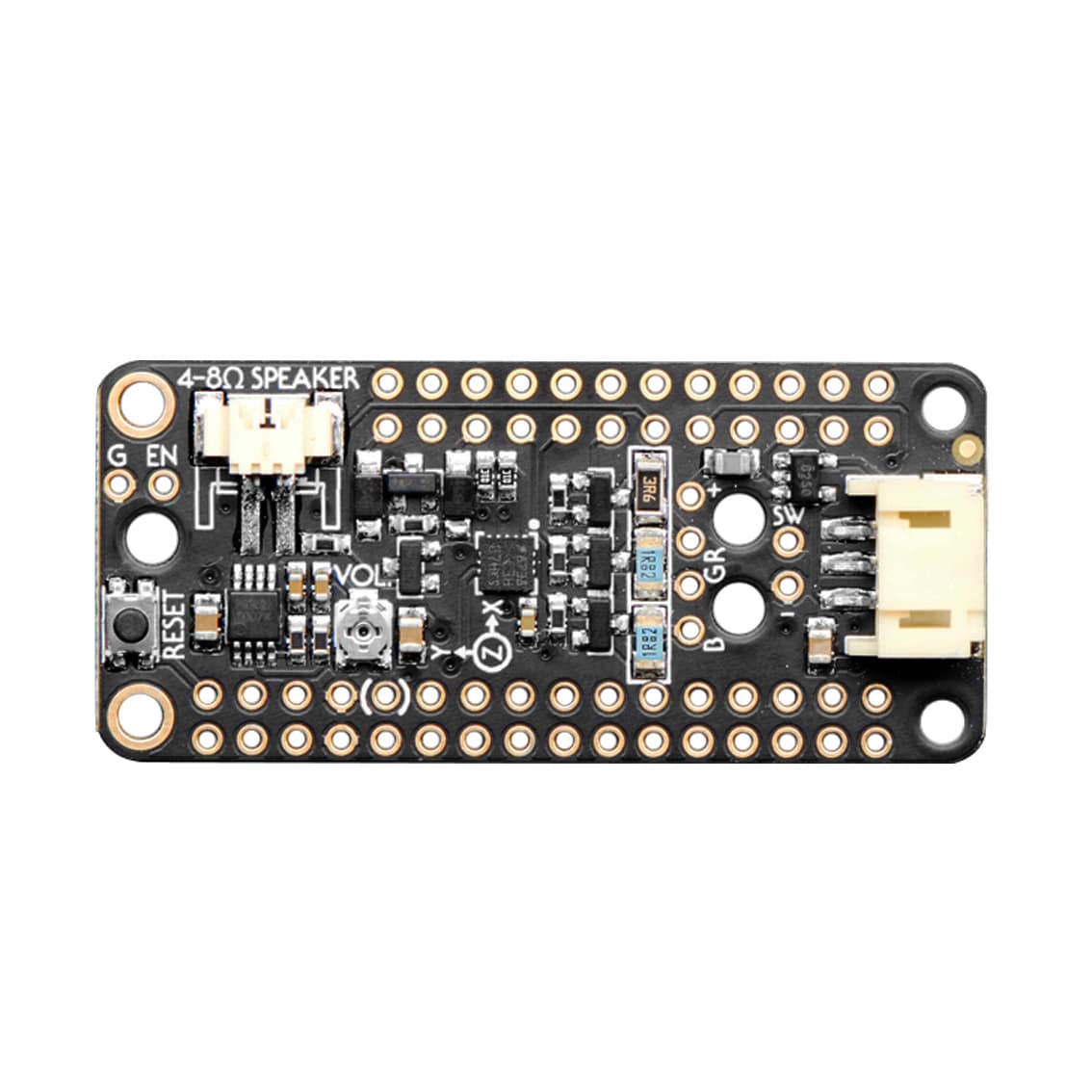

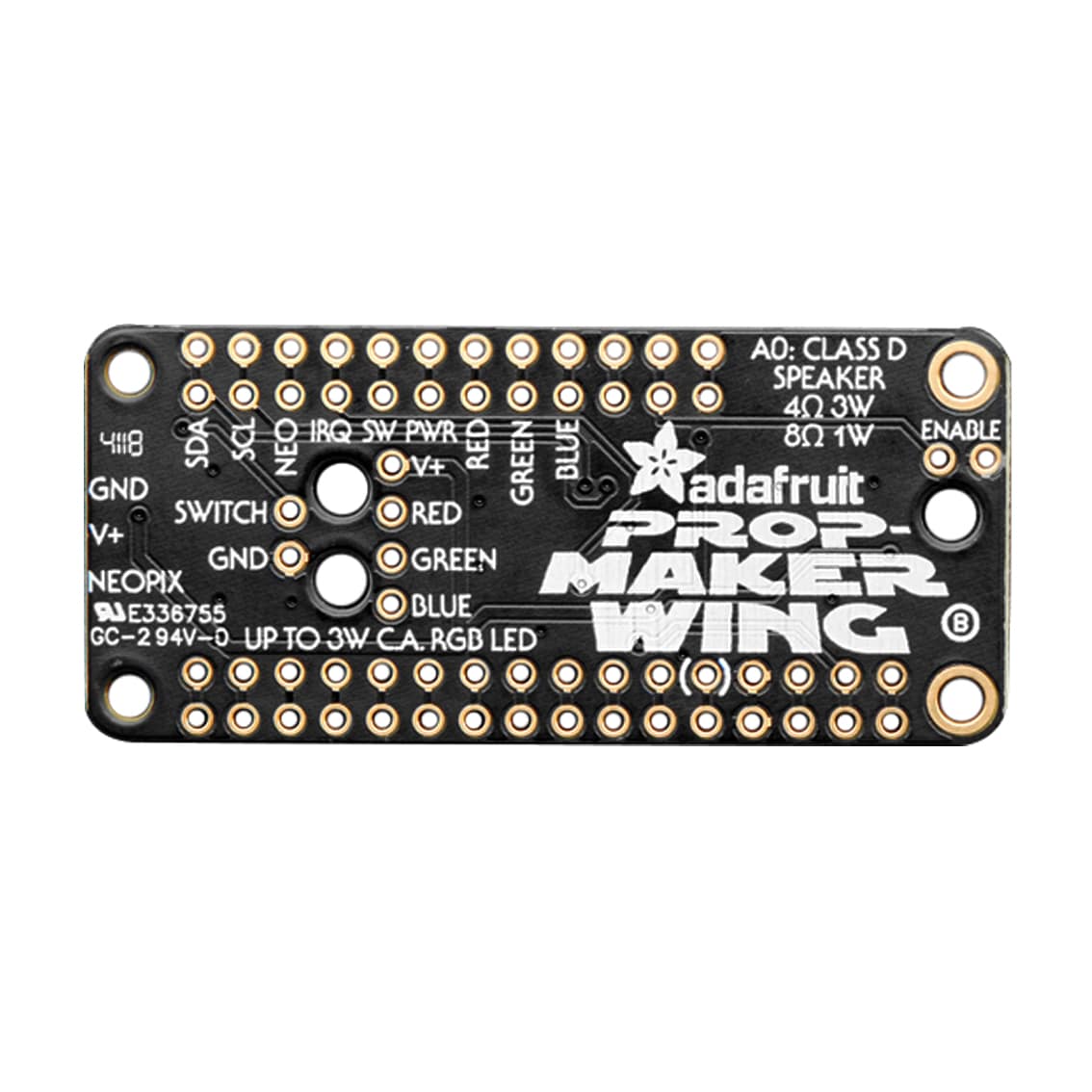

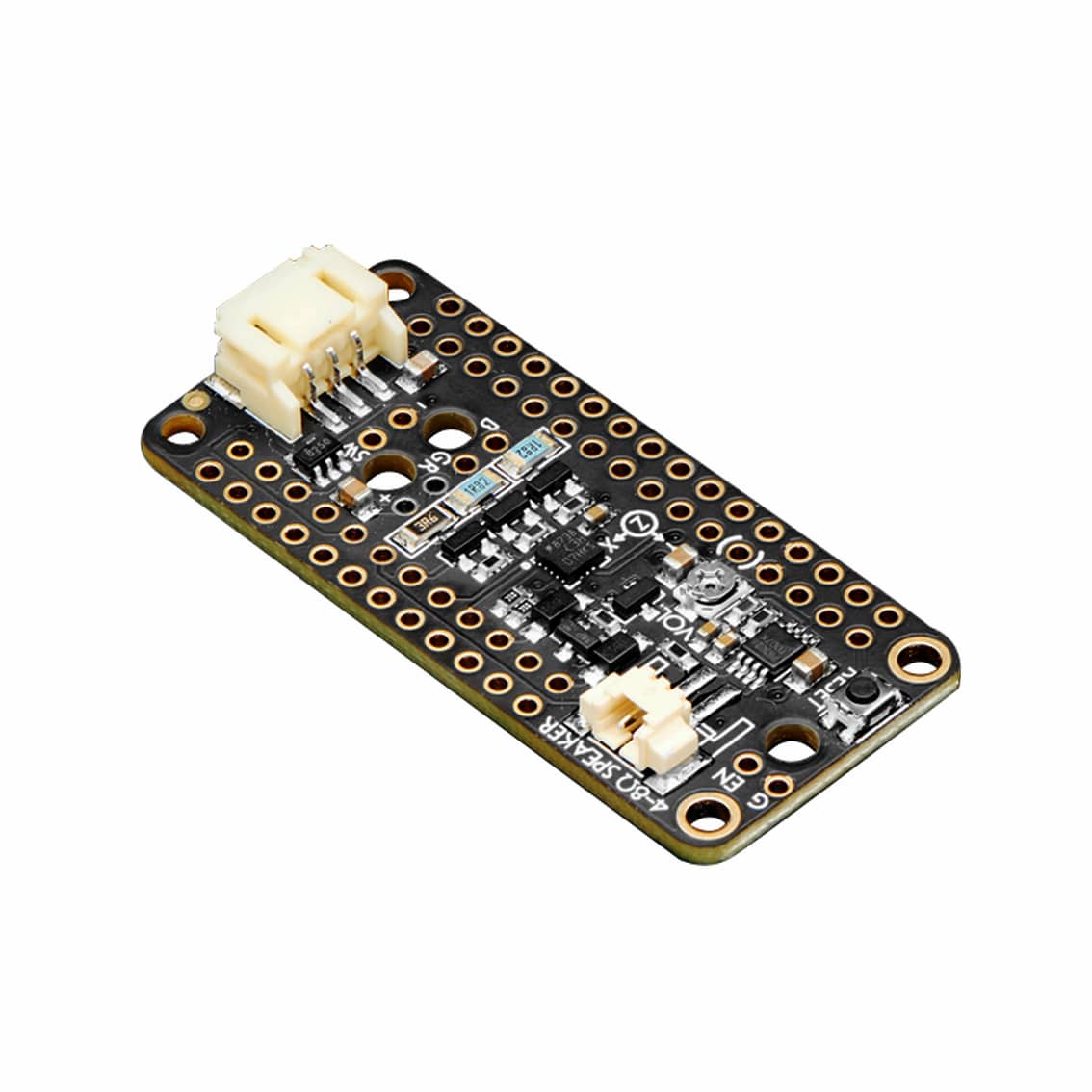

The Adafruit Prop-Maker FeatherWing is an expansion board for Feather microcontrollers, featuring a NeoPixel port, 3W RGB LED drivers, an accelerometer, and an audio amplifier, enabling the creation of interactive props with dynamic lighting, motion detection, and sound effects.

  • Expansion board for Feather microcontrollers to create interactive props.
  • Features a 3-pin JST NeoPixel port with level shifter for clean signal output.
  • Includes 3W RGB LED drivers and LIS3DH accelerometer with tap detection.
  • Onboard class D audio amplifier supports 8Ω 1W or 4Ω 3W speakers.
  • Power management allows for low-power operation in battery-powered projects.

$47.95

Order Within –

FOR SAME DAY SHIPPING!

Availability: 10 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 5
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 6
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 7
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 8
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 9
Adafruit Prop-Maker FeatherWing PHI1003196 Phipps Electronics 10
SKU: PHI1003196

You May Also Like...

Description:

The Adafruit Prop-Maker FeatherWing is an expansion board designed to enhance the capabilities of Adafruit Feather microcontroller boards, enabling the creation of interactive props with ease. It integrates essential features such as a NeoPixel port, 3W RGB LED drivers, a triple-axis accelerometer with tap detection, and a class D audio amplifier. This combination allows for the development of props with dynamic lighting, motion detection, and sound effects, making it ideal for projects like sabers, swords, toys, and cosplay accessories.

Designed for seamless integration, the FeatherWing provides a 3-pin JST connector for direct attachment of NeoPixel strips, with a level shifter ensuring clean voltage signals for glitch-free operation. The onboard LIS3DH accelerometer facilitates motion, tilt, and tap detection, while the audio amplifier supports 8Ω 1W or 4Ω 3W speakers for sound output. Additionally, the board includes power management features, allowing for low-power operation by controlling power to the RGB LED, NeoPixels, and speaker amplifier, making it suitable for battery-powered projects.

Please note: A few of the onboard hardware elements use PWM and analog output it is recommended the Feather M0 Express or Feather M4 or ESP32 series be used. They’ll work best with this wing and let you make the most of it.

Specifications:

  • NeoPixel Port: 3-pin JST connector with level shifter
  • RGB LED Drivers: 3 high-current MOSFETs for 3W RGB LEDs
  • Accelerometer: LIS3DH triple-axis with tap detection
  • Audio Amplifier: Class D, supports 8Ω 1W or 4Ω 3W speakers
  • Power Management: Controllable power to RGB LED, NeoPixels, and amplifier
  • Compatibility: Designed for Adafruit Feather boards
  • Dimensions: 50.8mm x 22.8mm x 7.2mm
  • Weight: 4.8g

Features:

  • Easy integration with Feather boards for prop-making projects
  • Direct connection for NeoPixel strips with clean signal output
  • Supports high-power RGB LEDs for vibrant lighting effects
  • Motion and tap detection for interactive prop responses
  • Onboard audio amplification for sound effects
  • Low-power mode for efficient battery usage

Contents:

  • 1 x Assembled Adafruit Prop-Maker FeatherWing
Weight 0.008 kg
Dimensions 160 × 105 × 5 mm
