Description:

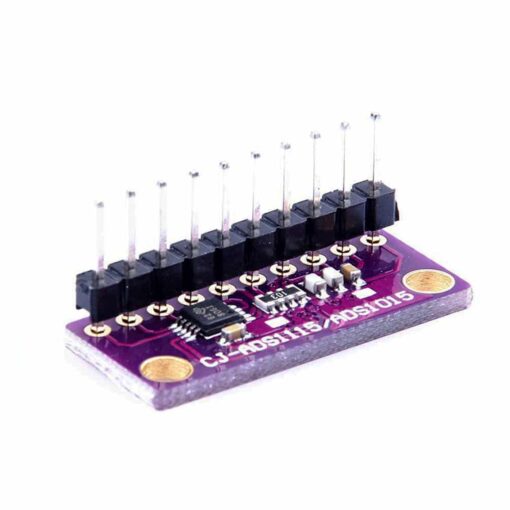

The ADS1015 I2C 12-Bit ADC Module is a precision analog-to-digital converter designed to provide high-resolution measurements for various electronic applications. It uses the ADS1015 IC to offer four single-ended or two differential input channels, allowing for versatile signal acquisition. The module operates over a wide supply voltage range from 2.0V to 5.5V, making it compatible with various microcontroller platforms, including Arduino and Raspberry Pi. It communicates via the I2C interface, supporting four pin-selectable addresses, enabling multiple modules to connect on the same bus.
With a programmable data rate of up to 3.3 kSPS and an internal programmable gain amplifier (PGA), the ADS1015 module can handle both large and small signal measurements with high accuracy. Its low current consumption of 150 μA in continuous-conversion mode makes it suitable for battery-powered and low-power applications. The module also features an internal low-drift voltage reference and oscillator, ensuring stable and reliable performance across various operating conditions.
Specifications:
- Resolution: 12-bit
- Input Channels: 4 single-ended or 2 differential
- Operating Voltage: 2.0V to 5.5V DC
- Interface: I2C with four pin-selectable addresses
- Programmable Data Rate: 128 SPS to 3.3 kSPS
- Internal PGA: Configurable input ranges from ±256 mV to ±6.144 V
- Current Consumption: 150 μA in continuous-conversion mode
- Operating Temperature Range: -40°C to +125°C
- Dimensions: 28mm x 14mm x 2mm
Features:
- High-precision 12-bit ADC for accurate analog signal conversion
- Four single-ended or two differential input channels for versatile measurements
- Wide operating voltage range compatible with various microcontrollers
- I2C interface with multiple address options for easy integration
- Programmable gain amplifier to handle a wide range of input signals
- Low power consumption suitable for battery-operated devices
- Internal voltage reference and oscillator for stable performance
Contents:
- 1 x ADS1015 I2C 12-Bit ADC Module
- 1 x Set of Header Pins
