Description:

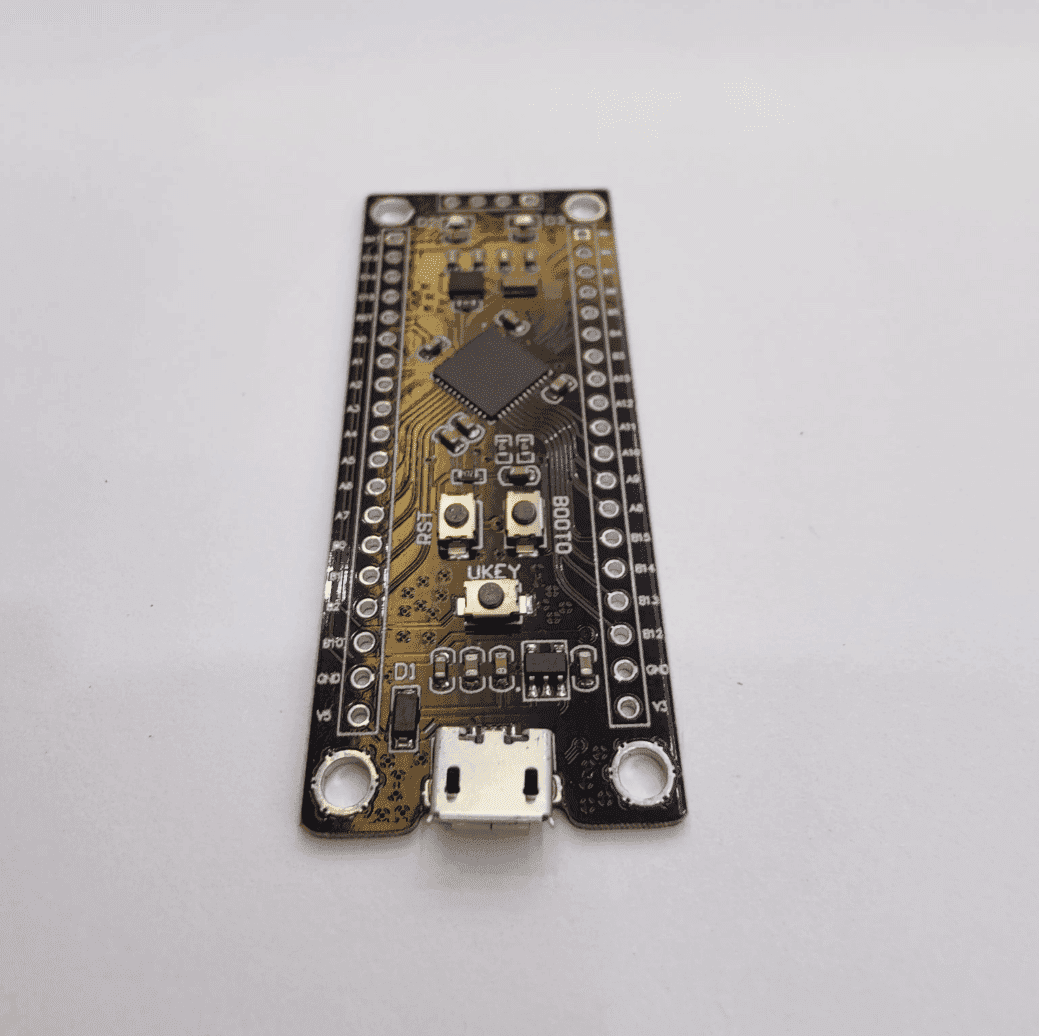

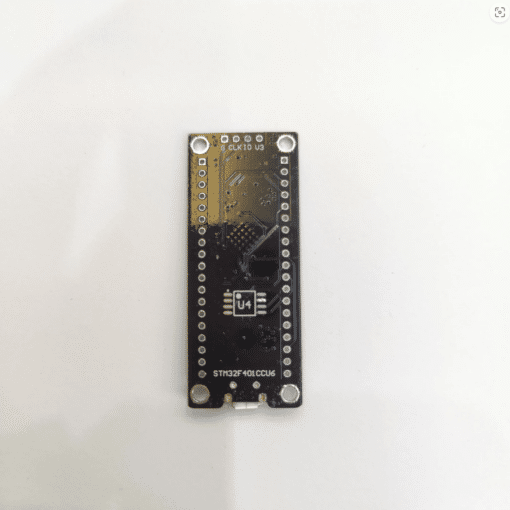

The Black Pill Micro USB Development Board featuring the STM32F411CEU6 microcontroller is a powerful and versatile development platform suitable for various applications, including IoT and embedded systems. This development board is equipped with the STM32F411CEU6 chip, which offers a 100 MHz Cortex-M4 core, 512 KB of flash memory, and 128 KB of SRAM. It supports multiple programming environments, including STM32Cube, Arduino, MicroPython, and CircuitPython, making it an excellent choice for both beginners and experienced developers.
The board features a Micro USB connector for power and programming, with onboard 3.3V and 100mA LDO regulators. It also includes two crystals (25 MHz and 32.768 KHz) for precise timing operations, and a range of I/O options such as UART, I2C, SPI, and I2S. The Black Pill board is compact and can be easily integrated into various projects, providing robust performance and flexible interfacing capabilities.
(Please note item may contain Micro USB version)
Specifications:
- Microcontroller: STM32F411CEU6
- Core: ARM Cortex-M4
- Clock Speed: 100 MHz
- Flash Memory: 512 KB
- SRAM: 128 KB
- USB: Micro USB Connector
- Voltage: 3.3V (LDO regulator), 5V USB input
- Dimensions: 53mm x 21mm x 5mm
- Weight: 4.5g
- Crystals: 25 MHz and 32.768 KHz
- Connectivity: UART, I2C, SPI, I2S
- Additional Features: Boot and Reset buttons, user-controllable LED on PC13, power LED
Features:
- High-performance STM32F411CEU6 microcontroller
- Compact and breadboard-friendly design
- Micro USB for easy power and programming
- Support for multiple development environments: STM32Cube, Arduino, MicroPython, CircuitPython
- Multiple I/O options for versatile applications
- Onboard crystals for precise timing
- Suitable for advanced users and various project types

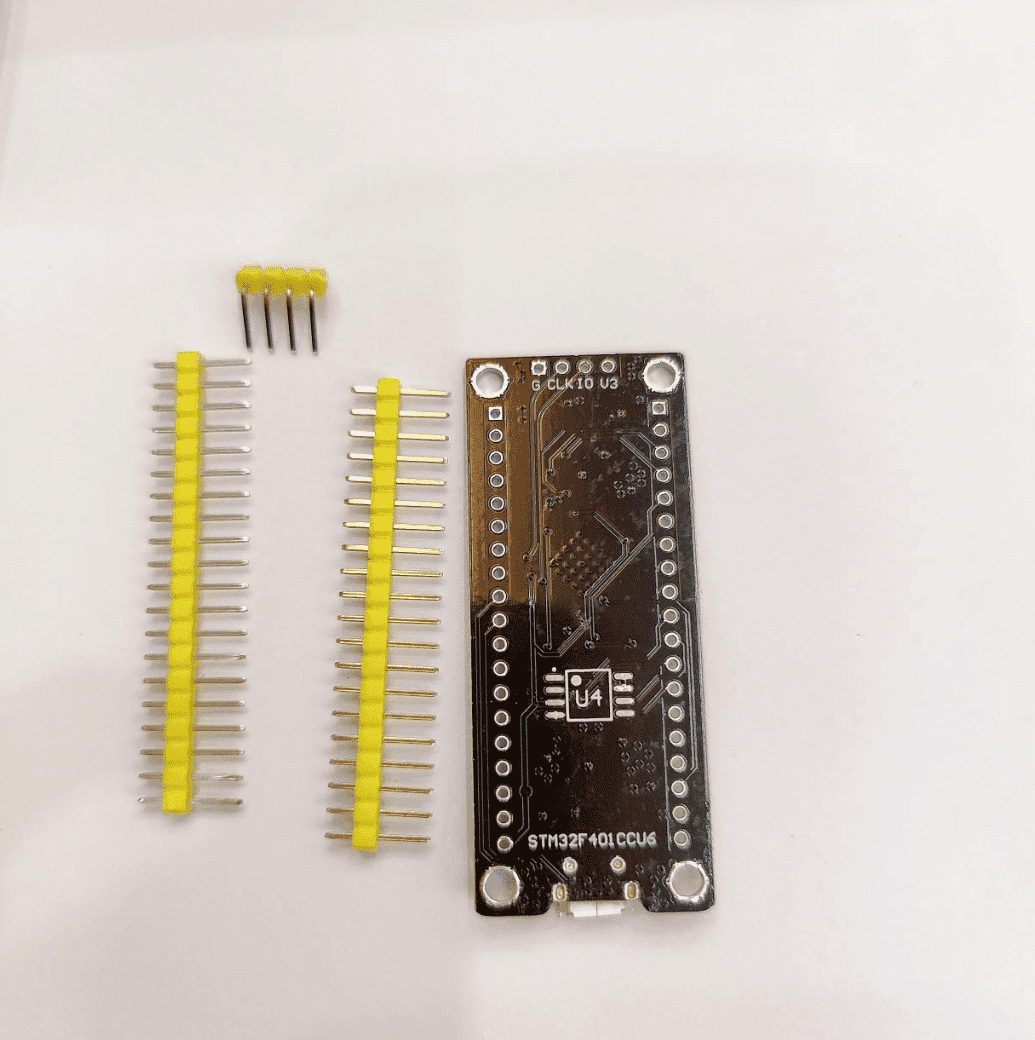

Contents:
- 1 x Black Pill Micro USB Development Board – STM32F411CEU6
