Description:

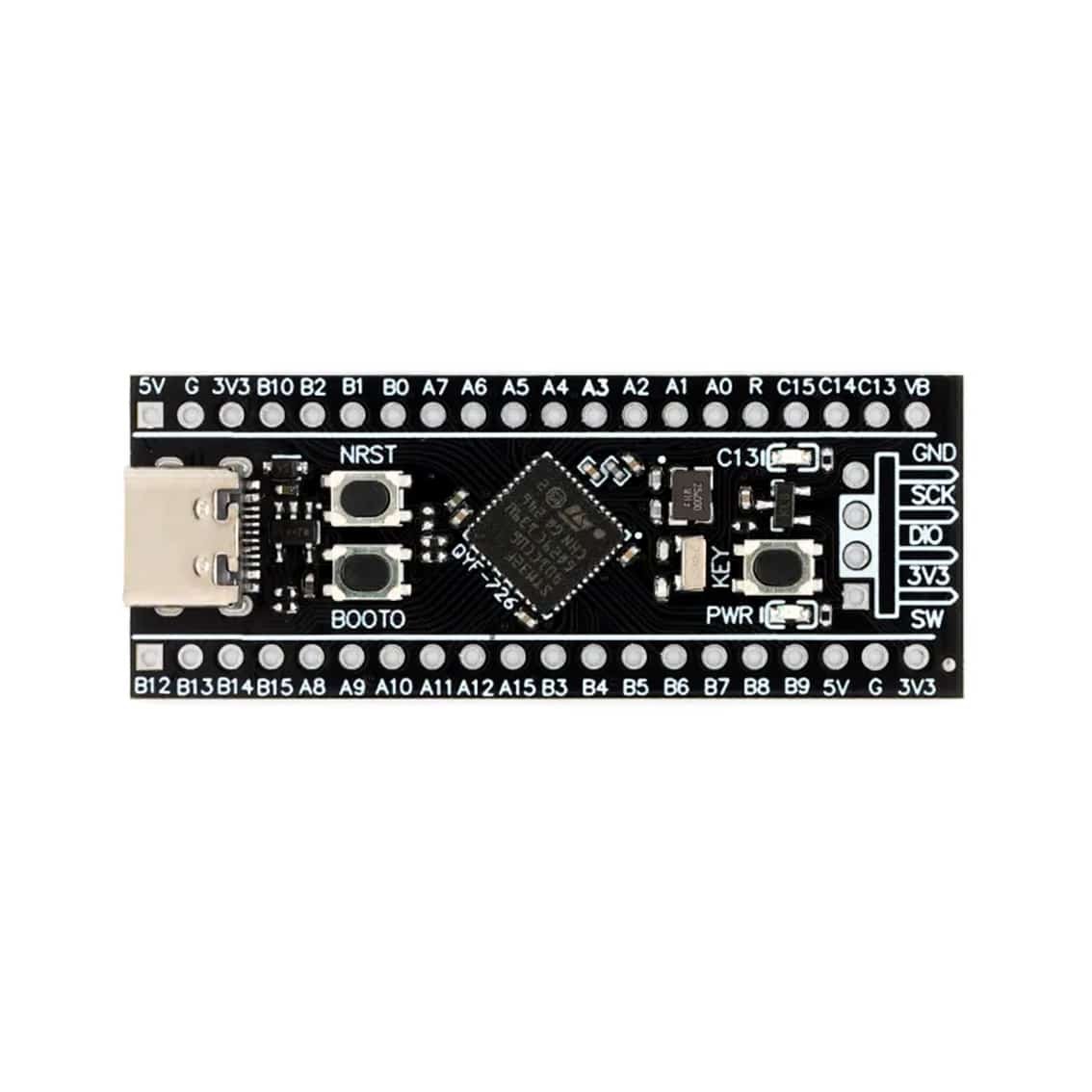

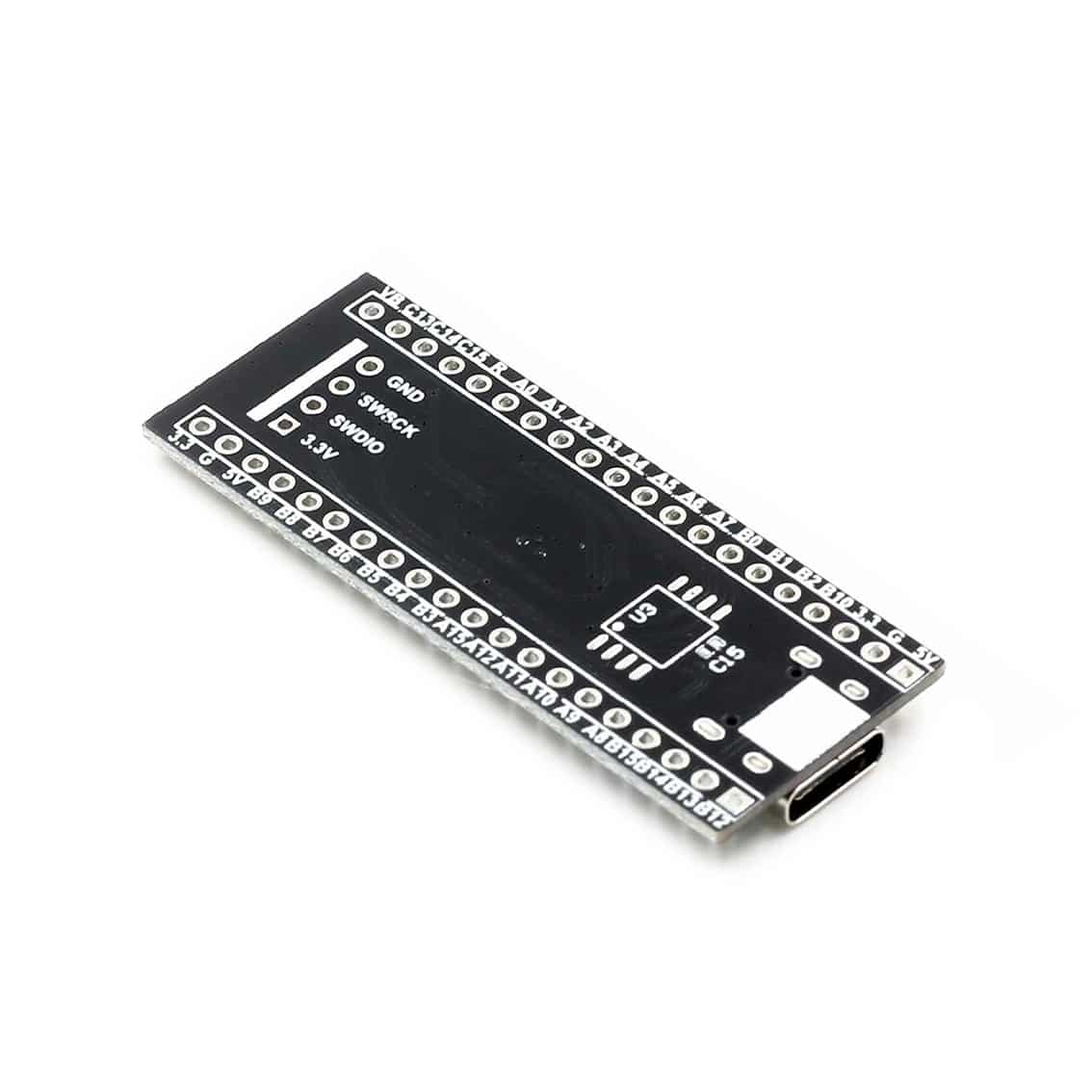

The Black Pill USB C Development Board featuring the STM32F401CCU6 microcontroller is an efficient and compact platform designed for embedded systems and IoT projects. This board leverages the power of the STM32F401CCU6 chip, which includes an ARM Cortex-M4 core operating at 84 MHz, 256 KB of flash memory, and 64 KB of SRAM. The board is equipped with a USB Type-C connector for power and communication, making it a versatile choice for modern development needs.
With its small form factor and comprehensive I/O options, the Black Pill is ideal for developers looking to integrate advanced features into their projects. It supports multiple programming environments, including STM32Cube, Arduino IDE, MicroPython, and CircuitPython, ensuring a wide range of compatibility and flexibility in development.
Specifications:
- Microcontroller: STM32F401CCU6
- Core: ARM Cortex-M4
- Clock Speed: 84 MHz
- Flash Memory: 256 KB
- SRAM: 64 KB
- USB: Type-C connector
- Voltage: 3.3V (LDO regulator), 5V USB input
- Dimensions: 53mm x 20mm x 5mm
- Weight: 7g
- Crystals: 4-26 MHz onboard
- Connectivity: UART, I2C, SPI, I2S
- Additional Features: Boot and Reset buttons, user-controllable LED on PC13, power LED
Features:
- High-performance STM32F401CCU6 microcontroller
- Compact and breadboard-friendly design
- USB Type-C for easy power and programming
- Support for multiple development environments: STM32Cube, Arduino, MicroPython, CircuitPython
- Multiple I/O options for versatile applications
- Onboard crystals for precise timing
- Suitable for advanced users and various project types
Contents:

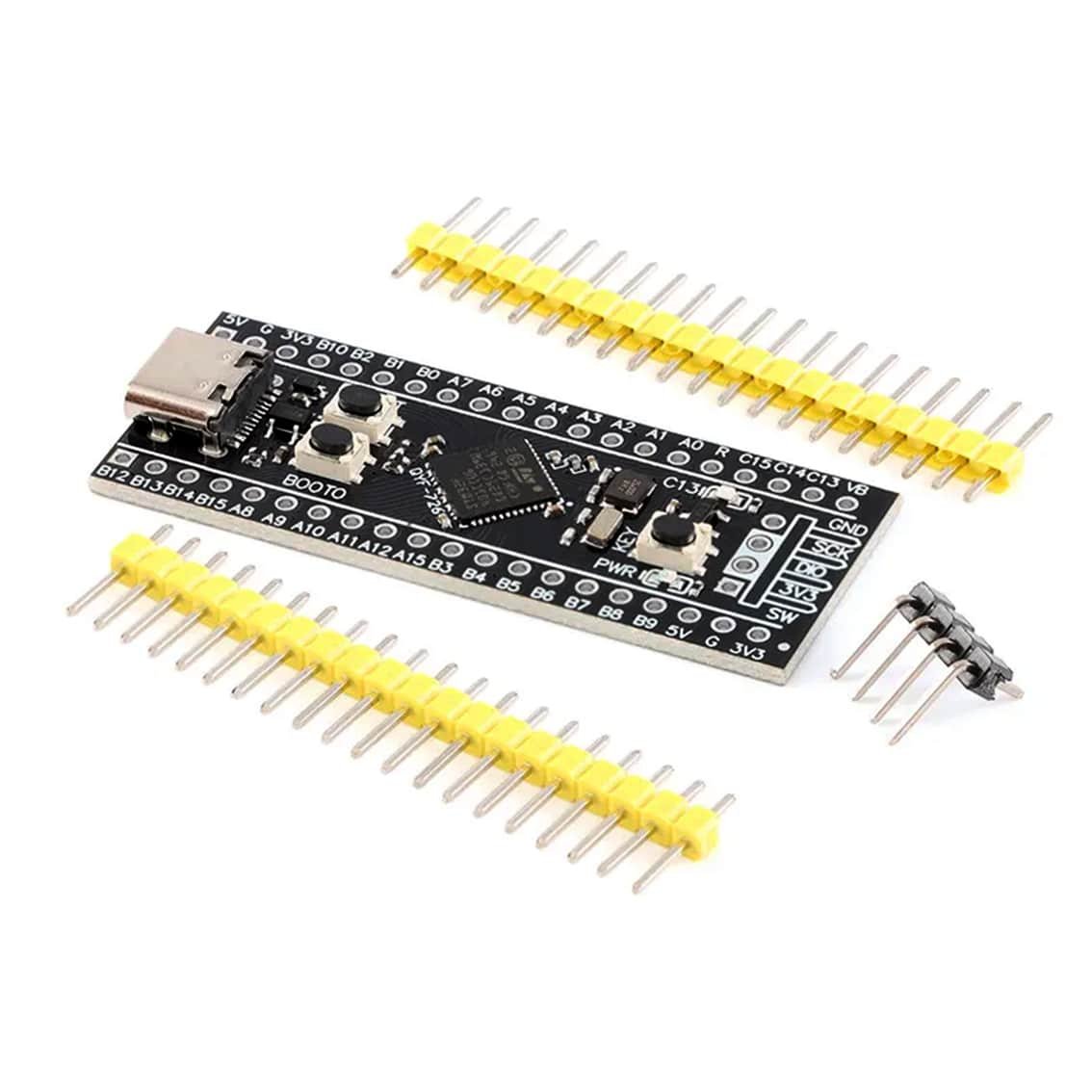

- 1 x Black Pill USB C Development Board – STM32F401CCU6
