Description:
The BMP180 / GY-68 Temperature and Pressure Sensor is a high-precision digital sensor designed for accurate measurement of atmospheric pressure and temperature. Utilizing piezo-resistive MEMS technology, the BMP180 offers a pressure measurement range from 300 hPa to 1100 hPa, corresponding to altitudes between -500 meters to 9000 meters relative to sea level. It provides temperature readings with an accuracy of ±2°C over a range of -40°C to +85°C. The sensor communicates via an I2C interface, making it compatible with various microcontroller platforms, including Arduino and Raspberry Pi.

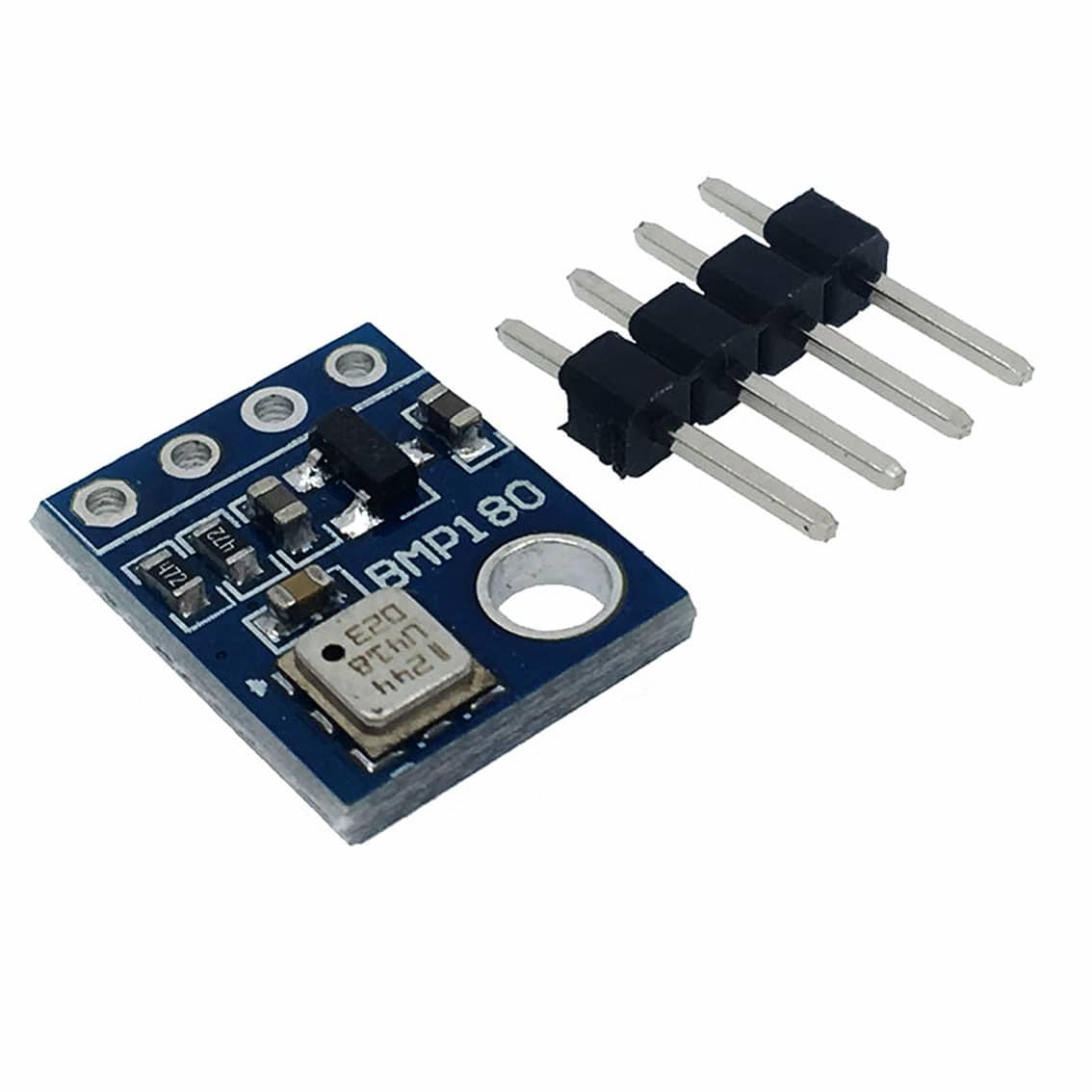

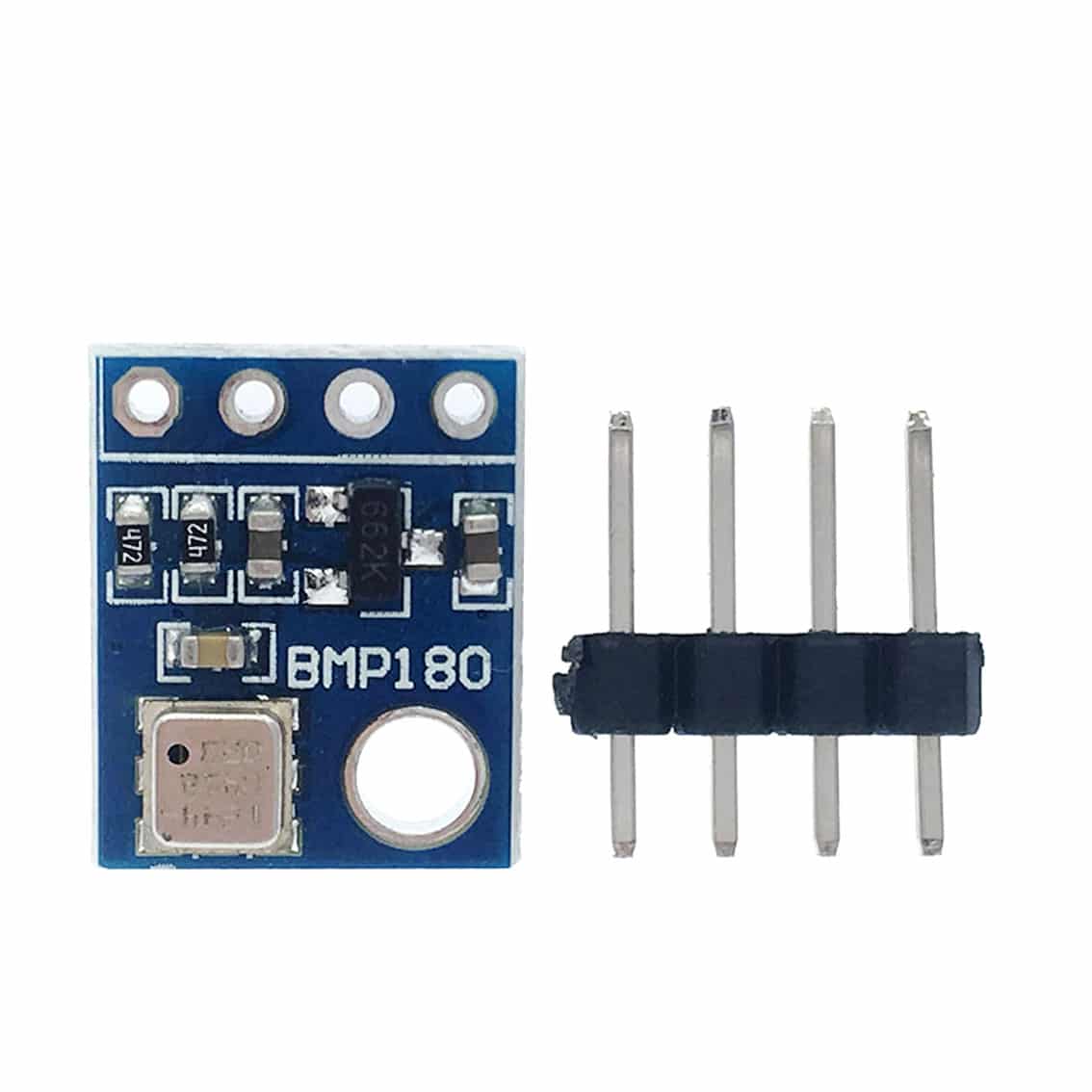

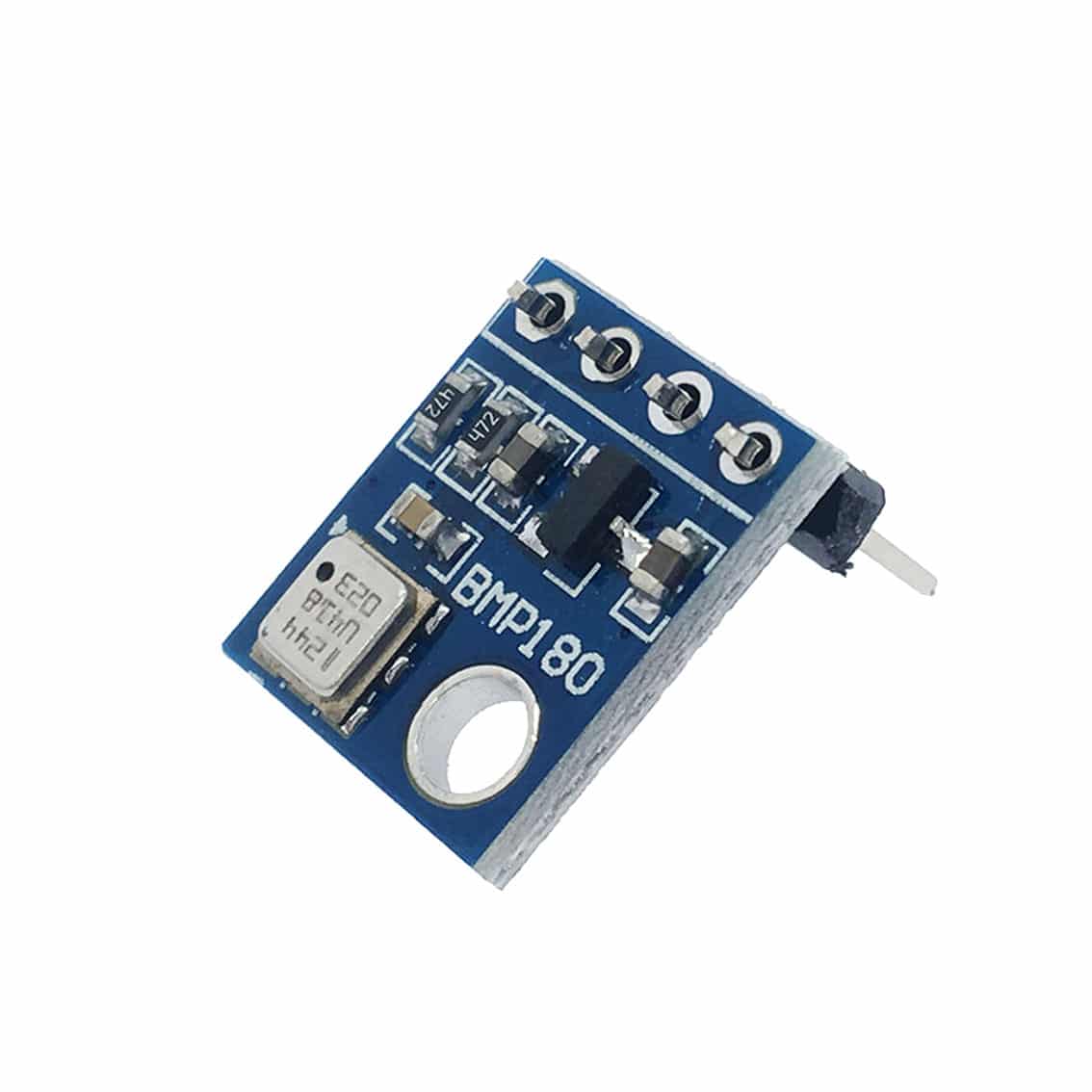

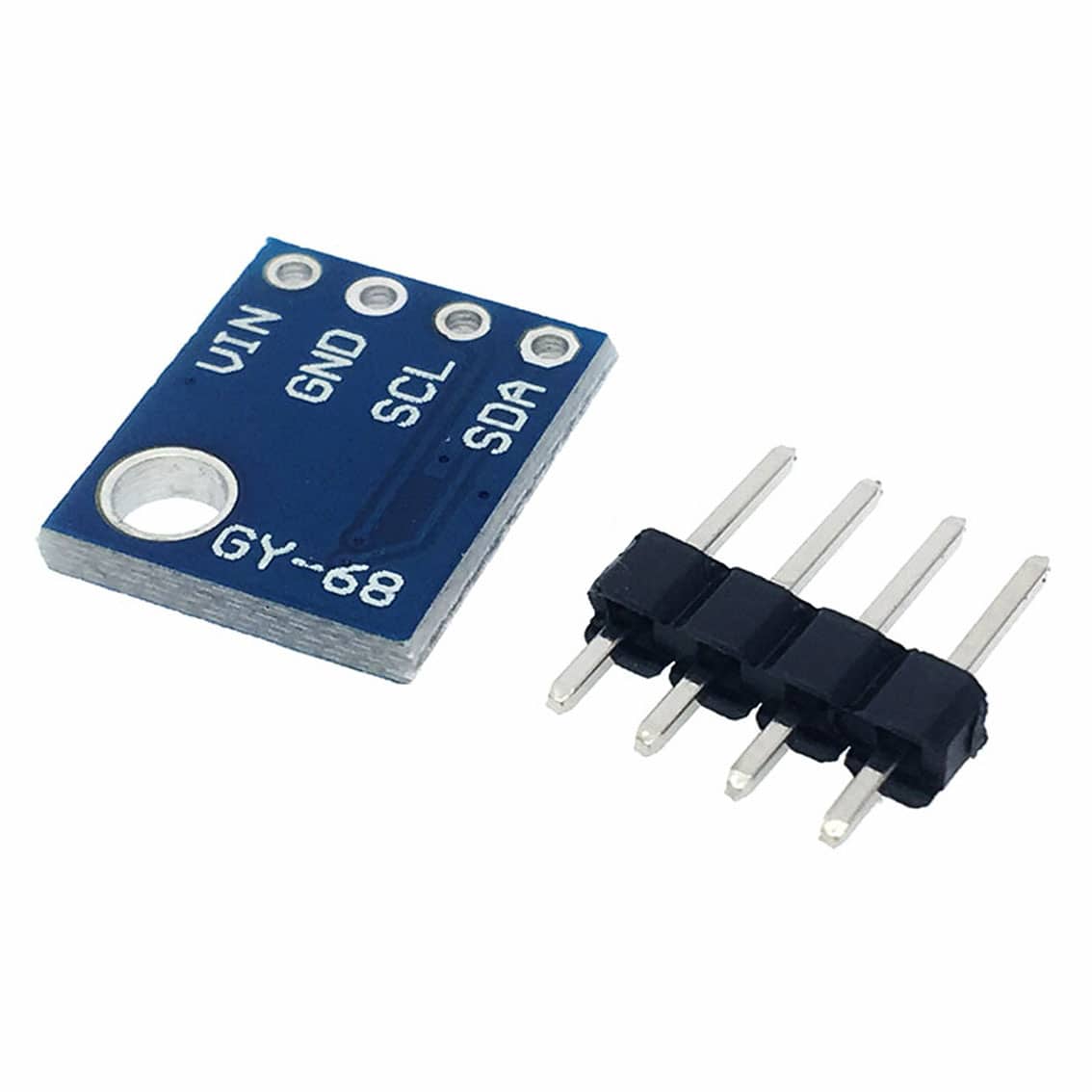

The GY-68 module integrates the BMP180 sensor into a compact breakout board, facilitating easy integration into projects. It operates with a supply voltage between 1.8V and 3.6V, with low power consumption of approximately 5µA at one sample per second in standard mode. The module’s small footprint and high accuracy make it ideal for applications such as weather forecasting, altitude measurement, and GPS enhancement.
Specifications:
- Pressure Range: 300 hPa to 1100 hPa
- Pressure Accuracy: ±0.12 hPa
- Temperature Range: -40°C to +85°C
- Temperature Accuracy: ±2°C
- Supply Voltage: 1.8V to 3.6V
- Interface: I2C
- Power Consumption: 5µA at 1 sample per second in standard mode
- Module Dimensions: 13mm x 10mm x 5mm
Features:
- High-precision pressure and temperature measurement
- Compact design for easy integration
- Low power consumption suitable for battery-powered applications
- Compatible with various microcontroller platforms via I2C interface
- Ideal for weather forecasting, altitude measurement, and GPS enhancement
Contents:
- 1 x BMP180 / GY-68 Temperature and Pressure Sensor Module
