Description:
The BMP280 Module is a high-precision barometric pressure and temperature sensor specifically designed for integration into various electronic projects and systems. It provides reliable pressure and temperature measurements and features a 6-pin interface for simple connectivity. The module supports both I²C and SPI communication protocols, ensuring compatibility with a wide range of microcontrollers, including Arduino and Raspberry Pi.

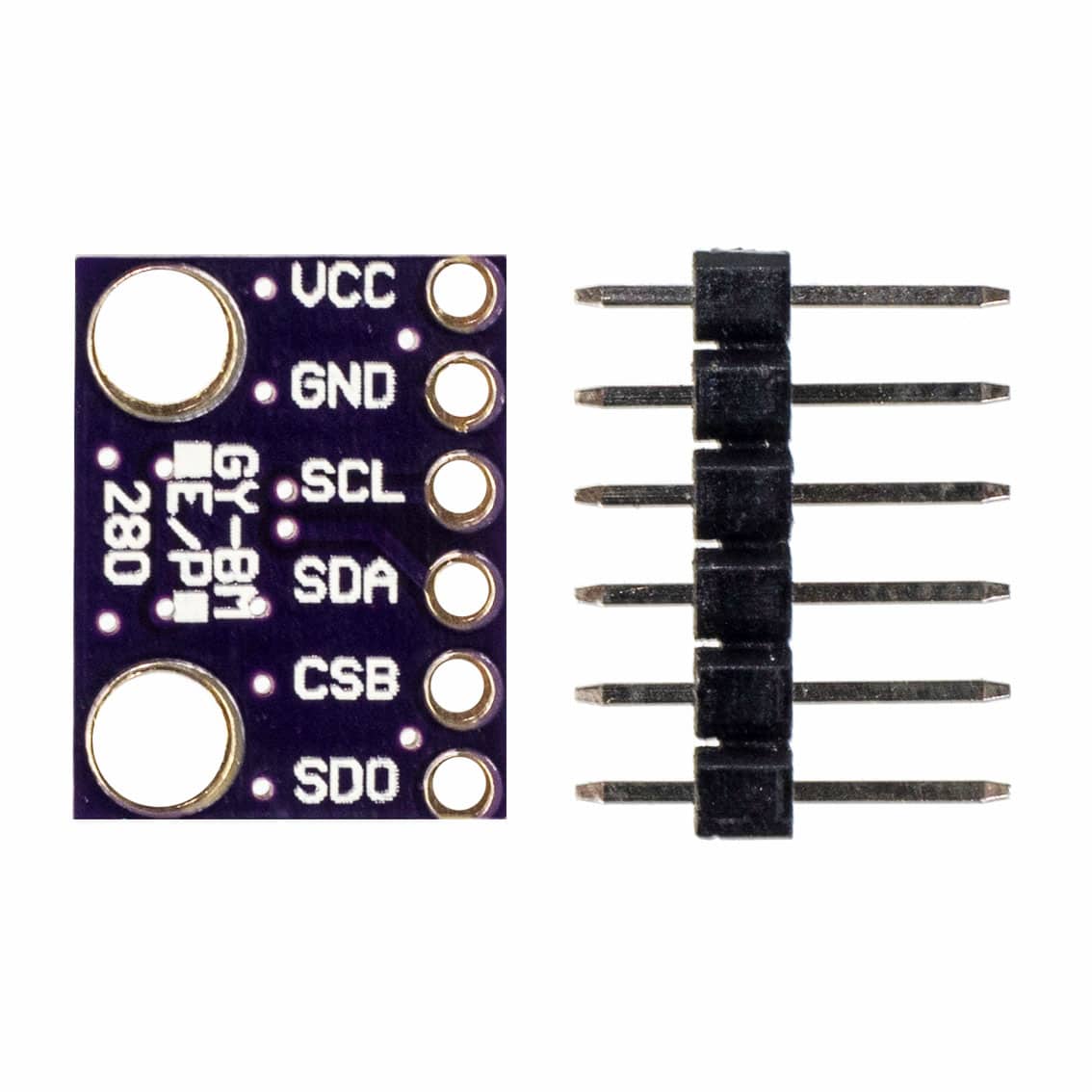

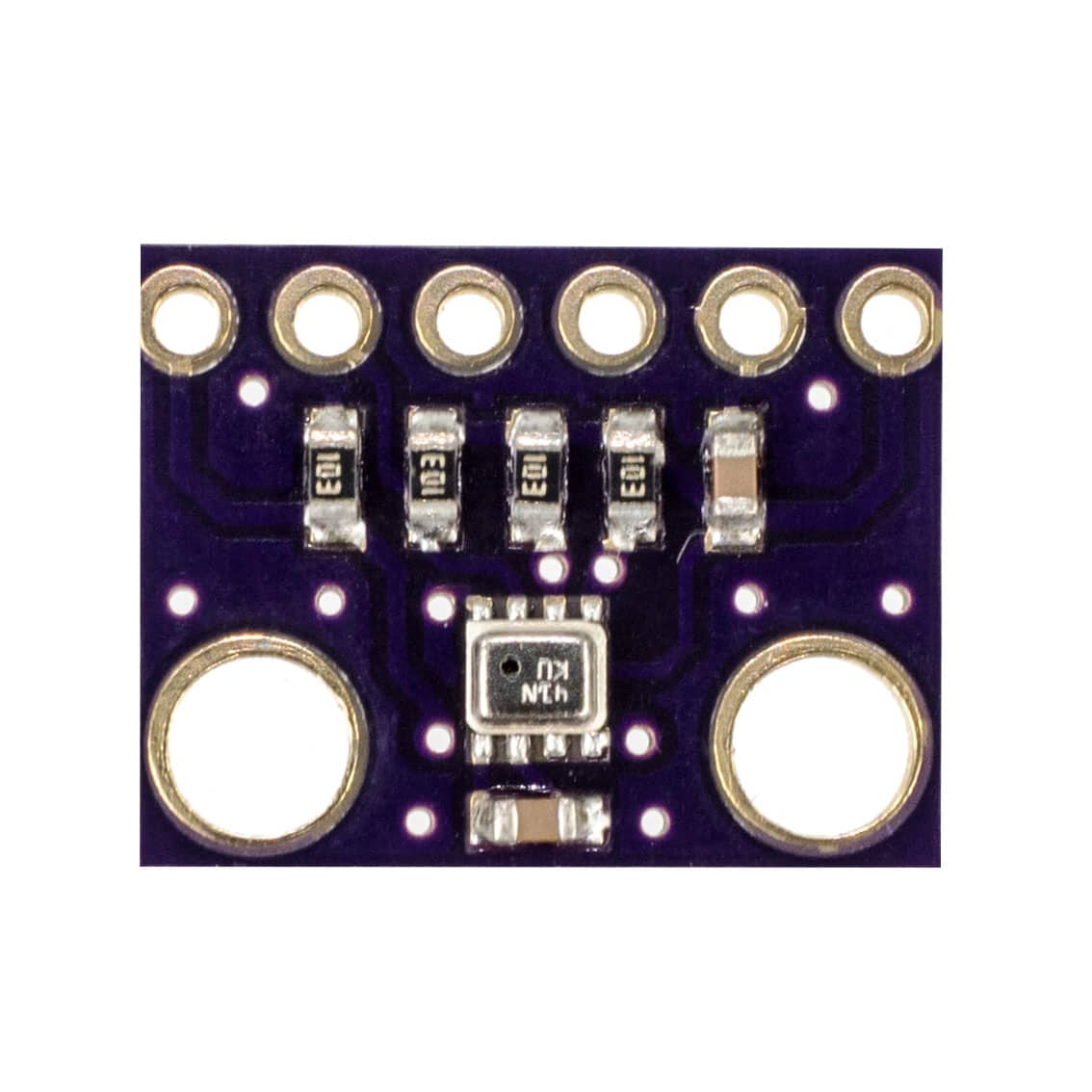

Equipped with the BMP280 sensor, this module delivers excellent accuracy and long-term stability, making it ideal for applications such as weather monitoring, altitude measurement, and environmental sensing. Its compact design and onboard 6-pin connector simplify integration into space-constrained or portable devices.
Specifications:
- Pressure Measurement Range: 300 hPa to 1100 hPa
- Pressure Accuracy: ±0.12 hPa
- Temperature Measurement Range: -40°C to +85°C
- Temperature Accuracy: ±1.0°C
- Supply Voltage: 1.8V to 3.6V
- Current Consumption: 2.7 µA at 1 Hz
- Communication Interfaces: I²C (2.8V to 3.6V) or SPI (10 MHz max)
- Connector Type: 6-pin header
- Dimensions: Approximately 15mm x 12mm
Features:
- High-precision barometric pressure and temperature sensor
- Supports both I²C and SPI communication protocols
- Compact module with 6-pin interface for easy integration
- Reliable performance with high EMC robustness
- Ideal for environmental sensing, weather stations, and altitude measurements
Contents:
- 1 x BMP280 Barometric Pressure and Temperature Sensor Module (6-pin)
