Description:

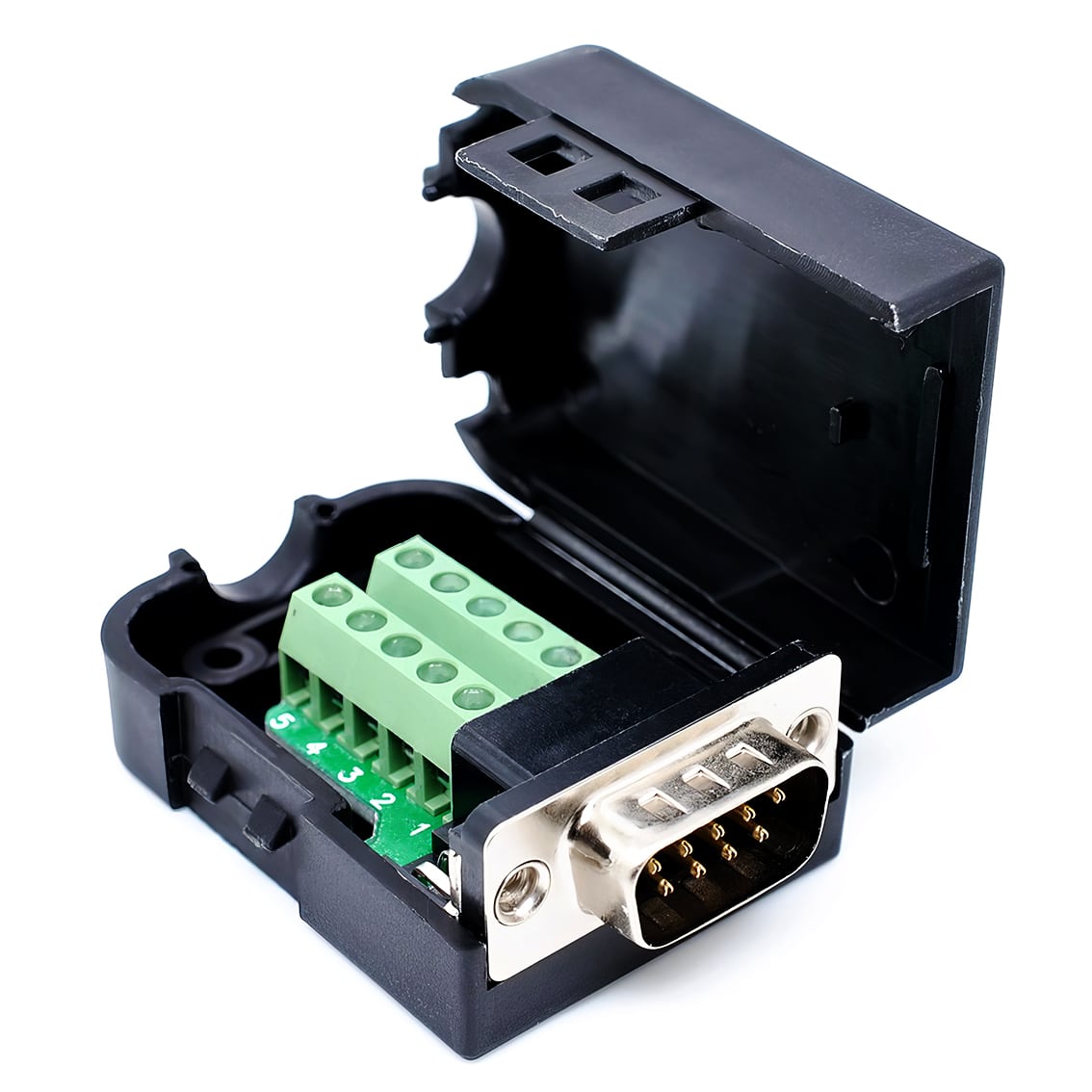

The DB9 Male 9Pin to Screw Terminal Connector Module is an essential tool for simplifying connections in serial communication projects. This module allows for easy connection of DB9 cables to a screw terminal block, making it ideal for prototyping, testing, and debugging in various electronic applications. The robust design ensures secure and reliable connections, making it a preferred choice for engineers and technicians.
This connector module is equipped with a high-quality, all-copper DB9 socket that is anti-oxidation, providing better contact and durability. It supports wire sizes ranging from 22 to 14 AWG and features clearly labelled terminal blocks for easy identification and connection. The compact design with a terminal pitch of 3.96mm ensures it fits well in various setups, including industrial and laboratory environments.
Specifications:
- Connector Type: DB9 Male
- Terminal Block: 9-position screw terminal block
- Material: All-copper DB9 socket, plastic terminal block
- Wire Size Range: 22-14 AWG
- Terminal Pitch: 3.96mm
- Screw Hole Diameter: 2mm
- Dimensions: 48 x 34 x 20 mm
Features:
- Brings all 9 pins of a DB9 connector to screw terminal blocks
- Clear labeling for easy identification and connection
- Anti-oxidation copper construction for improved contact
- Compatible with RS232 and RS485 interfaces
- Ideal for communication debugging and prototyping
- Compact and easy to install
Contents:

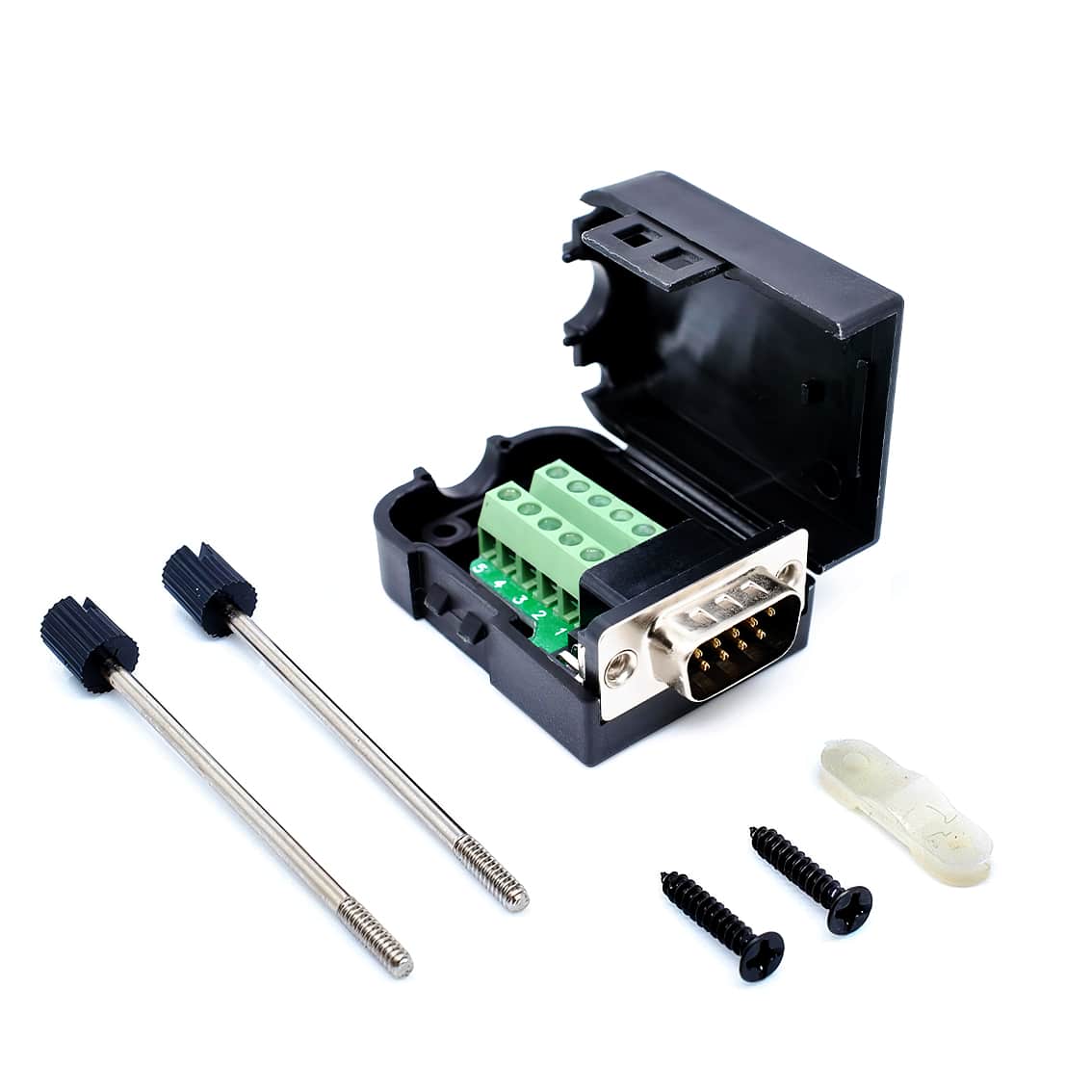

- 1 x DB9 Male 9Pin to Screw Terminal Connector Module
