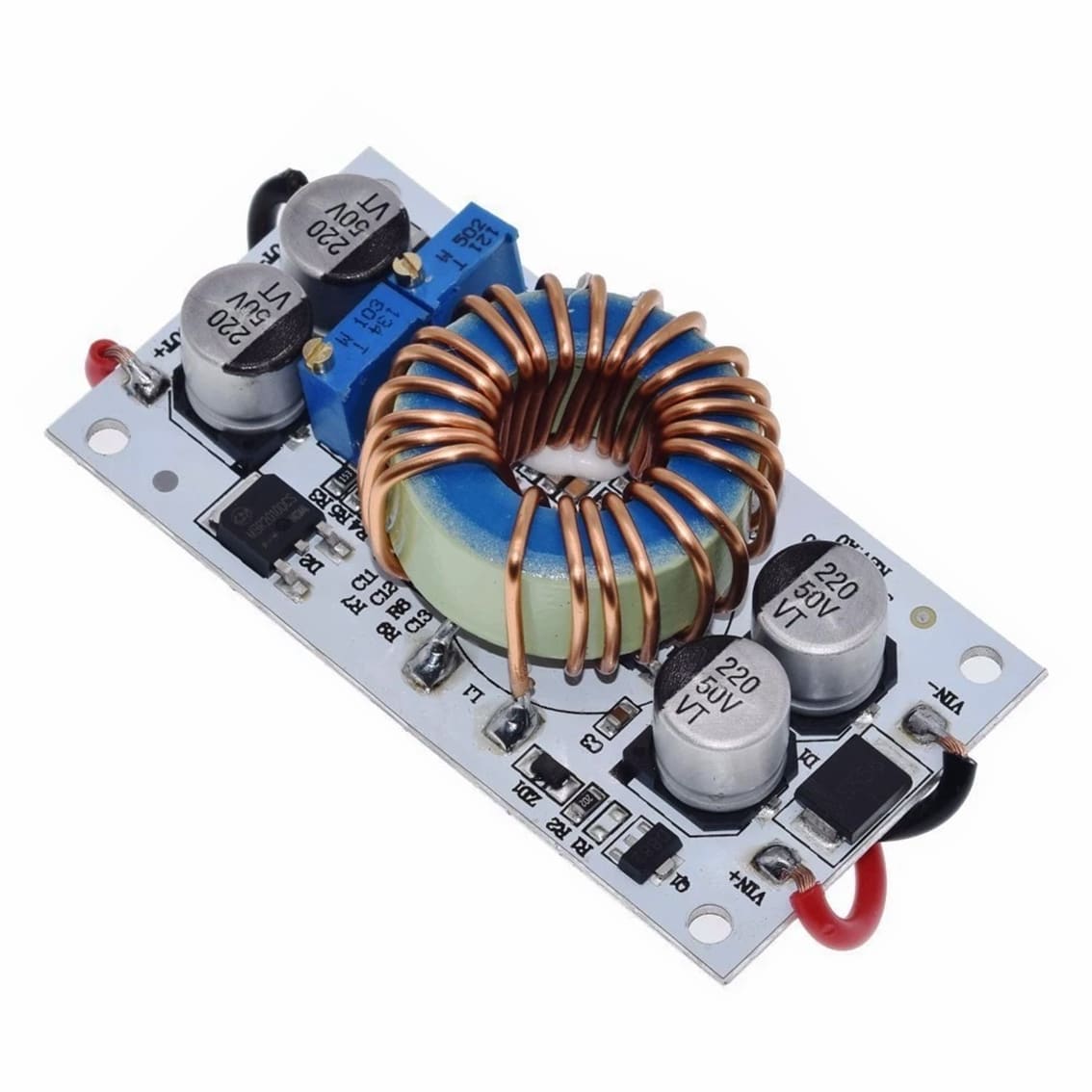

DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 2

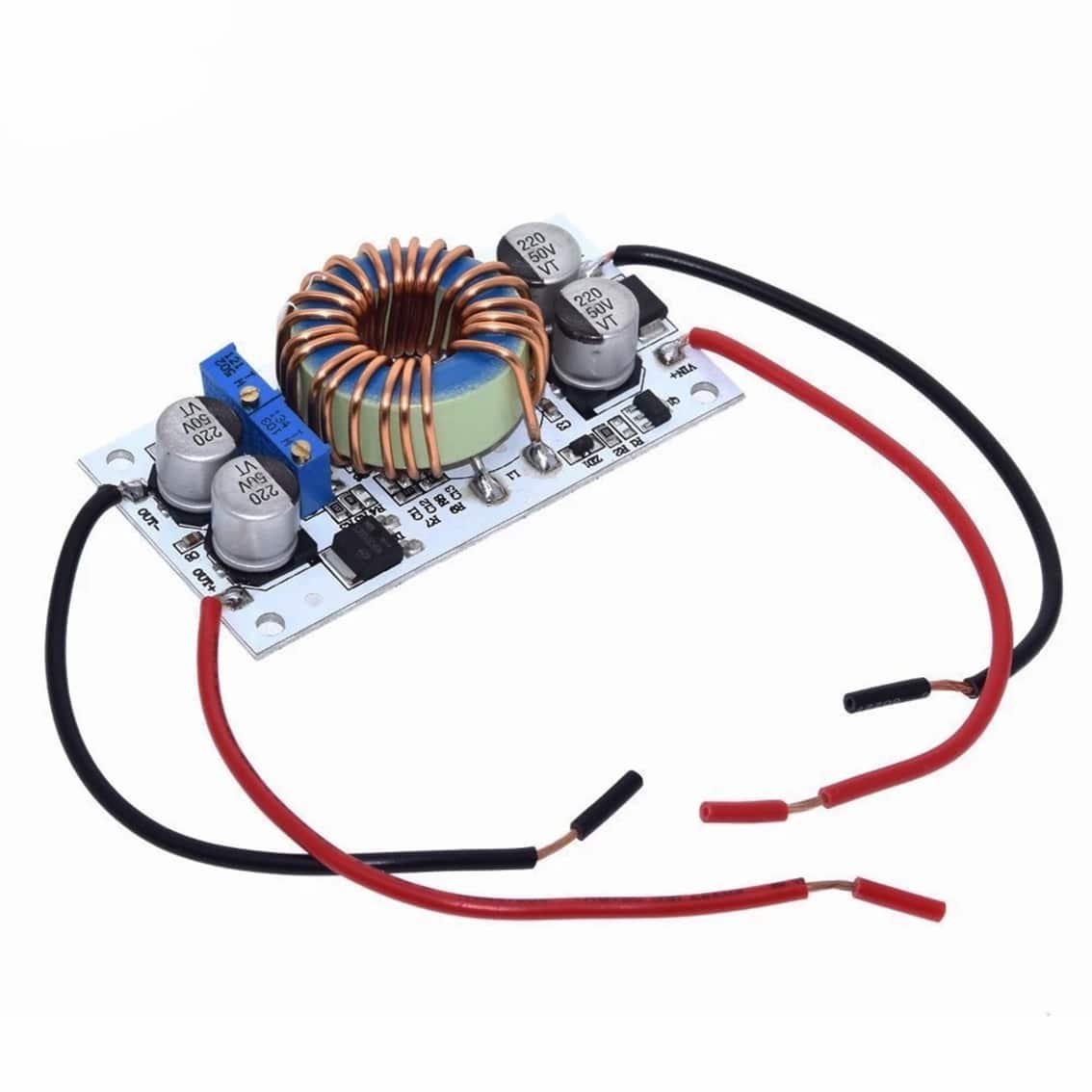

DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 3
42 people have recently viewed this product!

DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module

0 reviews

The DC-DC 10A 250W Adjustable Step-Up Constant Current LED Driver Power Supply Module efficiently boosts DC input voltages (8.5V-48V) to adjustable output levels (10V-50V), delivering up to 10A current. It features over-current and reverse polarity protection, making it ideal for applications like battery charging and LED driving.

  • High-efficiency boost converter with up to 96% efficiency.
  • Adjustable output voltage (10V-50V) and current (0.2A-8A) settings.
  • Over-current and reverse polarity protection ensure safe operation.
  • Compact design with mounting holes for easy installation.
  • Wide input voltage range (8.5V-48V) suitable for various applications.

Original price was: $20.95.Current price is: $19.95.

Order Within –

FOR SAME DAY SHIPPING!

Availability: 24 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 4
DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 5
DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 6
DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 7
DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 8
DC-DC 10A 250W Adjustable Step Up Constant Current LED Driver Power Supply Module PHI1002940 Phipps Electronics 9
SKU: PHI1002940

You May Also Like...

Description:

The DC-DC 10A 250W Adjustable Step-Up Constant Current LED Driver Power Supply Module is a high-efficiency, non-isolated boost converter designed to elevate DC input voltages to higher levels, making it ideal for applications such as battery charging, LED driving, and power supply for electronic devices. With an input voltage range of 8.5V to 48V DC, it can output voltages adjustable between 10V and 50V DC, providing flexibility for various power requirements. The module supports a maximum output current of 10A, with a constant current range adjustable from 0.2A to 8A, ensuring precise control over the power delivered to connected loads.

Equipped with over-current and input reverse polarity protection, the module safeguards both the device and connected components from potential damage. Its operating frequency of 150kHz and conversion efficiency of up to 96% contribute to reliable and energy-efficient performance. The compact design, featuring four 3mm screw holes, facilitates easy installation in various project setups. Operating effectively within a temperature range of -40°C to 85°C, this module is suitable for a wide array of environments and applications.

Specifications:

  • Module Type: Non-isolated boost converter (BOOST)
  • Input Voltage: 8.5V to 48V DC
  • Maximum Input Current: 10A
  • Quiescent Current: 10mA
  • Output Voltage: 10V to 50V DC (adjustable)
  • Constant Current Range: 0.2A to 8A
  • Operating Temperature: -40°C to 85°C
  • Operating Frequency: 150kHz
  • Conversion Efficiency: Up to 96%
  • Over-Current Protection: Yes
  • Input Reverse Polarity Protection: Yes
  • Mounting: Four 3mm screw holes
  • Dimensions: 70mm x 36mm x 13mm
  • Weight: 50g

Features:

  • High-efficiency boost conversion with up to 96% efficiency
  • Adjustable output voltage and constant current settings
  • Over-current and reverse polarity protection for enhanced safety
  • Compact design with mounting holes for easy installation
  • Wide operating temperature range suitable for various environments

Contents:

  • 1 x DC-DC 10A 250W Adjustable Step-Up Constant Current LED Driver Power Supply Module
Weight 0.064 kg
Dimensions 130 × 20 × 90 mm
Brand

Type

Input Voltage

Output Voltage

Maximum Output Current (Continuous)

Maximum Output Current (Peak)

Maximum Output Power

Efficiency

Colour
