Description:

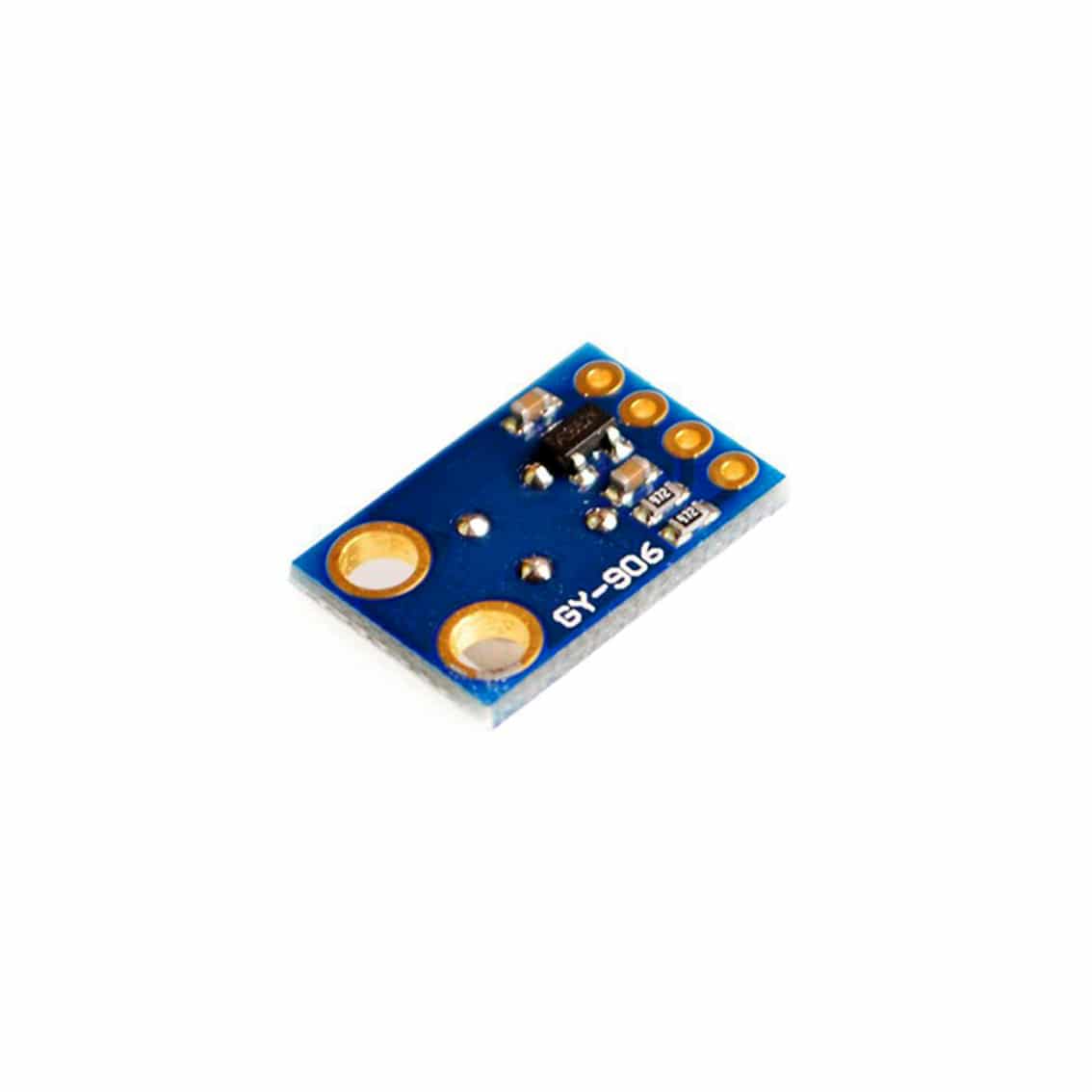

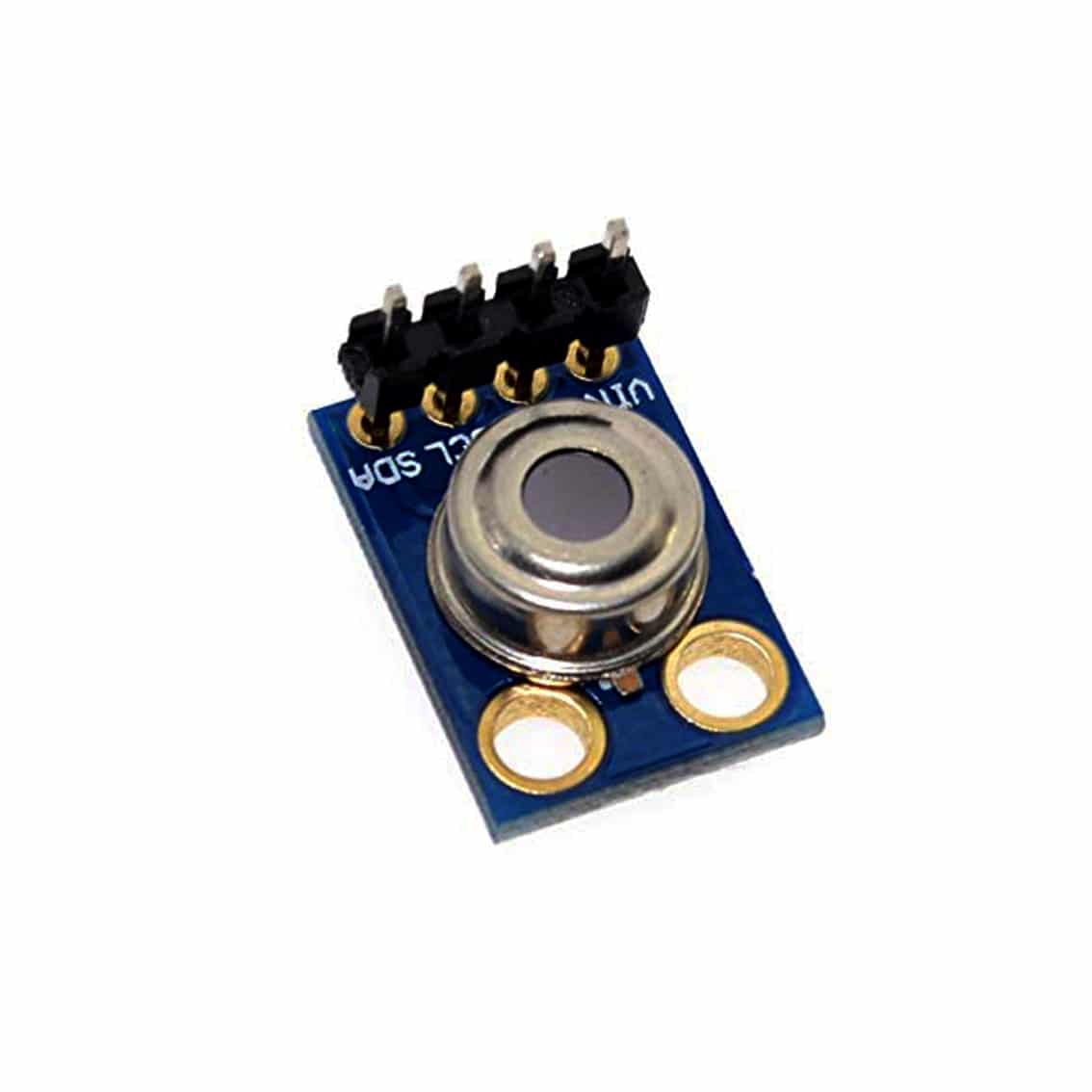

The GY-906 Non-Contact Infrared Temperature Sensor Module is a high-precision device designed for accurate temperature measurements without physical contact. Based on the MLX90614 sensor, it measures temperatures ranging from -70°C to +380°C with a typical accuracy of ±0.5°C. This capability makes it ideal for applications such as moving object temperature monitoring, HVAC systems, and industrial process control. The module communicates via an I2C interface, ensuring seamless integration with microcontrollers and development platforms.
Equipped with a built-in optical filter, the GY-906 minimizes the impact of visible and near-infrared light, enhancing measurement reliability. Its compact design and low power consumption make it suitable for battery-operated devices and space-constrained projects. The sensor’s 90° field of view allows for flexible positioning, enabling accurate temperature readings from various angles and distances.
Specifications:
- Temperature Measurement Range: -70°C to +380°C
- Accuracy: ±0.5°C (typical)
- Resolution: 0.02°C
- Field of View (FOV): 90°
- Communication Interface: I2C
- Operating Voltage: 3.3V or 5V
- Current Consumption: 2mA
- Operating Temperature: -40°C to +125°C
- Dimensions: 17mm x 11mm
Features:
- Non-contact temperature measurement
- High precision and accuracy
- Wide temperature measurement range
- Built-in optical filter for enhanced reliability
- Compact design suitable for various applications
Contents:

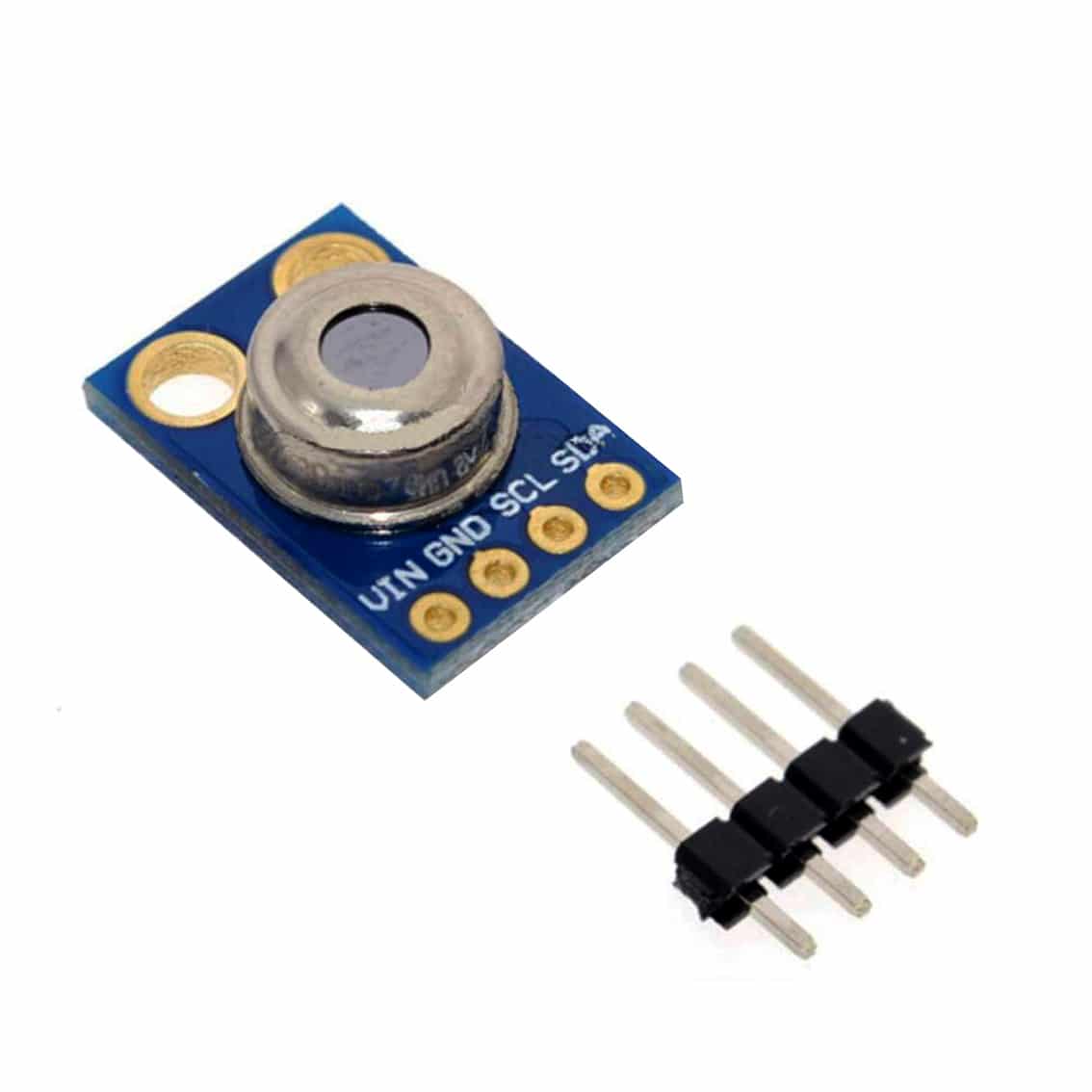

- 1 x GY-906 Non-Contact Infrared Temperature Sensor Module
- 1 x 4-pin male header
