Description:

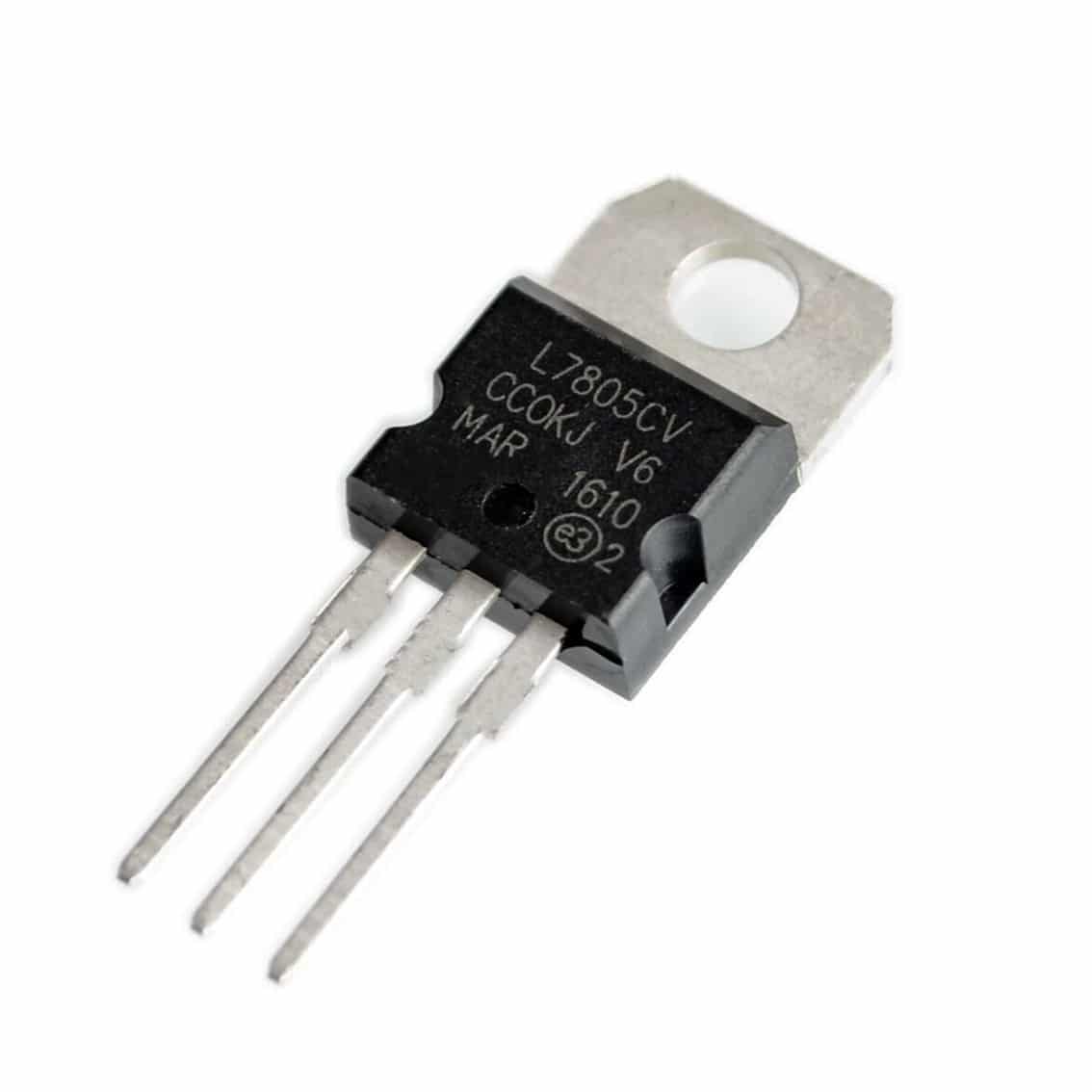

The L7805CV is a three-terminal positive voltage regulator that provides a stable 5V output with up to 1.5A of current. Encased in a TO-220 package, it is ideal for various applications requiring a reliable 5V power supply. The regulator features internal current limiting, thermal shutdown, and safe area protection, ensuring robust performance and longevity in electronic circuits. Its design simplifies power management tasks, making it suitable for use in consumer electronics, industrial equipment, and other devices requiring regulated 5V power.
With an input voltage range of 7V to 35V, the L7805CV efficiently maintains a consistent 5V output. The device’s internal thermal overload protection and short-circuit current limiting enhance its reliability, safeguarding connected components from potential damage. Its ease of use and dependable performance make it a preferred choice for engineers and hobbyists alike.
Specifications:
- Output Voltage: 5V ±2%
- Output Current: Up to 1.5A
- Input Voltage Range: 7V to 35V
- Dropout Voltage: 2V at 1A
- Quiescent Current: 6mA
- Operating Temperature Range: 0°C to +125°C
- Package: TO-220
- Protection Features: Internal thermal overload protection, short-circuit current limiting
Features:
- Fixed 5V output voltage with ±2% tolerance
- Delivers up to 1.5A output current
- Internal thermal overload and short-circuit protection
- Compact TO-220 package for efficient heat dissipation
- Requires minimal external components
Contents:
- 10 x L7805CV 5V 1.5A Voltage Regulators (TO-220 package)
