Description:

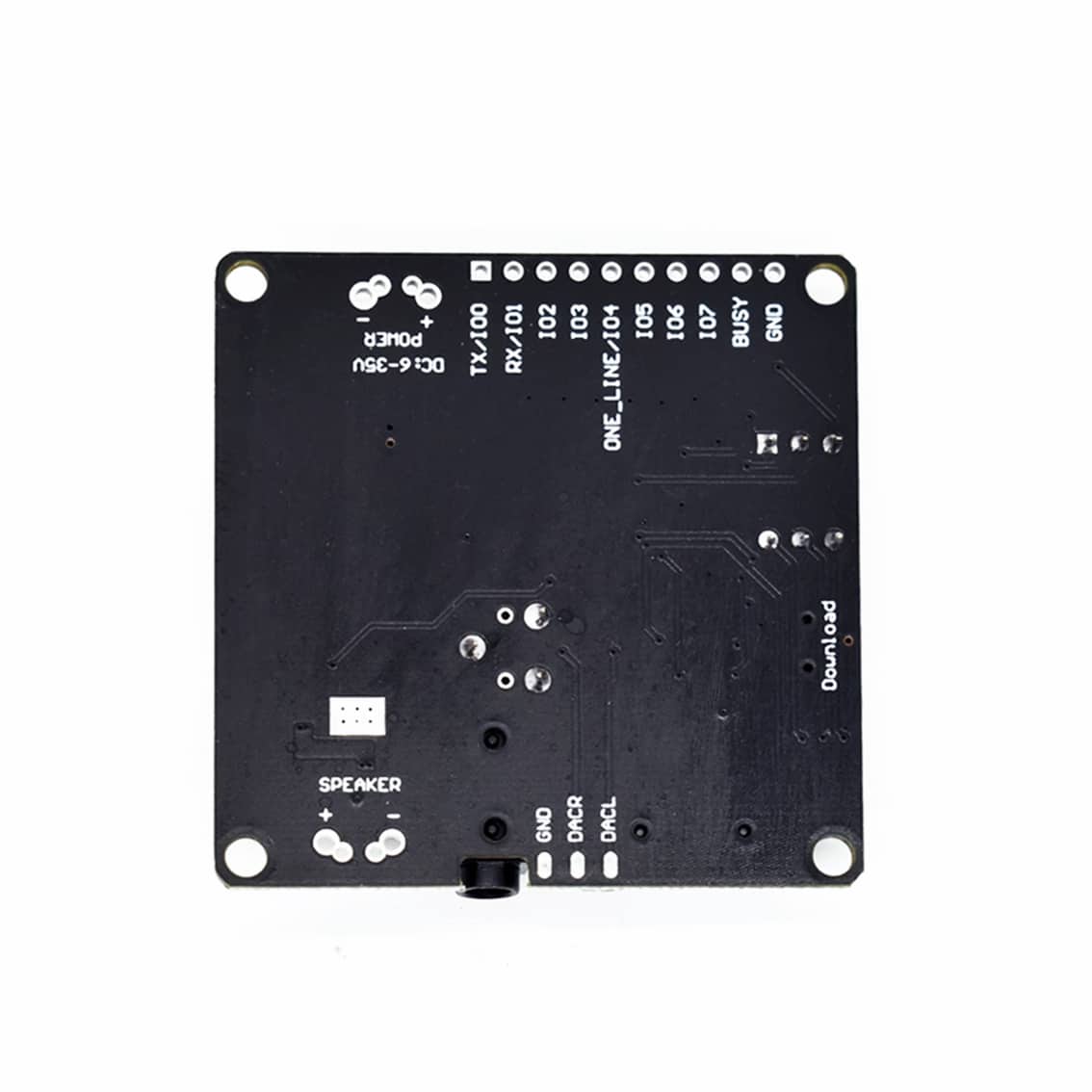

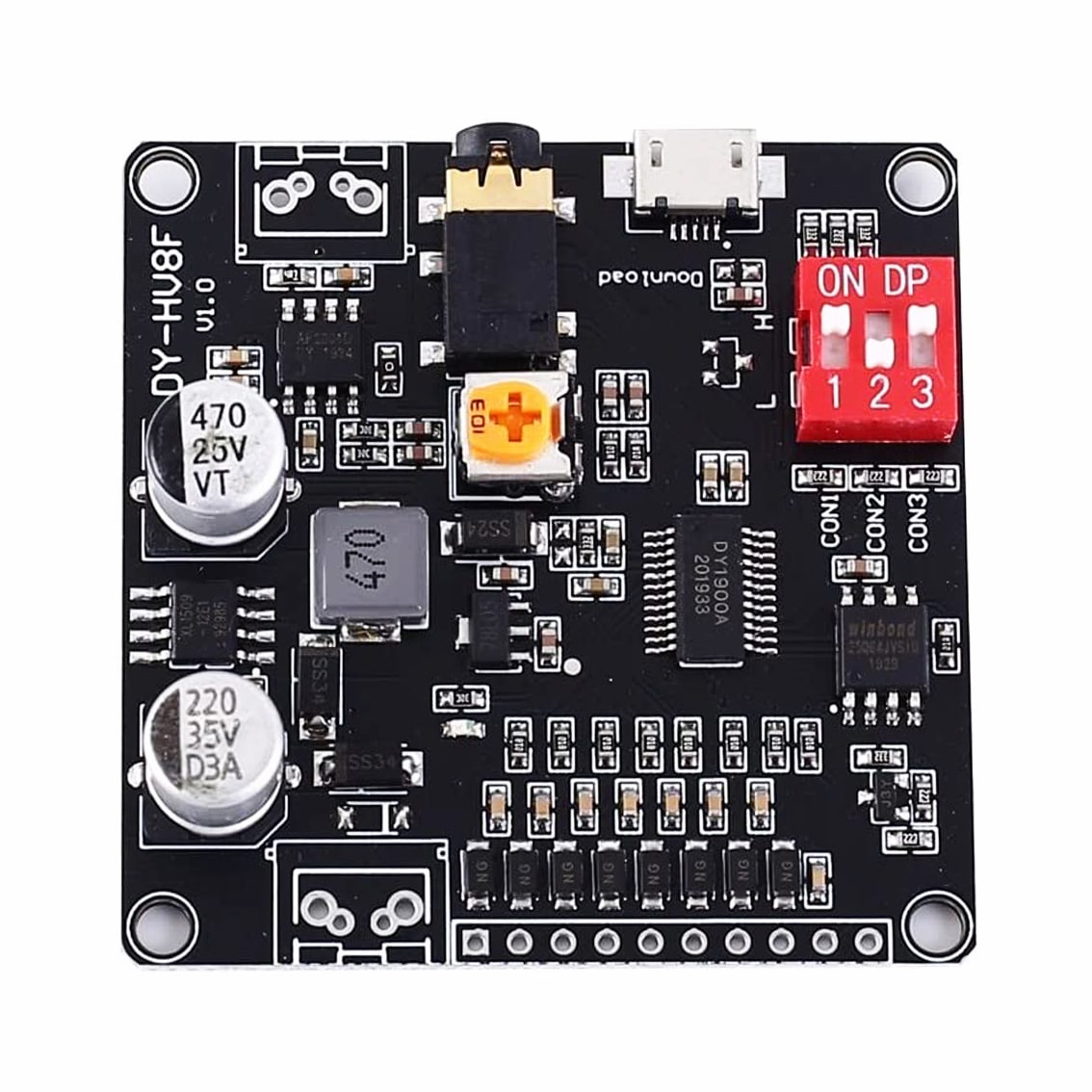

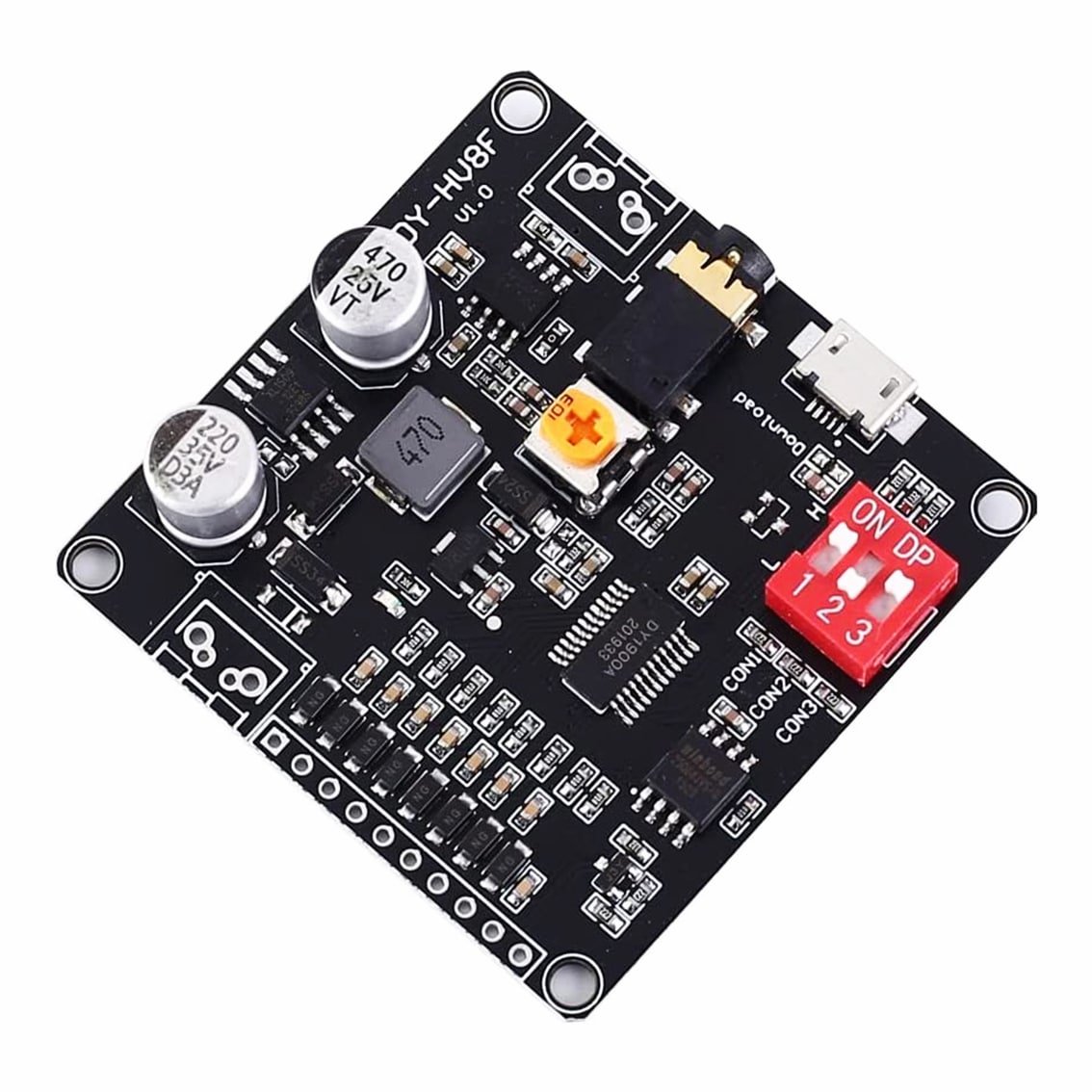

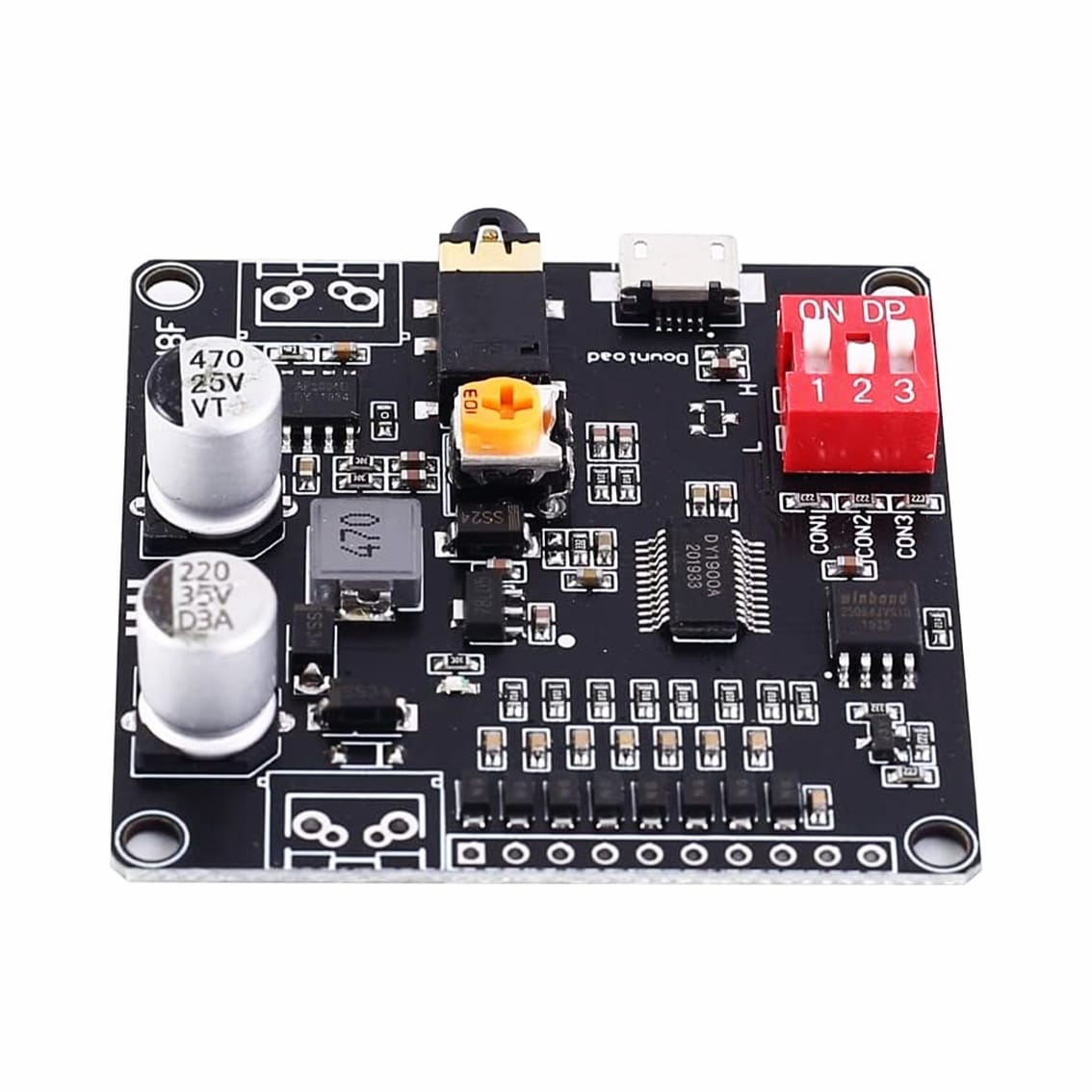

The MP3 Playback Audio Module with Amplified Output – DY-HV83 is an intelligent voice playback solution designed for seamless integration into various audio applications. It supports MP3 and WAV decoding formats, providing flexibility for different audio requirements. The module features an onboard 20W Class D power amplifier, enabling direct connection to speakers without the need for external amplification. With 8MB of built-in flash memory, it allows for convenient storage of audio files, which can be easily updated via a direct USB connection to a computer.
The DY-HV83 offers multiple control interfaces, including IO segment trigger, UART serial port control, and ONE_line single bus serial port control, facilitating versatile integration with various systems. Its wide operating voltage range of 6V to 35V DC ensures compatibility with different power sources. The module’s compact design and comprehensive features make it ideal for applications such as public announcements, interactive exhibits, and automated voice prompts.
Specifications:
- Audio Formats Supported: MP3, WAV
- Amplifier Output: 20W Class D
- Flash Memory: 8MB
- Control Modes: IO segment trigger, UART serial port, ONE_line single bus serial port
- Operating Voltage: 6V to 35V DC
- Signal-to-Noise Ratio (SNR): 85 dB
- Dimensions: 50mm x 50mm
Features:
- Supports MP3 and WAV audio formats
- Onboard 20W Class D amplifier for direct speaker connection
- 8MB internal flash memory for audio file storage
- USB connectivity for easy audio file updates
- Multiple control interfaces for flexible integration
Contents:
- 1 x MP3 Playback Audio Module with Amplified Output – DY-HV83
