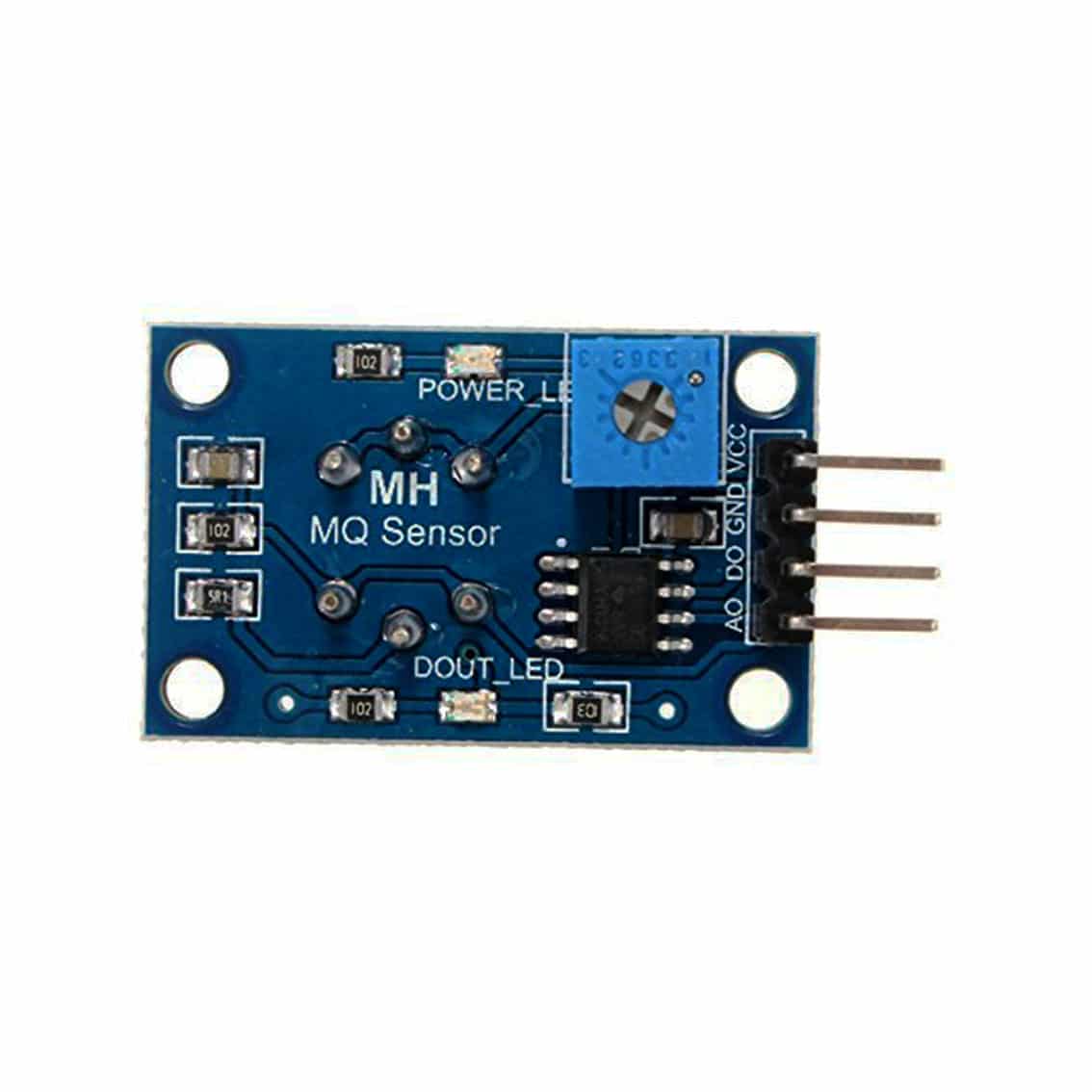

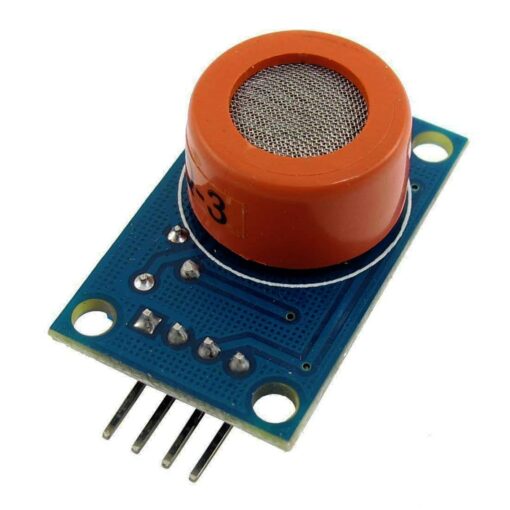

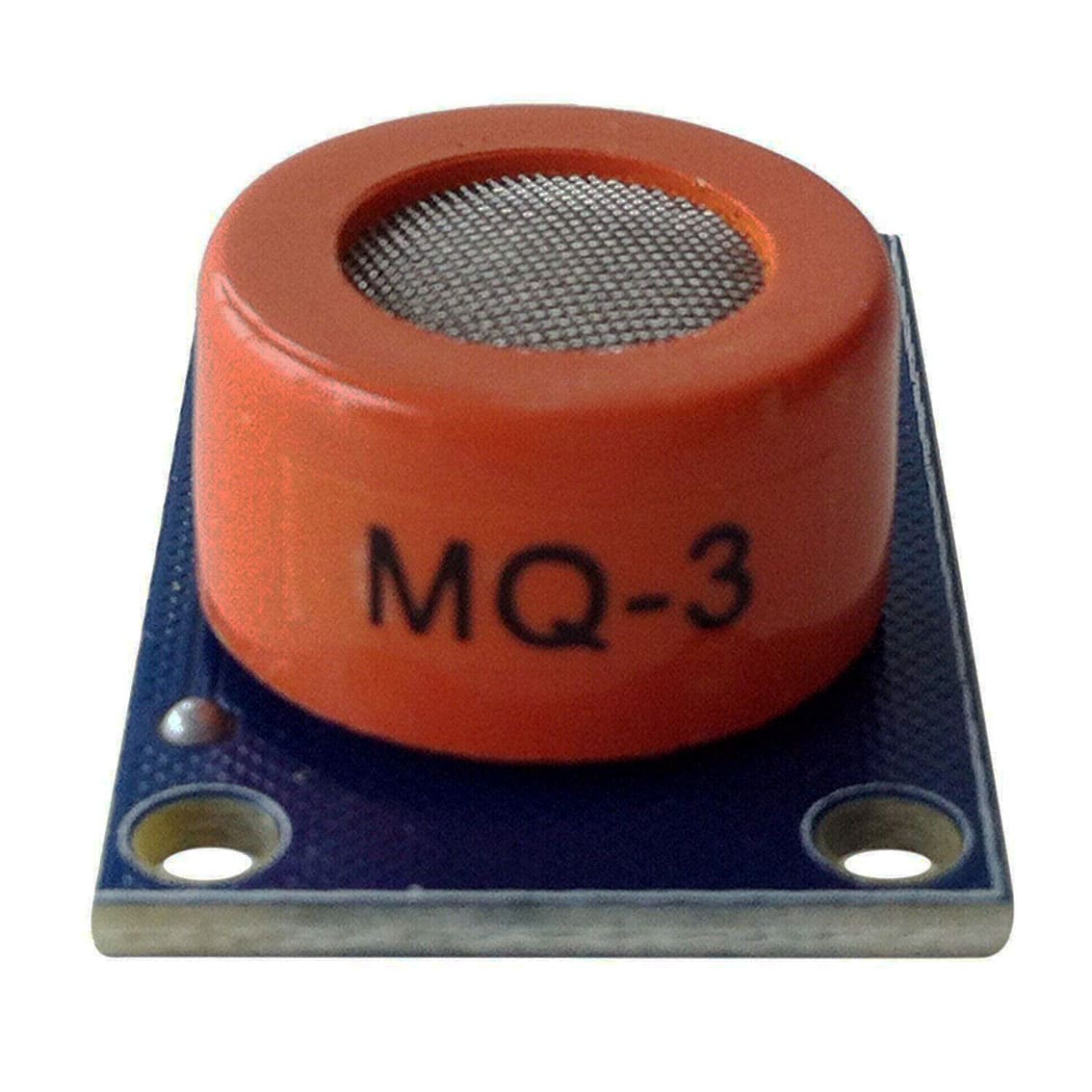

MQ-3 Alcohol and Ethanol Analogue Sensor Module

48 people have recently viewed this product!

MQ-3 Alcohol and Ethanol Analogue Sensor Module

The MQ-3 Alcohol and Ethanol Analog Sensor Module offers high sensitivity and quick response times for detecting alcohol vapors, making it ideal for breathalyzers and safety monitoring systems.

$15.95

Order Within –

Availability: 19 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001254

You May Also Like...

Description:

The MQ-3 Alcohol and Ethanol Analog Sensor Module is designed to detect alcohol vapours in the air. Utilizing a tin dioxide (SnOâ‚‚) sensitive layer, the sensor exhibits low conductivity in clean air, which increases in the presence of alcohol gases. This change in conductivity allows for the detection of alcohol concentrations ranging from 0.05 mg/L to 10 mg/L, making it suitable for applications such as breathalyzers, alcohol detectors, and safety monitoring systems.

The sensor operates with a heating voltage of 5V and provides an analog output signal that can be interfaced with microcontrollers and ADC modules for monitoring and analysis. Its compact design and high sensitivity make it an ideal choice for various alcohol detection applications.

Specifications:

  • Target Gas: Alcohol (Ethanol)
  • Detection Range: 0.05 mg/L to 10 mg/L
  • Heater Voltage: 5V ±0.1V
  • Load Resistance (RL): 200 kΩ
  • Heater Resistance (RH): 33Ω ±5% at room temperature
  • Heating Consumption: ≤750 mW
  • Operating Temperature: -10°C to 50°C
  • Operating Humidity: ≤95% RH
  • Sensitivity: Rs (in air) / Rs (0.4 mg/L alcohol) ≥ 5
  • Response Time: ≤10 seconds
  • Recovery Time: ≤30 seconds

Features:

  • High sensitivity to alcohol vapors
  • Fast response and recovery times
  • Stable and long lifespan
  • Simple drive circuit
  • Compact design for easy integration

Contents:

  • 1 x MQ-3 Alcohol and Ethanol Analog Sensor Module
Weight 0.006 kg
Dimensions 90 × 10 × 50 mm
Brand

Type

Voltage

Detectable Gases

,

Sensitivity

Load Resistance

Heater Resistance

Operating Temperature

Operating Humidity

Response Time

10s

Recovery Time
