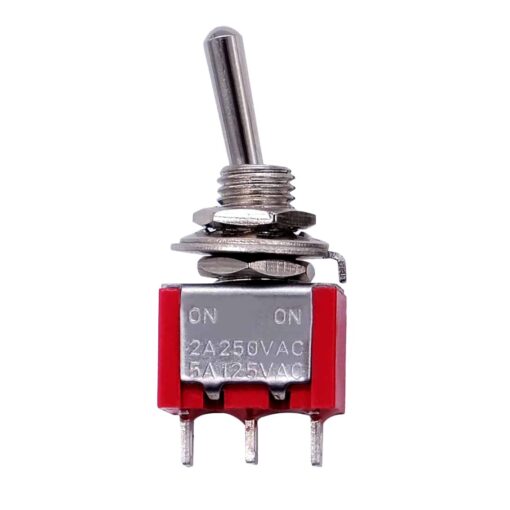

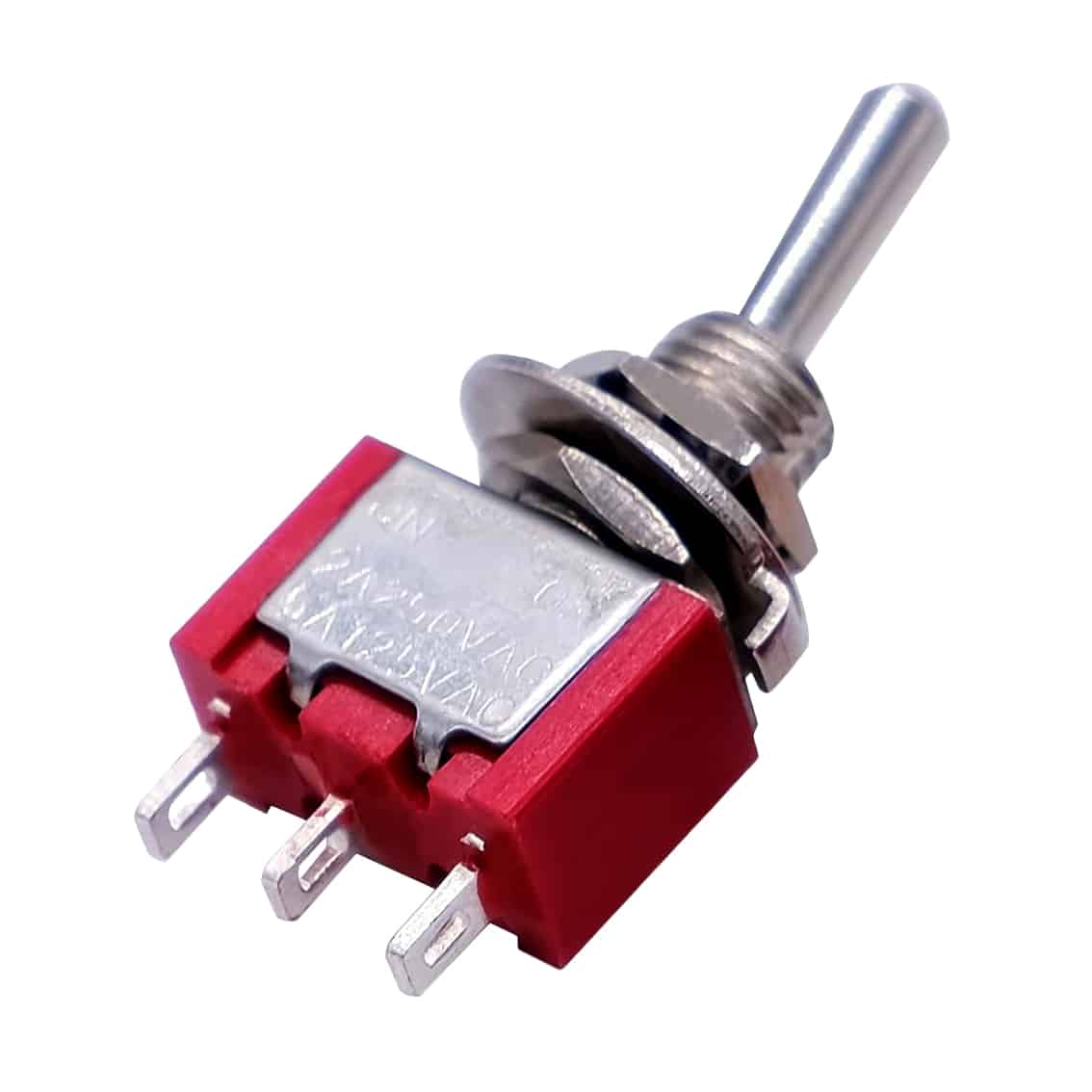

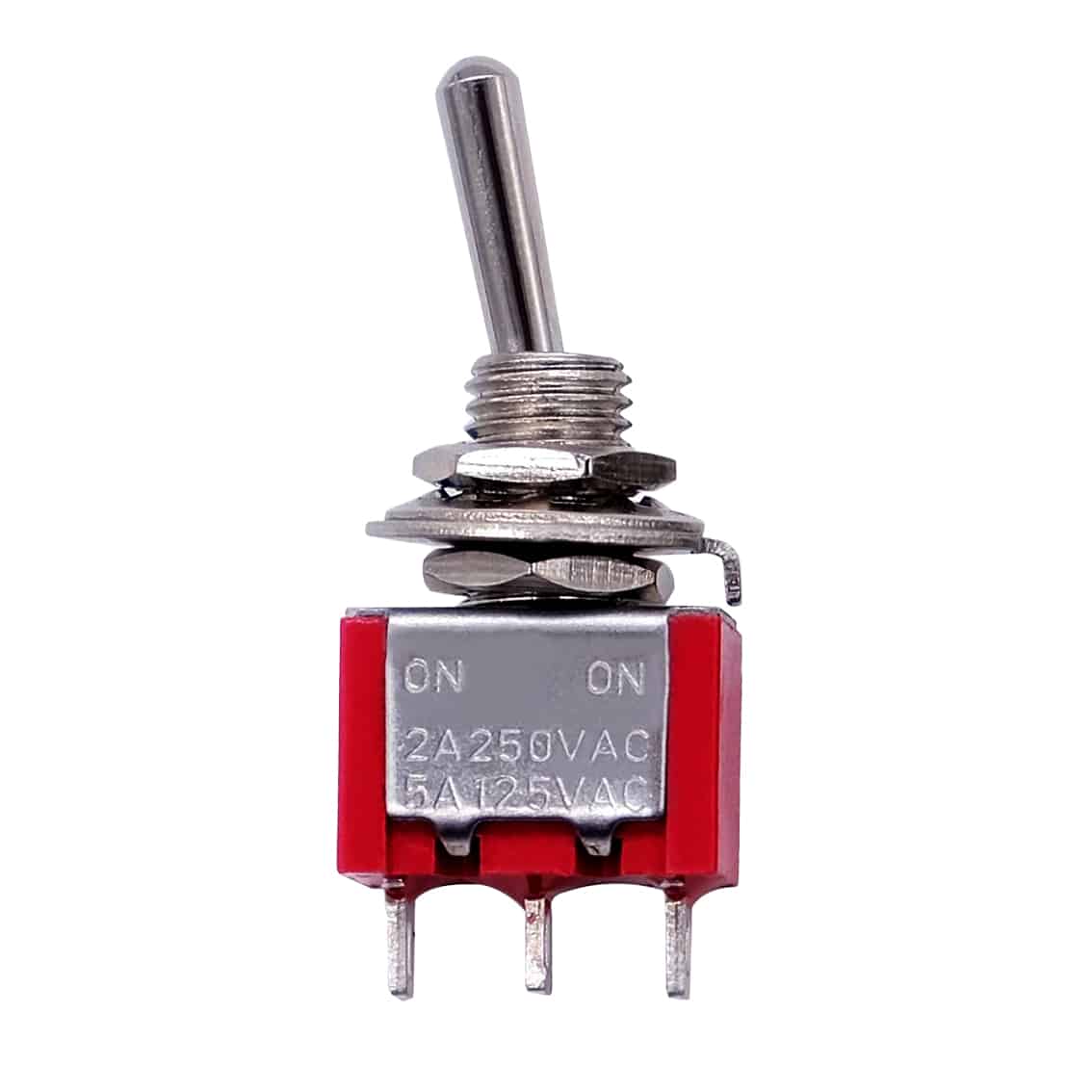

MTS-102 Red Mini Toggle Switch – Pack of 5

MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 2
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 3
20 people have recently viewed this product!

MTS-102 Red Mini Toggle Switch – Pack of 5

0 reviews

The MTS-102 Red Mini Toggle Switch is an SPDT switch with an ON-ON configuration, designed for controlling two different circuits or functions. This pack of 5 durable and compact switches is perfect for various electronic projects, offering reliable performance and easy installation.

  • High Current Rating: Can handle up to 6A at 250V AC, suitable for various electrical applications.
  • Durable Material: Constructed with robust metal for long-lasting durability.
  • Compact and Lightweight: Small size makes it easy to install in tight spaces.
  • Versatile Usage: Ideal for use in electronic projects, DIY applications, and industrial controls.
  • Pack of 5: Comes in a convenient pack of 5 switches, providing great value for bulk use.

$15.95

Order Within –

FOR SAME DAY SHIPPING!

Availability: 30 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 4
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 5
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 6
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 7
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 8
MTS-102 Red Mini Toggle Switch – Pack of 5 PHI1003417 Phipps Electronics 9
SKU: PHI1003417

You May Also Like...

Description:

The MTS-102 Red Mini Toggle Switch is a durable and versatile switch designed for various electronic applications. This switch features a distinctive red plastic housing, making it easy to identify in your projects. The MTS-102 is an SPDT (Single Pole Double Throw) switch configured in an ON-ON format. This means it can toggle between two different circuits or functions, providing simple yet effective control for your electronic designs. This pack of 5 switches is ideal for hobbyists, engineers, and anyone needing a reliable and compact switching solution.

With its compact size and robust build, the MTS-102 is perfect for use in control panels, instrumentation, audio equipment, and other electronic devices where space is limited. The switch is designed for easy panel mounting and comes with a secure nut and washer to ensure a stable installation. Whether working on new projects or upgrading existing ones, these switches offer dependable performance and easy integration into your systems.

Specifications:

  • Model: MTS-102
  • Type: Mini Toggle Switch
  • Switching Type: SPDT (Single Pole Double Throw)
  • Position: ON-ON
  • Contact Rating: 6A at 125V AC, 3A at 250V AC
  • Contact Resistance: Maximum 20mΩ
  • Insulation Resistance: Minimum 500VDC, 1000MΩ
  • Dielectric Strength: 1500VAC for 1 minute
  • Electrical Life: 10,000 cycles
  • Terminal Type: Solder Lug
  • Mounting Hole Diameter: 6mm
  • Body Material: Metal and Red Plastic
  • Operating Temperature: -25°C to +85°C
  • Overall Dimensions: 12mm x 7mm x 29mm (excluding terminals)
  • Weight: Approximately 5g per switch

Features:

  • SPDT switch with an ON-ON configuration for controlling two different circuits or functions.
  • Compact and durable design, suitable for space-constrained electronic applications.
  • Rated for up to 6A at 125V AC, making it suitable for various electronic circuits.
  • Easy panel mounting with a secure nut and washer for stable and reliable installation.
  • Red plastic housing for easy identification and a professional look.

Contents:

  • 5 x MTS-102 Red Mini Toggle Switch
Weight 0.024 kg
Dimensions 90 × 60 × 5 mm
Brand

Type

Contact Configuration

Contact Positions

Actuator Type

Voltage Rating

,

Current Rating

,

Insulation Resistance

Dielectric Strength

Operation Type

Operating Temperature

Terminals

Colour
