Description:

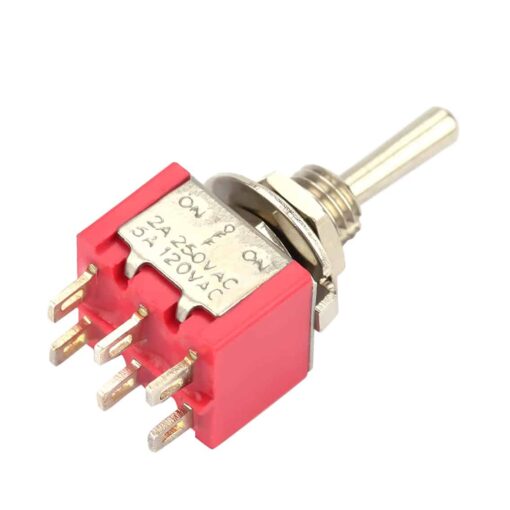

The MTS-203 Red Mini Toggle Switch is a compact and reliable Double-Pole Double-Throw (DPDT) switch featuring a three-position ON-OFF-ON configuration. This versatile switch is ideal for applications requiring precise control over multiple circuits, such as in electronic projects, instrumentation, and industrial equipment. Its red plastic housing and sturdy metal toggle lever ensure durability and ease of operation.
Designed for panel mounting, the MTS-203 switch includes a 6mm threaded bushing, accompanied by a nut and washer for secure installation. The six solder lug terminals facilitate straightforward wiring, accommodating various circuit configurations. With a contact rating of 6A at 125V AC and 3A at 250V AC, this switch is suitable for both low and high-voltage applications. Its compact dimensions (13 x 12.8 x 10 mm) make it an excellent choice for projects with space constraints.
Specifications:
- Model: MTS-203
- Type: Mini Toggle Switch
- Switching Type: DPDT (Double Pole Double Throw)
- Position: ON-OFF-ON
- Contact Rating: 6A at 125V AC; 3A at 250V AC
- Contact Resistance: ≤20mΩ
- Insulation Resistance: ≥1000MΩ at 500V DC
- Dielectric Strength: 1500V AC for 1 minute
- Terminal Type: 6-Pin Solder Lug
- Mounting Hole Diameter: 6mm
- Body Material: Metal and Red Plastic
- Operating Temperature: -25°C to +85°C
- Electrical Life: ≥10,000 cycles
- Dimensions: 13mm x 12.8mm x 10mm (L x W x H)
- Weight: Approximately 6g per switch
Features:
- Three-position (ON-OFF-ON) configuration for versatile circuit control
- Compact design suitable for space-constrained applications
- Durable construction with a lifespan exceeding 10,000 cycles
- Easy panel mounting with included nut and washer
- Ideal for electronic projects, instrumentation, and industrial equipment
Contents:
- 5 x MTS-203 Red Mini Toggle Switches
