Description:

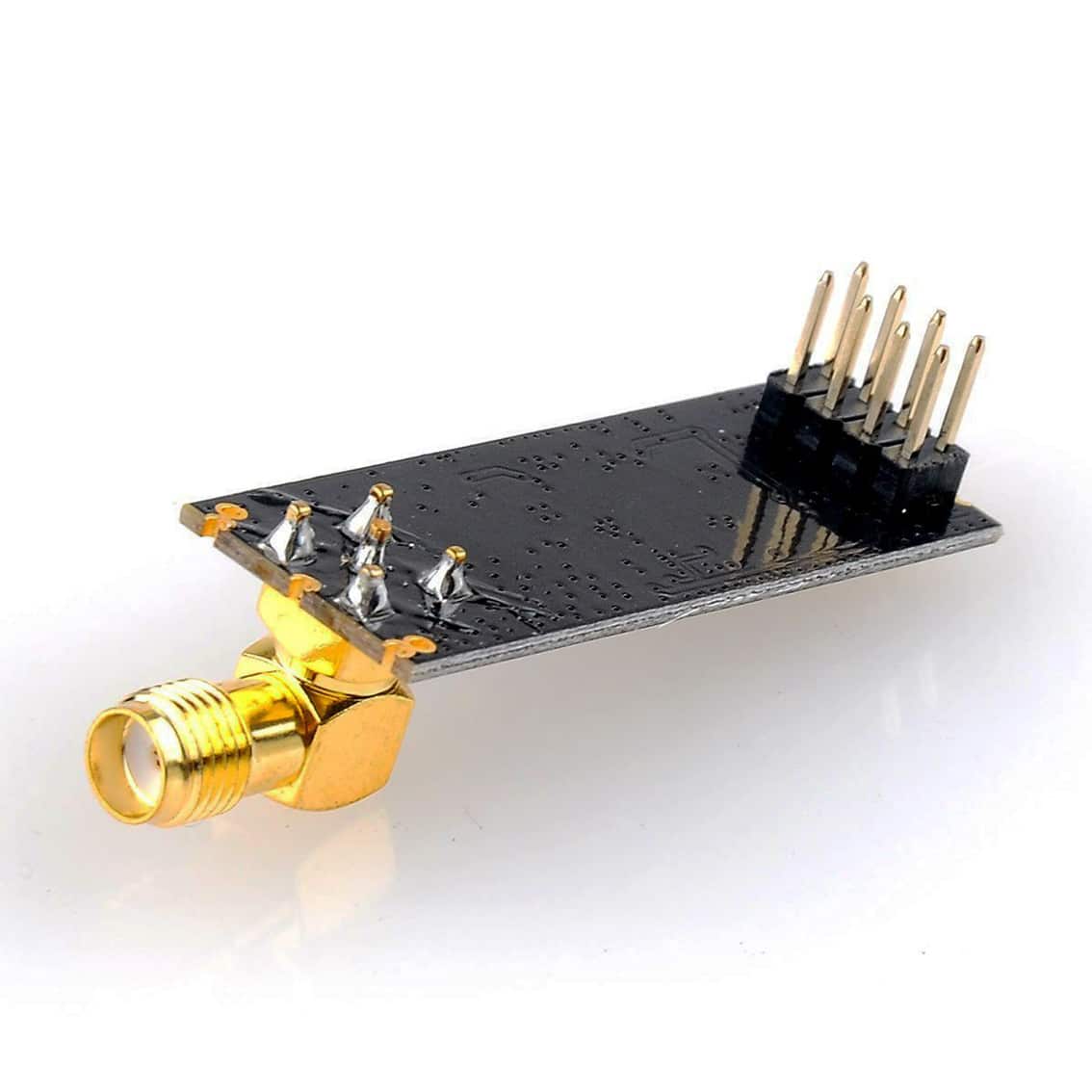

The NRF24L01+PA+LNA Long Distance Wireless Module with Antenna is a high-performance transceiver designed for robust wireless communication in the 2.4 GHz ISM band. Building upon the capabilities of the standard NRF24L01+ module, this enhanced version incorporates a Power Amplifier (PA) and Low-Noise Amplifier (LNA), significantly extending its communication range to up to 1,100 meters in open space with line-of-sight. The included external antenna further enhances signal strength and reliability, making it ideal for applications requiring long-distance wireless data transmission, such as remote controls, wireless sensors, and home automation systems.
Operating with a data rate of up to 2 Mbps and utilizing Gaussian Frequency-Shift Keying (GFSK) modulation, the module ensures efficient and reliable data exchange. It supports a wide operating voltage range of 2.7V to 3.6V and features low power consumption, making it suitable for battery-powered devices. The module communicates via a Serial Peripheral Interface (SPI), facilitating seamless integration with various microcontrollers, including Arduino and Raspberry Pi. Its compact design and enhanced range capabilities make it a versatile solution for diverse wireless communication needs.
Specifications:
- Frequency Range: 2.4 GHz to 2.5 GHz ISM band
- Operating Voltage: 2.7V to 3.6V
- Maximum Current Consumption: 115 mA
- Data Rate: 250 kbps, 1 Mbps, 2 Mbps
- Modulation: GFSK
- Communication Range: Up to 1,100 meters (line-of-sight)
- Operating Temperature: -40°C to +85°C
- Interface: SPI
- Dimensions: 41 mm x 15.5 mm
Features:
- Enhanced communication range with integrated PA and LNA

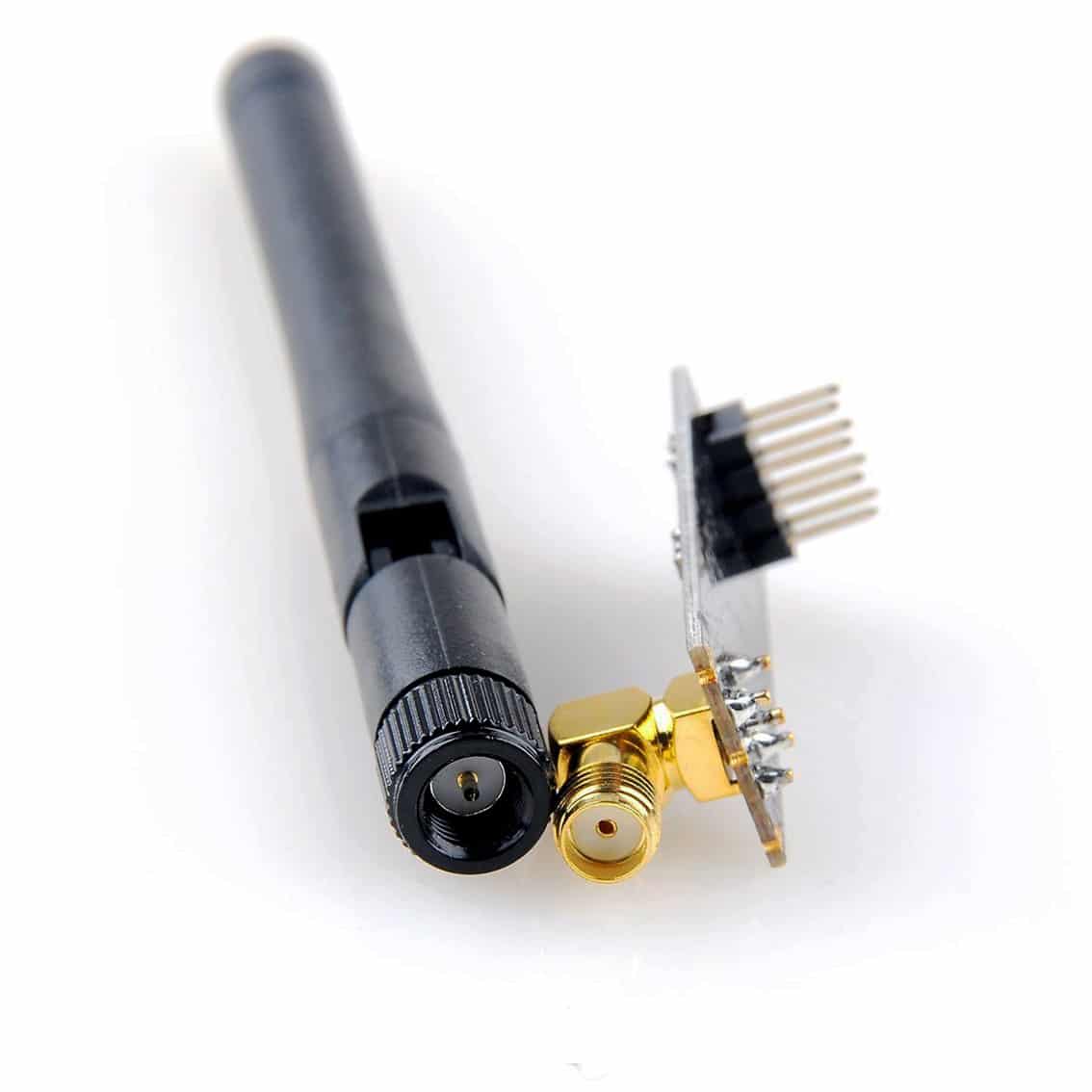

- External antenna for improved signal strength
- Supports multiple data rates: 250 kbps, 1 Mbps, and 2 Mbps
- Low power consumption suitable for battery-operated devices
- Compatible with Arduino, Raspberry Pi, and other microcontrollers
- Supports up to six data reception channels
- 125 available frequency channels for interference-free communication
Contents:

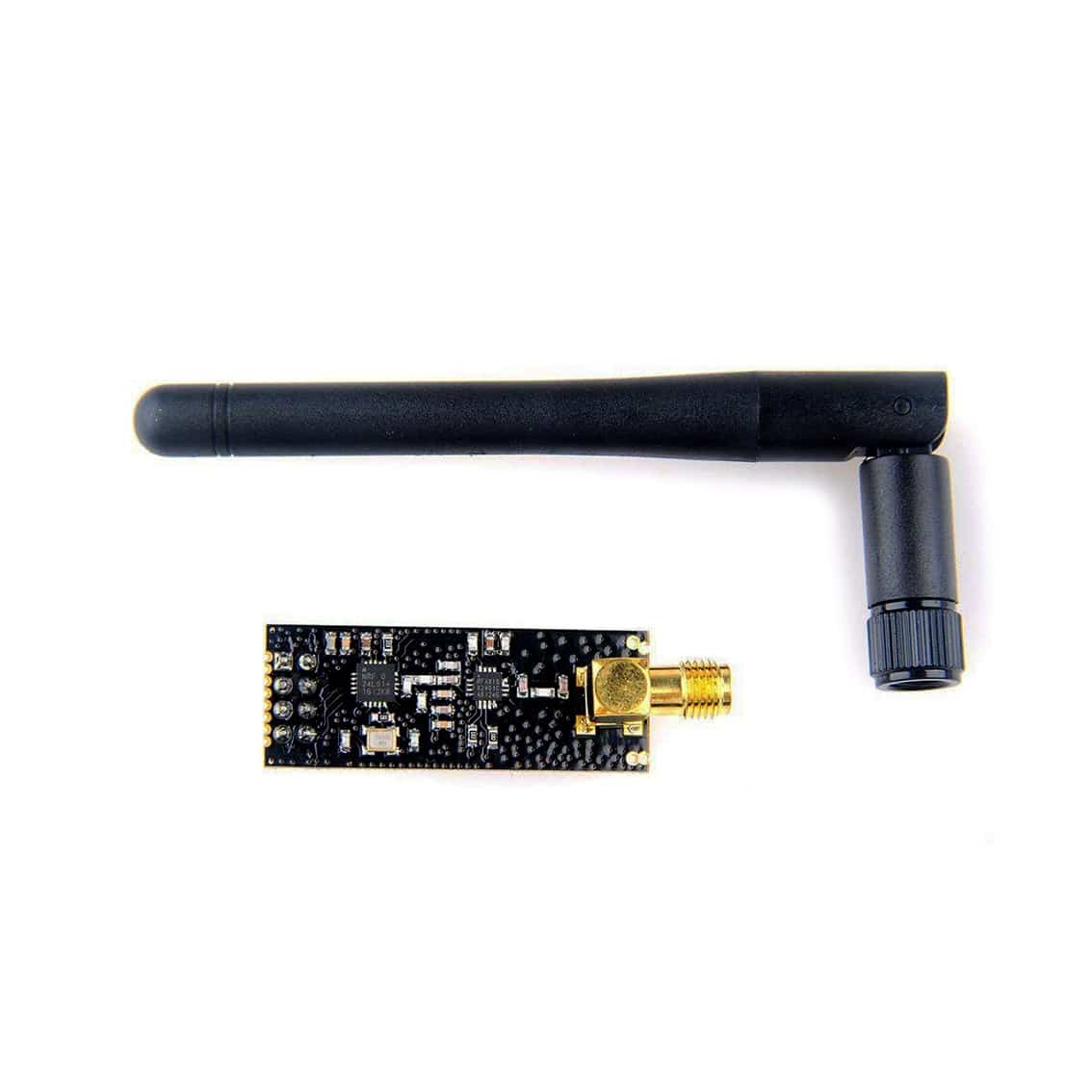

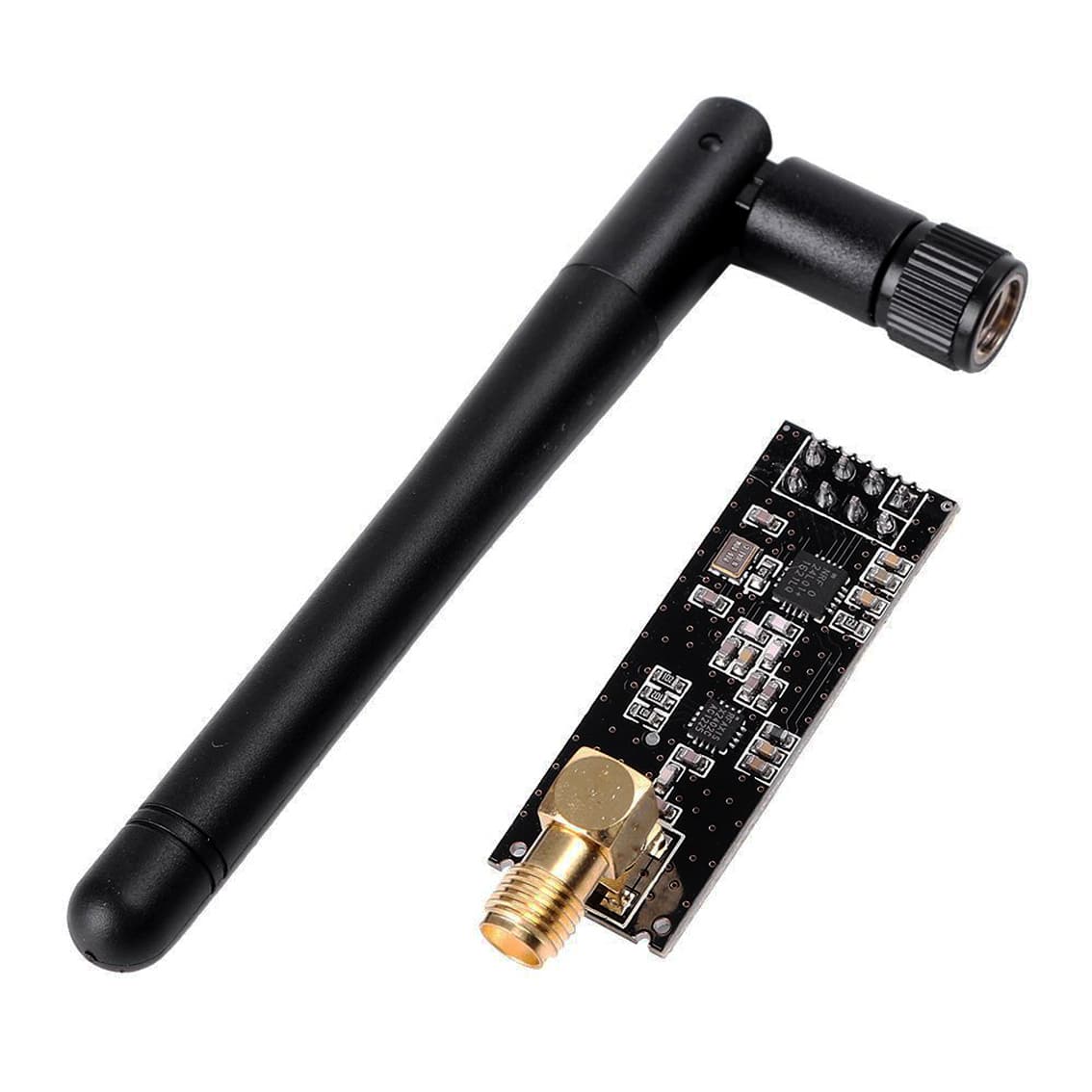

- 1 x NRF24L01+PA+LNA Long Distance Wireless Module
- 1 x External Antenna
