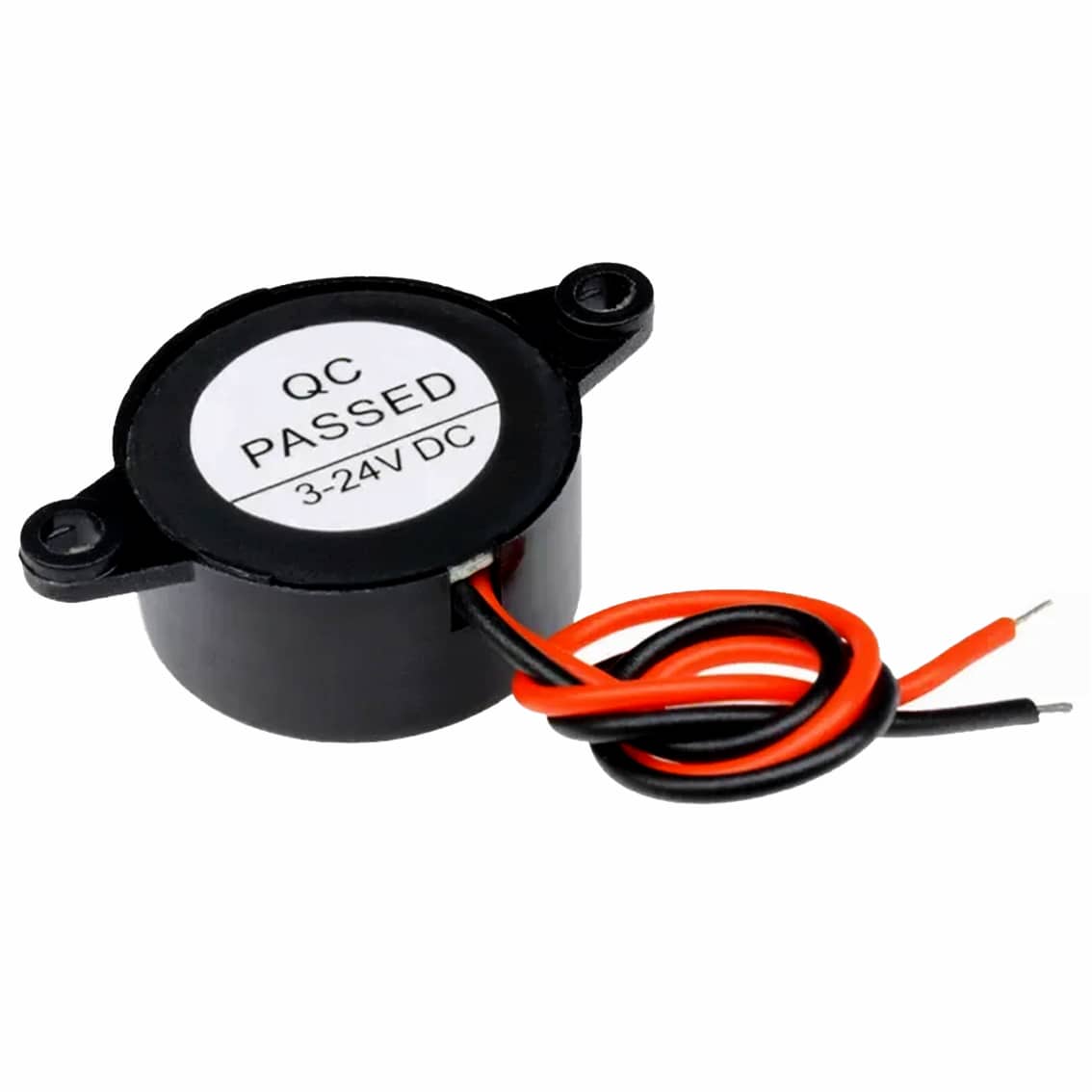

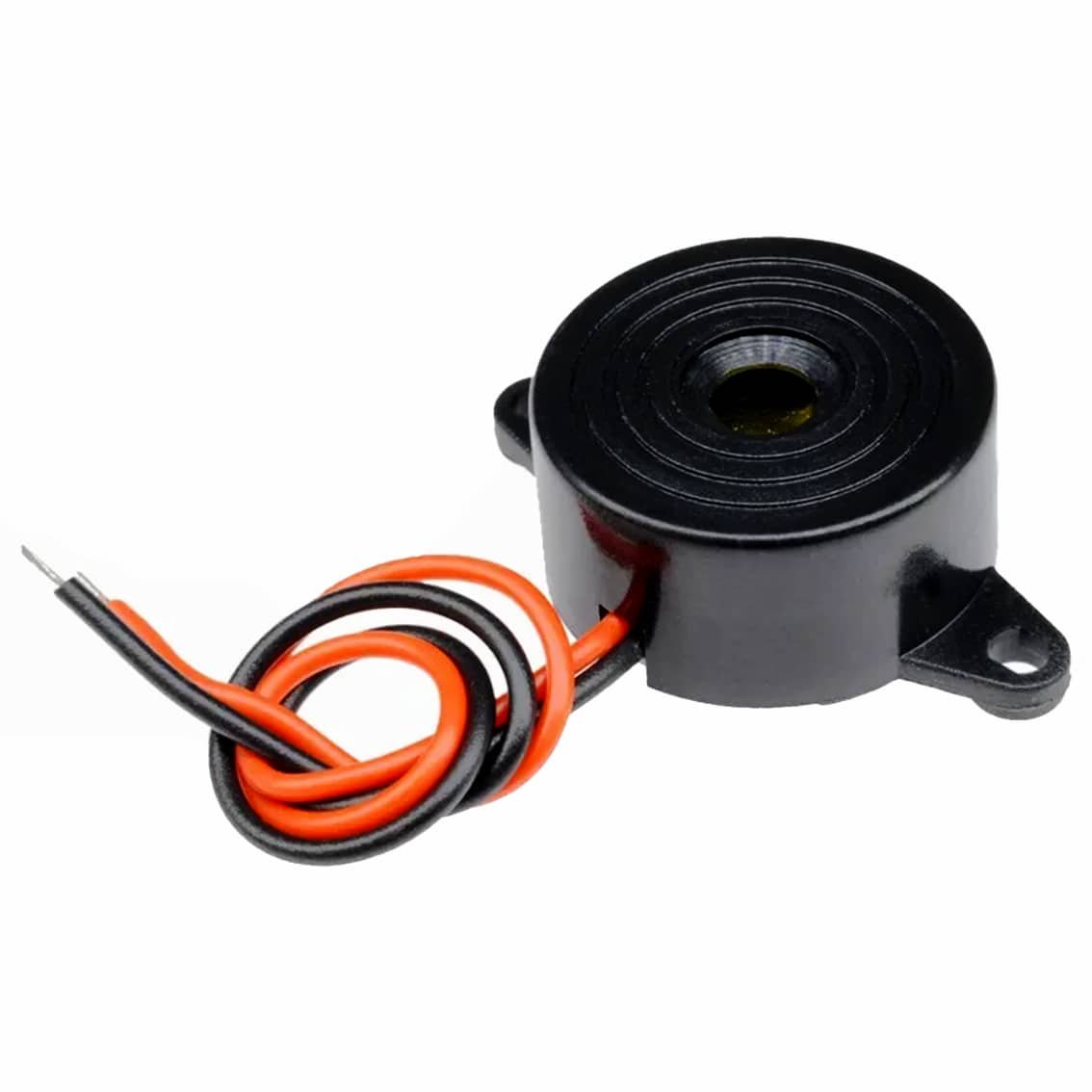

SFM-20B DC 3-24V Piezoelectric 95dB Alarm Buzzer

31 people have recently viewed this product!

SFM-20B DC 3-24V Piezoelectric 95dB Alarm Buzzer

The SFM-20B DC 3-24V Piezoelectric 95dB Alarm Buzzer is perfect for use in alarm and notification systems, offering high decibel output and low energy consumption. Its compact design makes it suitable for a wide range of applications.

$12.95

Order Within –

Availability: 25 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1003421

Description:

The SFM-20B DC 3-24V Piezoelectric 95dB Alarm Buzzer is a compact and efficient component designed for a variety of alarm and notification applications. This piezoelectric buzzer operates within a wide voltage range of 3 to 24V DC, making it versatile and suitable for numerous electronic projects, including Arduino and car alarm systems. With a sound pressure level of 95 dB, it provides a loud and clear alarm, ensuring it is easily heard in various environments.

This buzzer is known for its low energy consumption, making it ideal for battery-powered devices. Its compact size (23 × 12 mm) allows it to be used in space-constrained applications. The SFM-20B is easy to install, featuring two mounting holes spaced 30 mm apart and 90 mm long wires for convenient connections.

Specifications:

  • Model: SFM-20B
  • Type: Piezoelectric Buzzer
  • Operating Voltage: 3V – 24V DC
  • Sound Pressure Level: 95 dB
  • Current Rating: 12mA
  • Sound Frequency: 3300 ± 500 Hz
  • Size: 23 × 12 mm
  • Wire Length: 90 mm
  • Mounting Holes Distance: 30 mm

Features:

  • Wide operating voltage range (3-24V DC)
  • High sound pressure level (95 dB)
  • Low energy consumption
  • Compact and lightweight design
  • Easy to install with mounting holes and long wires
  • Suitable for various applications including alarms and communication systems

Contents:

  • 1 x SFM-20B DC 3-24V Piezoelectric 95dB Alarm Buzzer
Weight 0.01 kg
Dimensions 70 × 50 × 10 mm
Brand

Type

Operating Voltage

Current Rating

Operating Frequency

Sound Level

Colour

Terminals
