Description:
The Soil Humidity Moisture Detection Sensor Module with Probe, featuring the LM393 comparator, is designed to accurately measure soil moisture levels for various agricultural and horticultural applications. The module operates by passing current through the soil via its dual probes, measuring the resistance to determine moisture content. Higher moisture levels result in lower resistance, while drier conditions increase resistance. This sensor is ideal for automated irrigation systems, ensuring plants receive optimal watering based on real-time soil conditions.
Equipped with both digital and analog outputs, the module offers flexibility in interfacing with microcontroller platforms such as Arduino and Raspberry Pi. The digital output can be adjusted using the onboard potentiometer to set specific moisture thresholds, triggering alerts or actions when soil moisture falls below the desired level. The analog output provides a variable voltage corresponding to the exact moisture level, allowing for more nuanced monitoring and control. The module’s compact design and ease of integration make it a valuable component for both hobbyist projects and professional agricultural systems.
Specifications:
- Operating Voltage: 3.3V to 5V DC
- Operating Current: Approximately 15mA
- Output Types:
- Digital Output (DO): 0V to 5V, adjustable trigger level via potentiometer
- Analog Output (AO): 0V to 5V proportional to soil moisture level
- Indicator LEDs: Power (red) and Digital Output Status (green)
- Dimensions: 3.2cm x 1.4cm (module)
- Probe Length: Approximately 6cm
Features:
- Dual output modes: digital and analog for versatile interfacing
- Adjustable sensitivity via onboard potentiometer
- LED indicators for power and output status
- Compatible with various microcontrollers, including Arduino and Raspberry Pi
- Easy installation with mounting hole

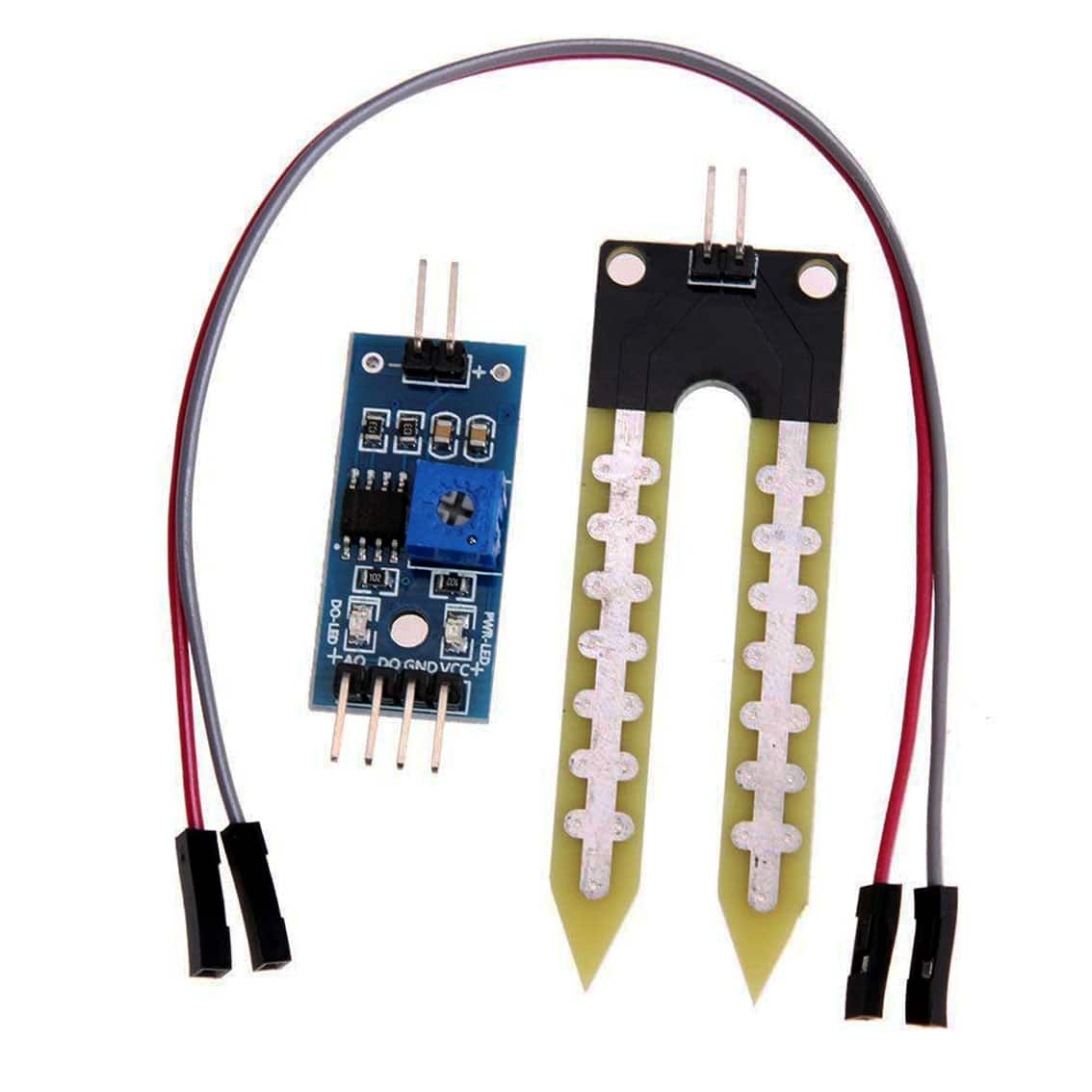

Contents:

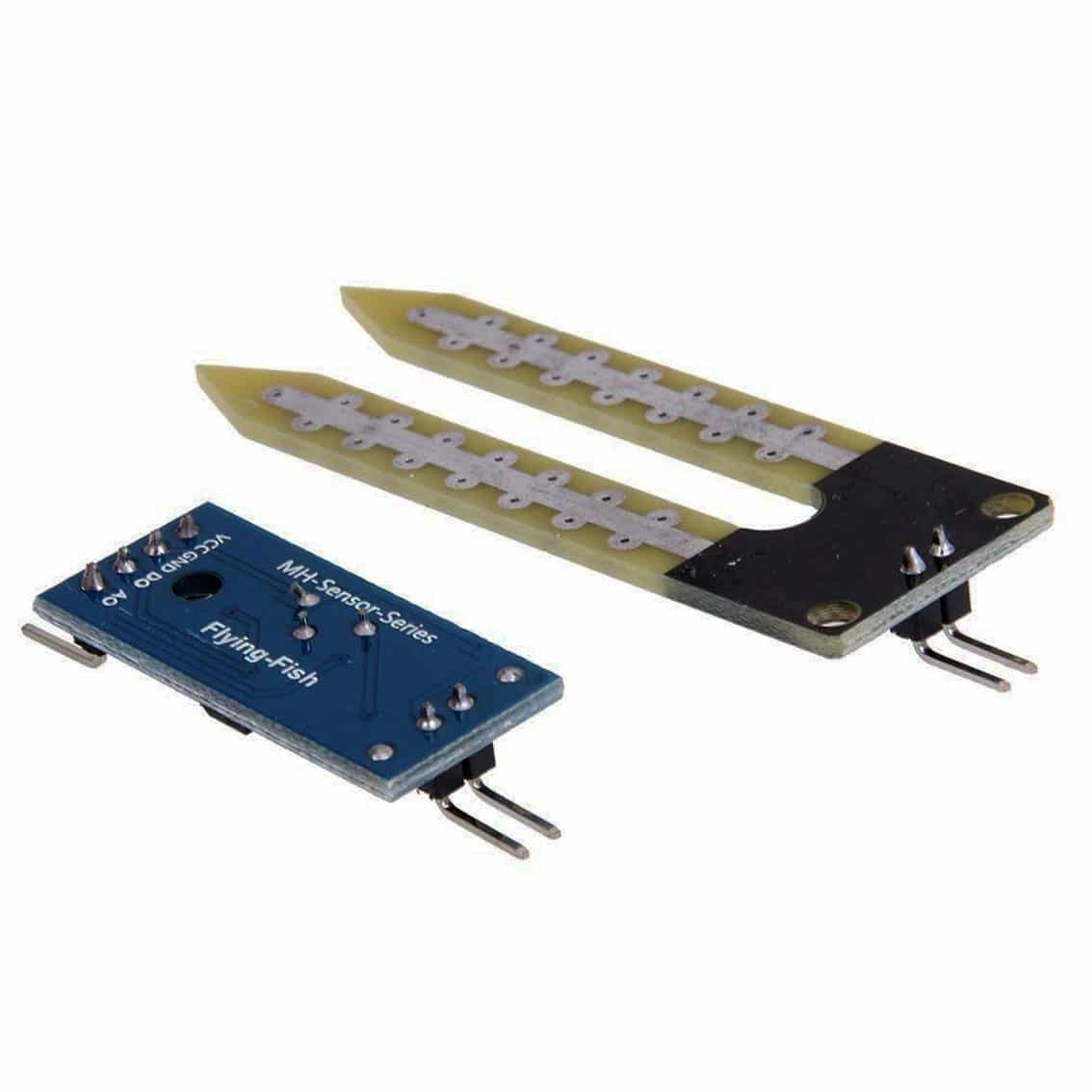

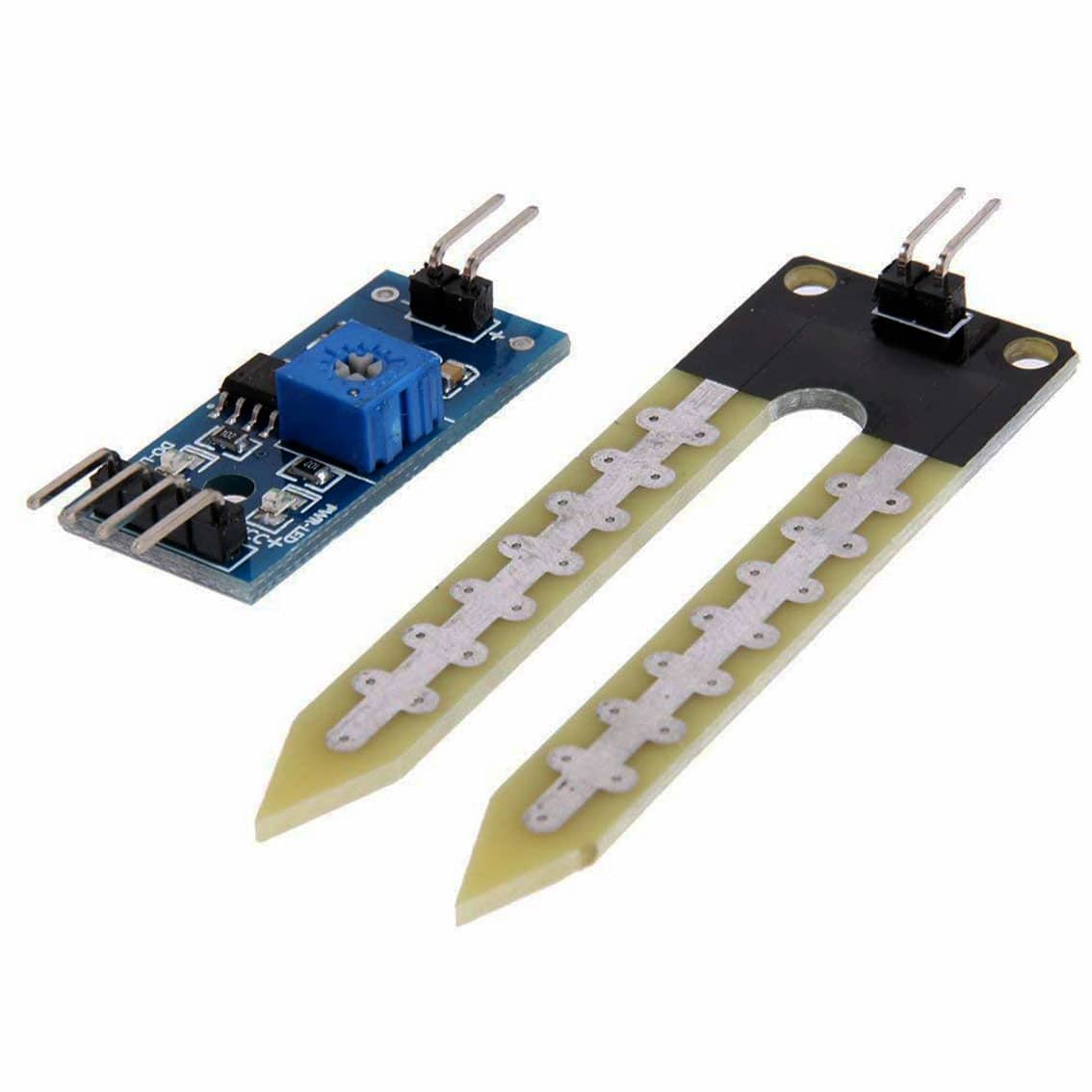

- 1 x Soil Humidity Moisture Detection Sensor Module
- 1 x Soil Moisture Probe

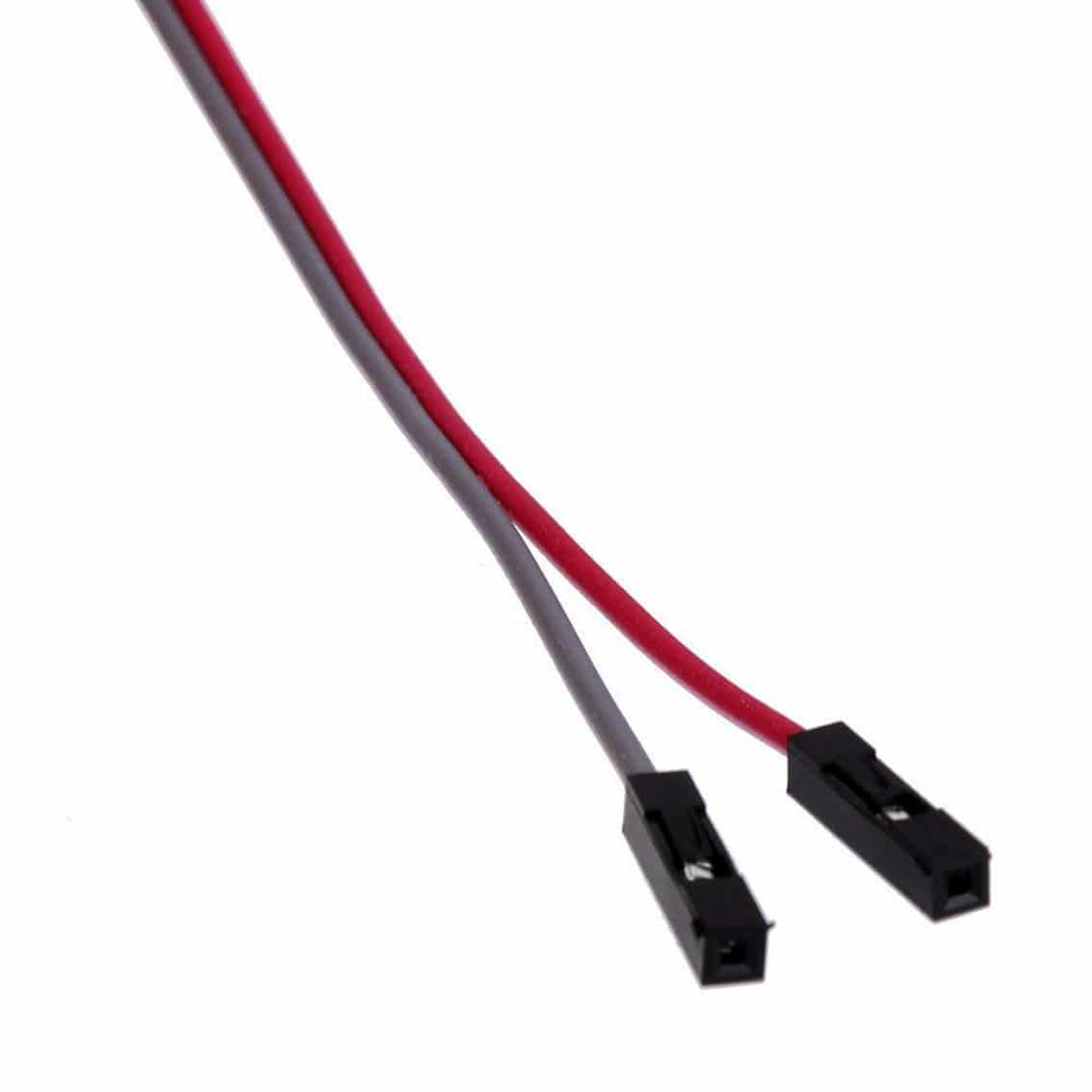

- 1 x Set of Jumper Wires
