Description:
The TMC2208 Stepper Motor Driver with Heatsink is a versatile and efficient driver designed to control stepper motors with high precision and quiet operation. It is widely used in 3D printers, CNC machines, and various other applications requiring precise motor control. The TMC2208 integrates Trinamic’s advanced features, such as StealthChop for ultra-quiet performance and SpreadCycle for smooth motion, making it a popular choice for hobbyists and professionals alike.
With the ability to drive up to 2A of current per phase and a voltage range of 4.75V to 36V, this driver offers reliable performance and robust thermal management, thanks to the included heatsink. The module is compatible with standard step/dir interfaces and can be configured using UART for more advanced control options.
Specifications:
- Chipset: Trinamic TMC2208
- Input Voltage: 4.75V – 36V
- Logic Voltage: 3.3V – 5V
- Maximum Current: 1.2A RMS, 2A peak per phase
- Microstepping: Up to 256 microsteps
- Interface: Step/Dir, UART
- Features: StealthChop, SpreadCycle, CoolStep, StallGuard
- Dimensions: Standard StepStick form factor
- Protection: Over-current, over-temperature
Features:
- Ultra-quiet motor operation with StealthChop technology
- Smooth motion control with SpreadCycle
- Configurable via UART for advanced settings

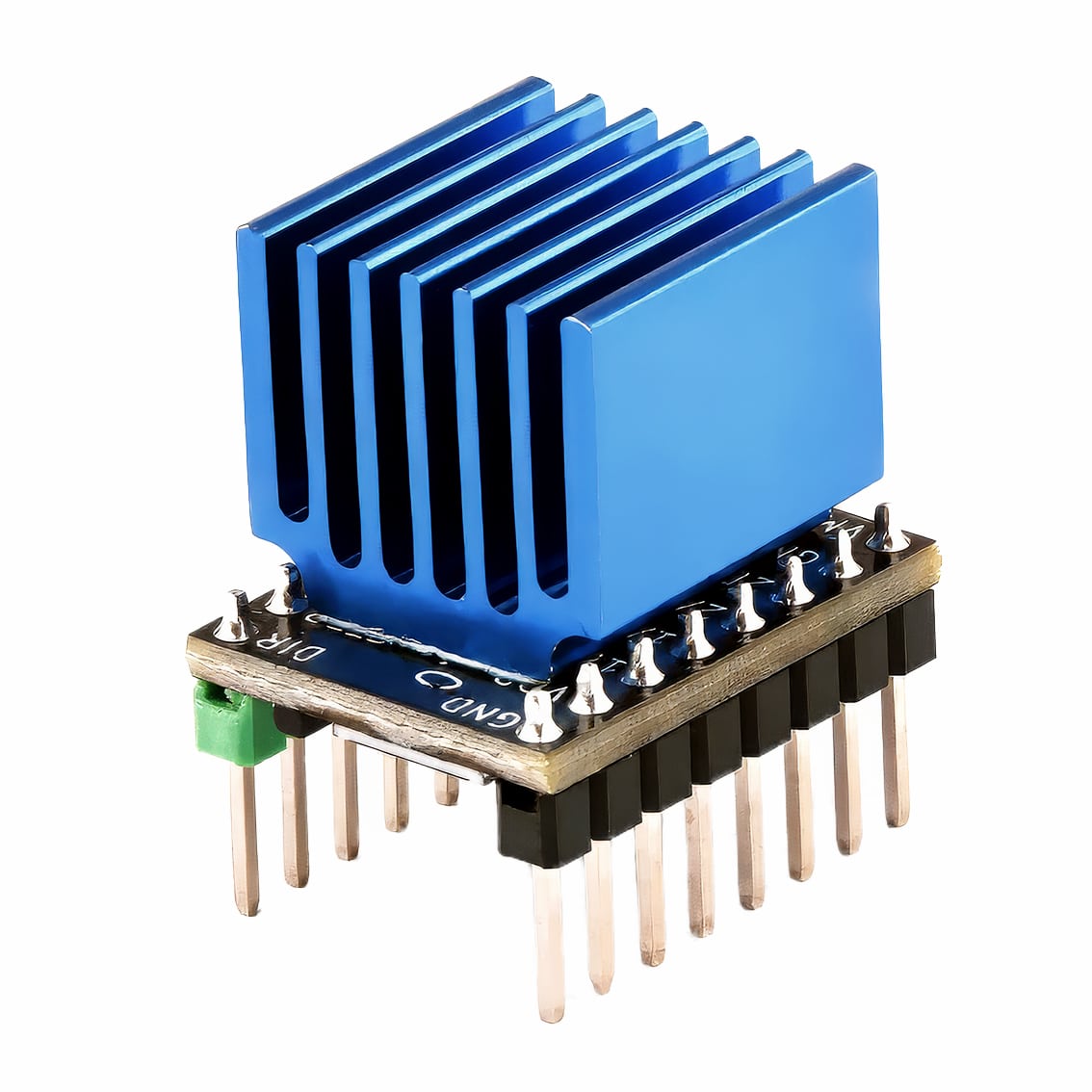

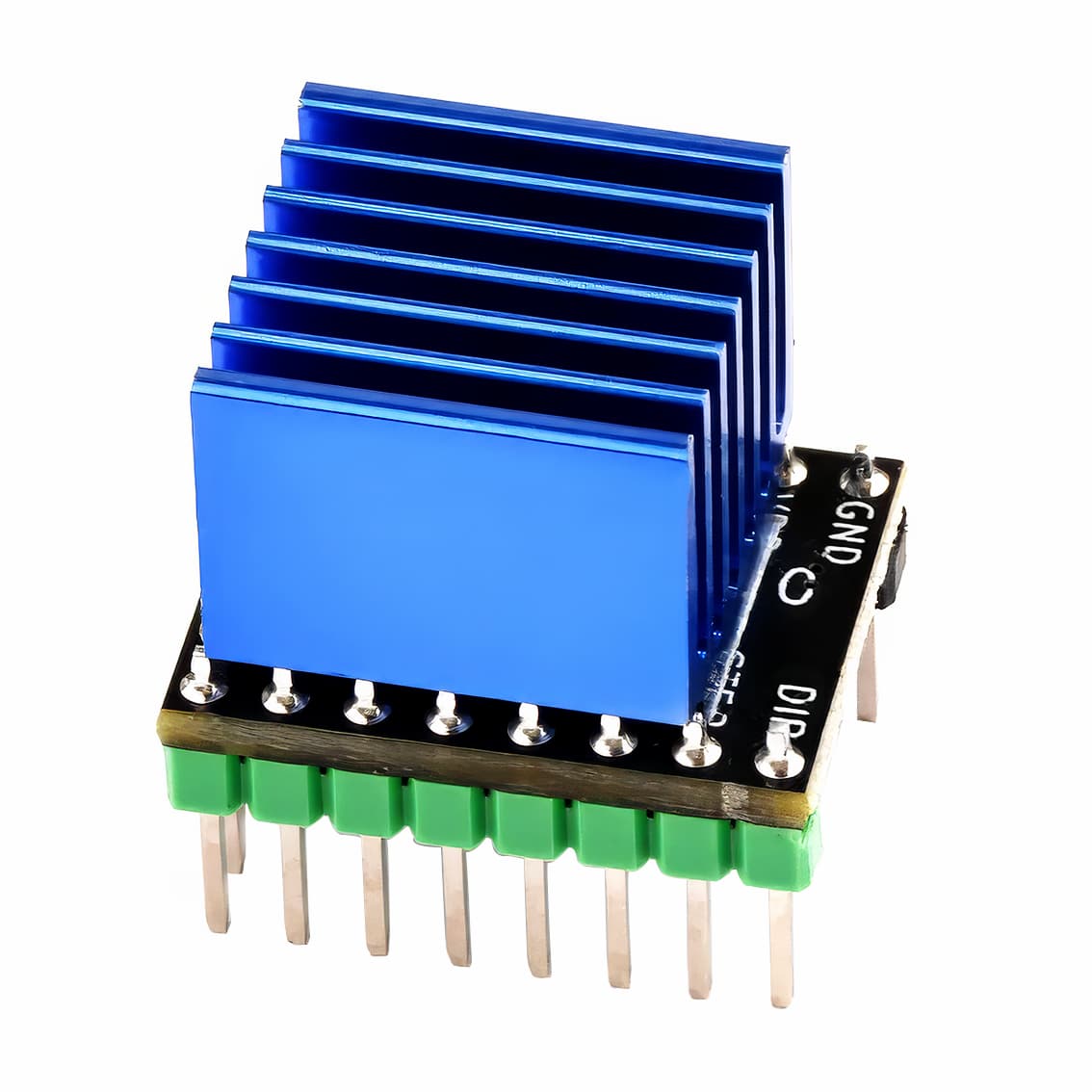

- Integrated heatsink for enhanced thermal performance
- Supports up to 256 microsteps for precise motor control
- Compatible with a wide range of stepper motors and control boards
Contents:
- 1 x TMC2208 Stepper Motor Driver Module
- 1 x Heatsink
