Description:

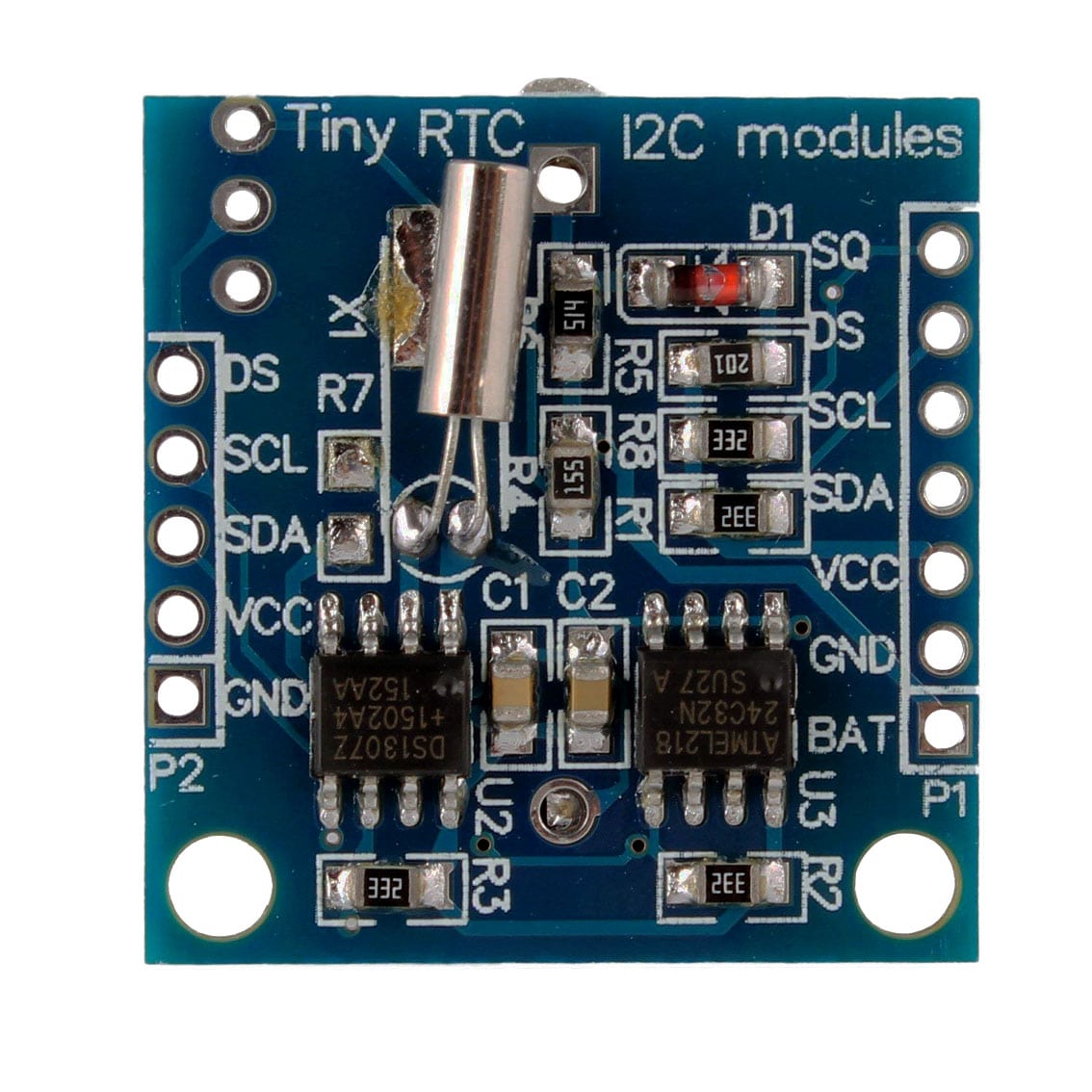

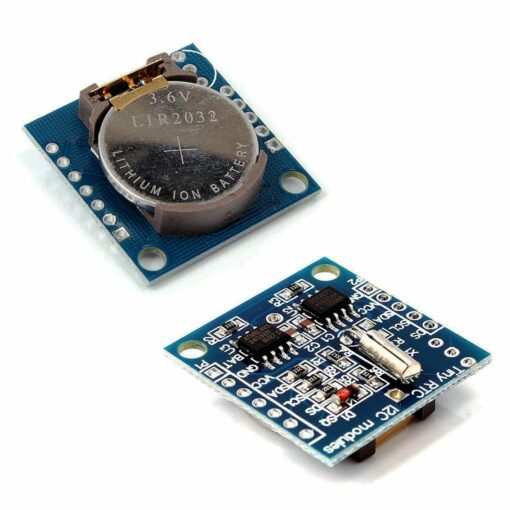

The Tiny RTC I2C Module is a compact real-time clock solution designed for accurate timekeeping in various electronic projects. It integrates a DS1307 RTC chip and an AT24C32 EEPROM, providing both timekeeping and non-volatile data storage capabilities. The module communicates via the I²C interface, ensuring seamless integration with microcontroller platforms such as ARM and PIC. Its onboard battery backup ensures continuous operation, maintaining timekeeping even during power interruptions.
This module offers timekeeping functions, including seconds, minutes, hours, days, dates, months, and years, with automatic leap year compensation valid up to 2100. The 32KB EEPROM included allows for additional data storage, making it suitable for applications like data logging, time-stamping, and scheduling tasks. Its compact design and ease of use make it ideal for developers seeking reliable timekeeping and storage solutions for their projects.
Specifications:
- RTC Chip: DS1307
- EEPROM: AT24C32 (32KB)
- Communication Interface: I²C
- Operating Voltage: 5V DC
- Backup Battery: CR2032 (not included)
- Timekeeping Accuracy: ±2ppm at 0°C to +40°C
- Dimensions: 28mm x 25mm x 8mm
Features:
- Provides real-time clock/calendar with leap year compensation up to 2100
- 56-byte battery-backed non-volatile RAM for data storage
- Additional 32KB EEPROM for extended data storage
- Automatic power-fail detect and switch circuitry
- Low power consumption extends battery backup run time
- Compatible with ARM, PIC, and other microcontroller platforms
Contents:
- 1 x Tiny RTC I2C Module
