Transistor Pack in Storage Case – 10 Values – Pack of 200

1 review

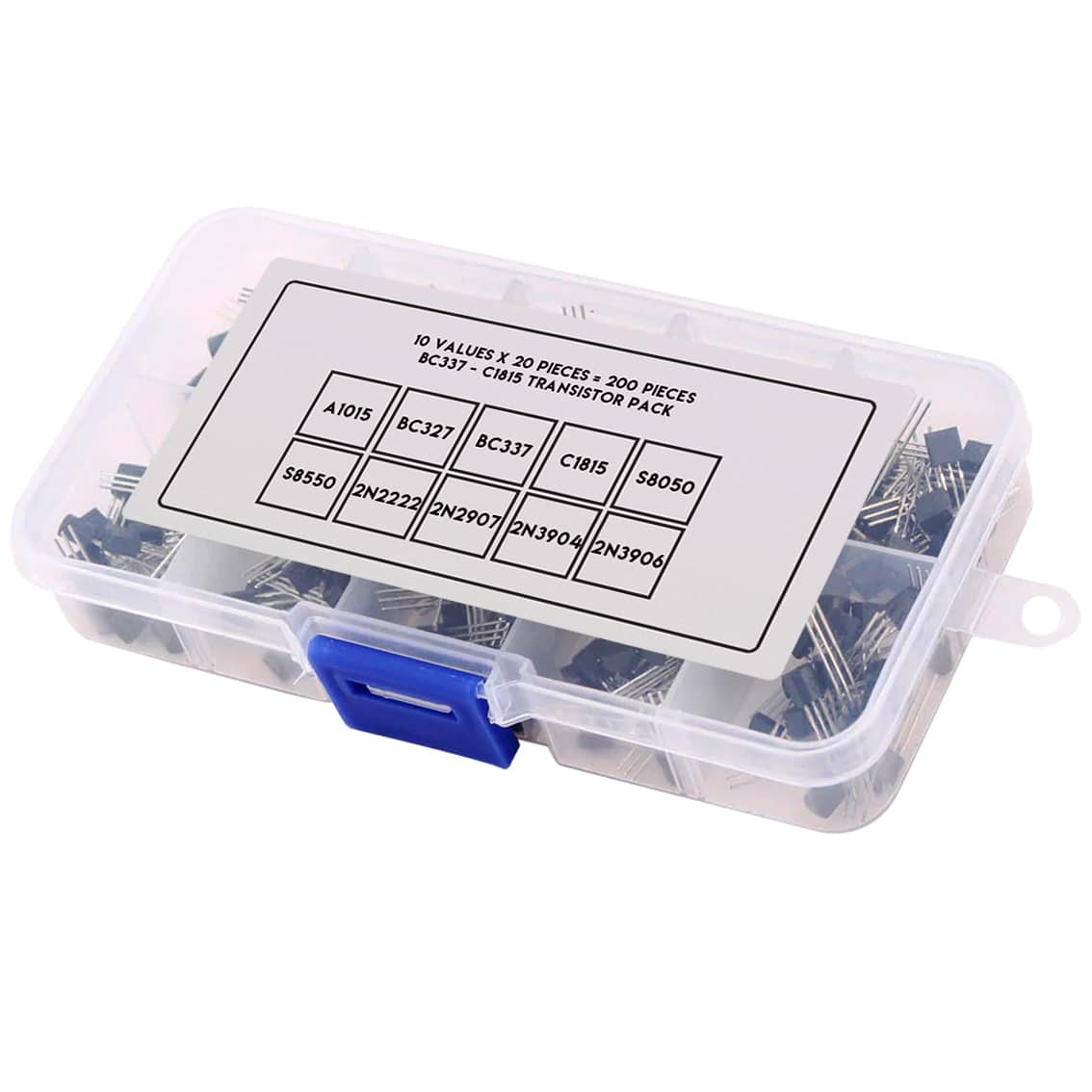

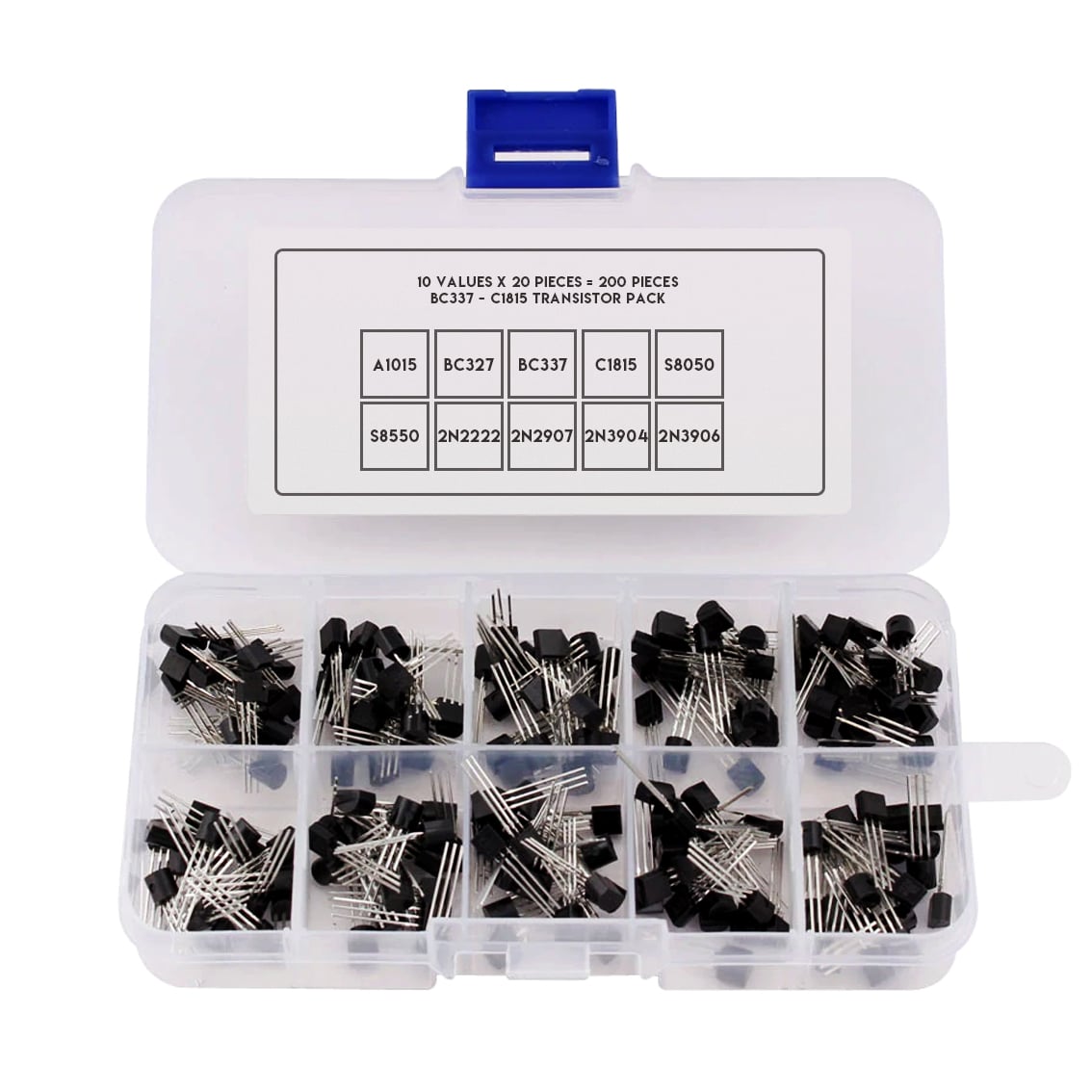

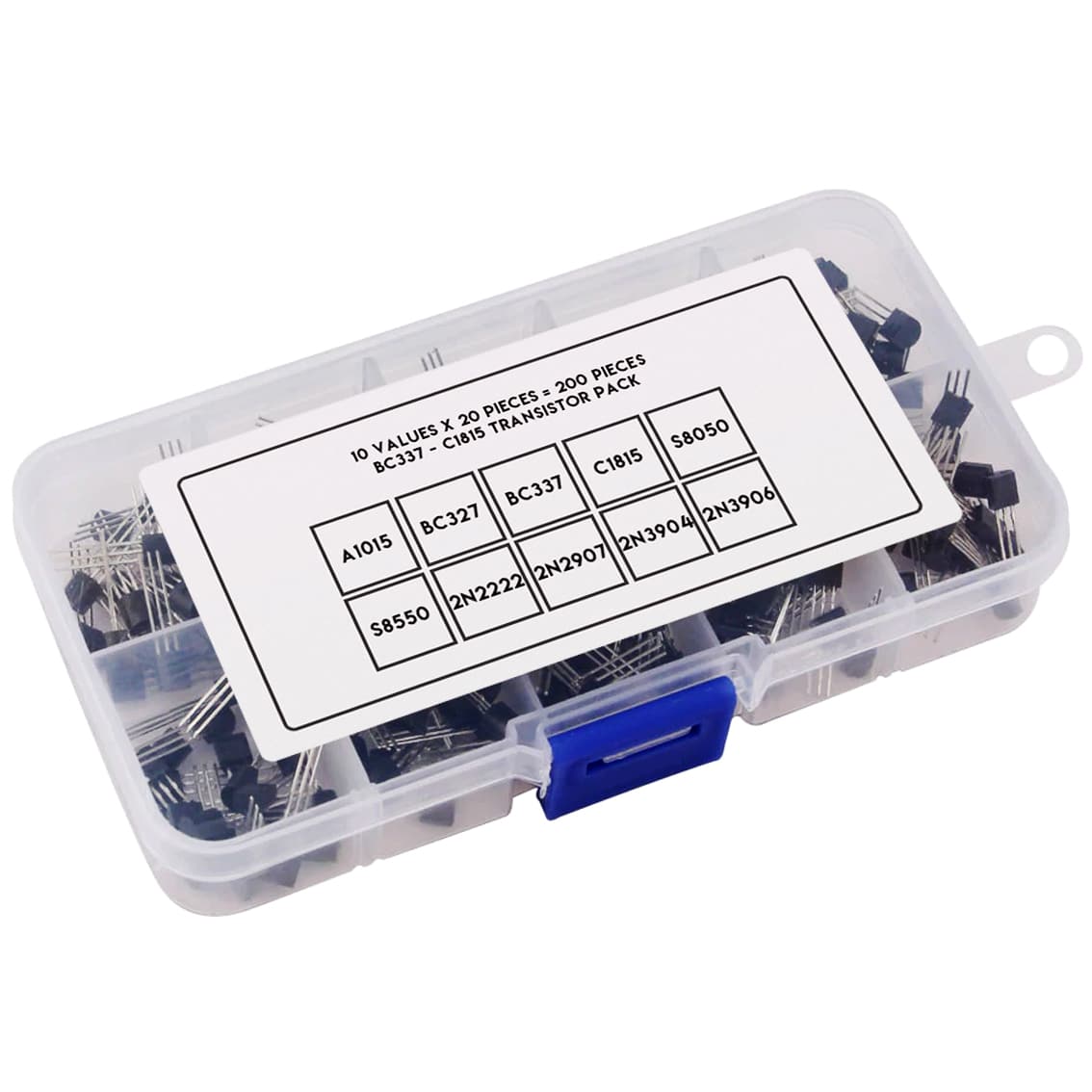

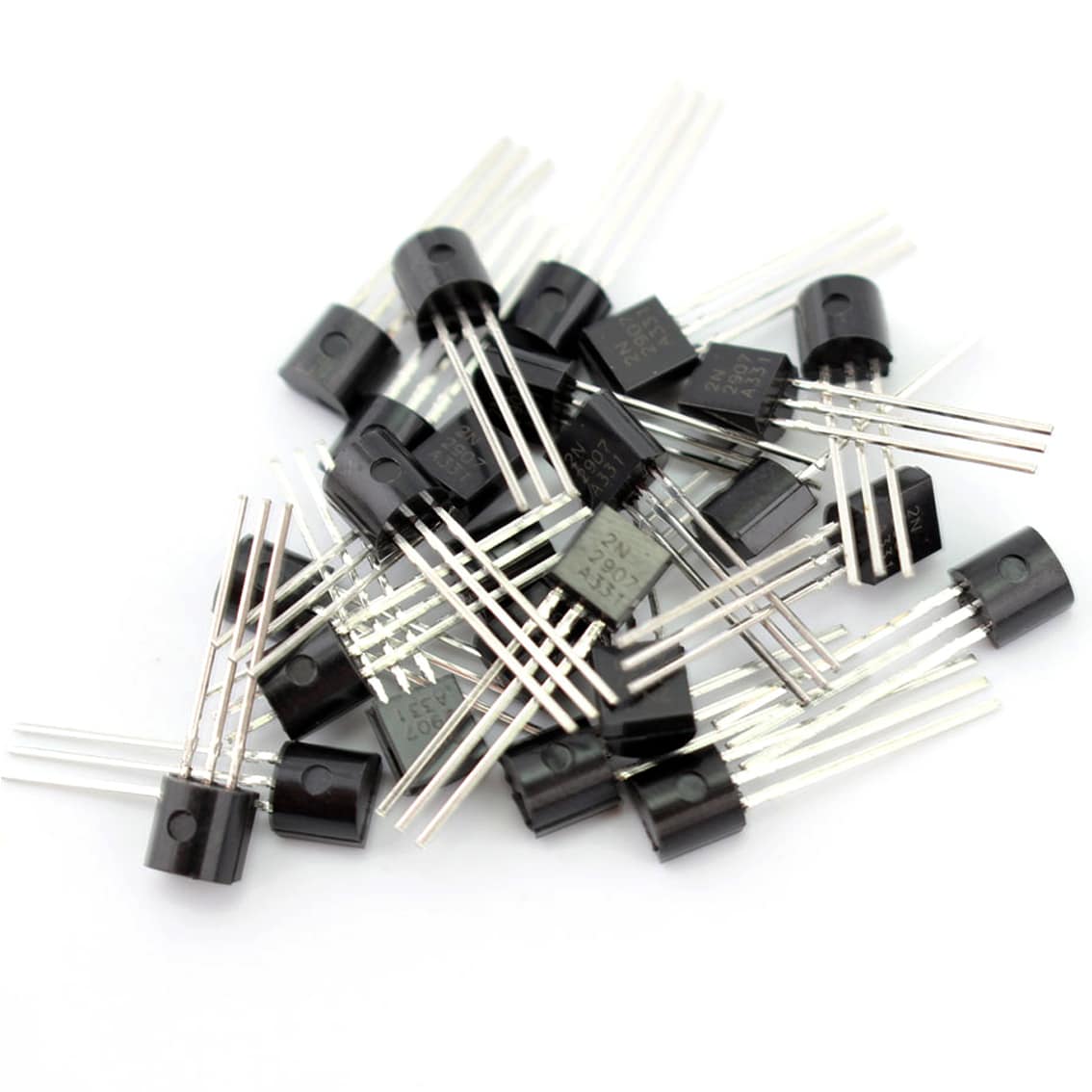

This pack of transistors consists of 10 values ranging from BC337 – C1815 all enclosed in TO-92 housing.

$20.95

Order Within –

FOR SAME DAY SHIPPING!

Availability: 42 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 6
Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 7
Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 8
Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 9
Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 10
Transistor Pack in Storage Case – 10 Values – Pack of 200 PHI1001841 Phipps Electronics 11
SKU: PHI1001841

You May Also Like...

Description:

This pack of transistors consists of 10 values ranging from BC337 – C1815 all enclosed in TO-92 housing.

The values consist of BC337, BC327, 2N222, 2N2907, 2N3904, 2N3906, S8050, A1015 and C1815 with 20 of each, making a total of 200 transistors.



Specifications:

  • BC337 Bipolar NPN Transistor
    • Quantity: 20
    • Voltage: 45V
    • Current: 800mA
    • Frequency: 100MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • BC327 Bipolar PNP Transistor
    • Quantity: 20
    • Voltage: 45V
    • Current: 800mA
    • Frequency: 100MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • 2N2222 Bipolar NPN Transistor
    • Quantity: 20
    • Voltage: 40V
    • Current: 600mA
    • Frequency: 200MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • 2N907 Bipolar PNP Transistor
    • Quantity: 20
    • Voltage: 40V
    • Current: 600mA
    • Frequency: 200MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • 2N3904 Bipolar NPN Transistor
    • Quantity: 20
    • Voltage: 40V
    • Current: 200mA
    • Frequency: 200MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • 2N3906 Bipolar PNP Transistor
    • Quantity: 20
    • Voltage: 40V
    • Current: 200mA
    • Frequency: 200MHz
    • Max power dissipation: 625mW
    • Through Hole TO-92
  • S8050 Bipolar NPN Transistor
    • Quantity: 20
    • Voltage: 25V
    • Current: 500mA
    • Frequency: 100MHz
    • Max power dissipation: 1W
    • Through Hole TO-92
  • S8550 Bipolar PNP Transistor
    • Quantity: 20
    • Voltage: 25V
    • Current: 500mA
    • Frequency: 100MHz
    • Max power dissipation: 1W
    • Through Hole TO-92
  • A1015 Bipolar PNP Transistor
    • Quantity: 20
    • Voltage: 50V
    • Current: 150mA
    • Frequency: 80MHz
    • Max power dissipation: 400mW
    • Through Hole TO-92
  • C1815 Bipolar NPN Transistor
    • Quantity: 20
    • Voltage: 50V
    • Current: 150mA
    • Frequency: 80MHz
    • Max power dissipation: 400mW
    • Through Hole TO-92



Contents:

  • 20 x BC337 Transistor
  • 20 x BC327 Transistor
  • 20 x 2N2222 Transistor
  • 20 x 2N2907 Transistor
  • 20 x 2N3904 Transistor
  • 20 x 2N3906 Transistor
  • 20 x S8050 Transistor
  • 20 x S8550 Transistor
  • 20 x A1015 Transistor
  • 20 x C1815 Transistor
  • 1 x Case
Weight 0.062 kg
Dimensions 140 × 25 × 70 mm
Brand

Transistor Type

Transistor Polarity

,

Max Power Dissipation

1W, 400mW, 625mW
Collector Current

, , , ,

Collector Emitter Voltage

, , ,

Transistor Transition Frequency

, ,

Mounting Type

Package / Case
