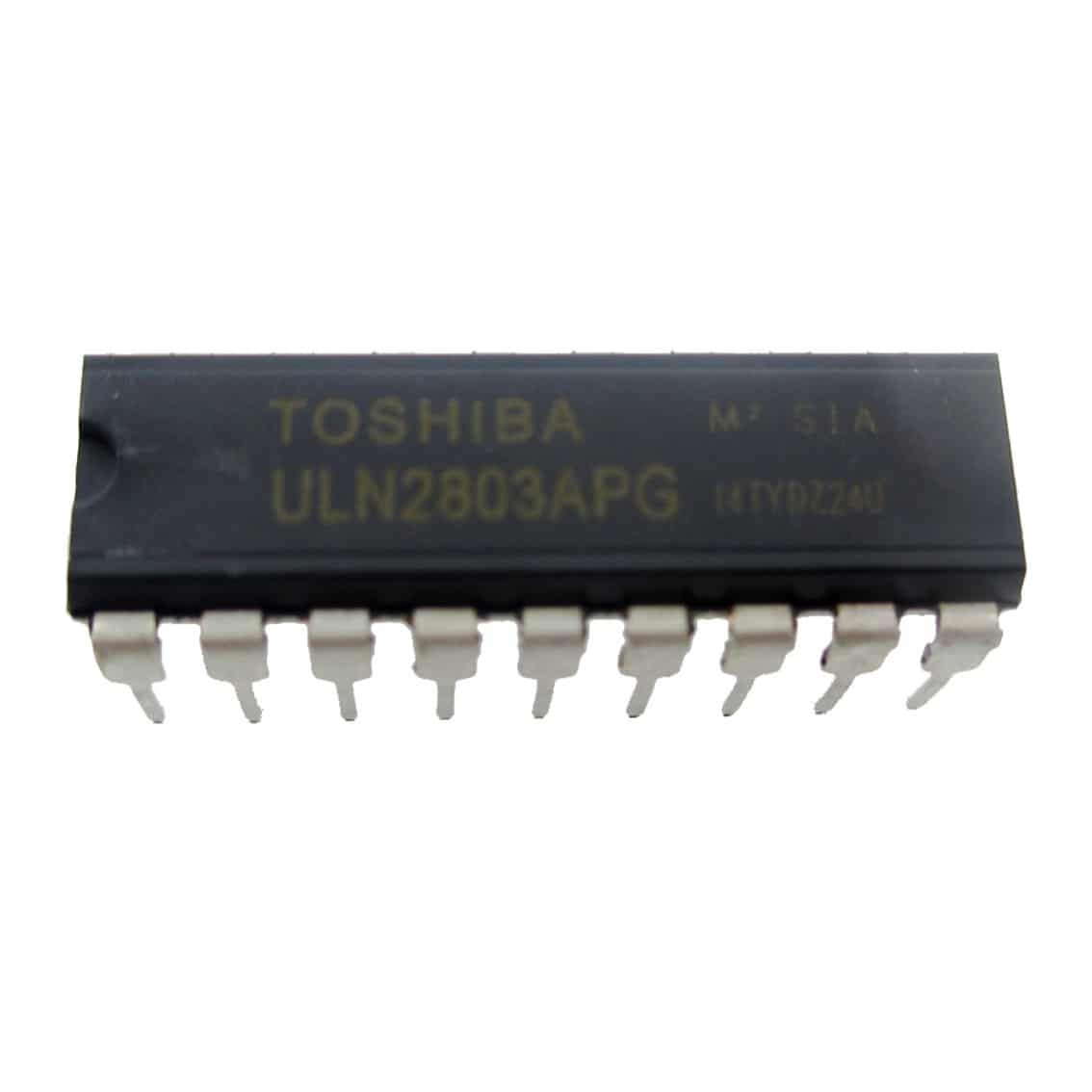

ULN2803 8 Channel Darlington Driver DIP 18 IC – Pack of 5

27 people have recently viewed this product!

ULN2803 8 Channel Darlington Driver DIP 18 IC – Pack of 5

The ULN2803 is an 8-Channel Darlington Driver. A Darlington pair means a few transistors cascaded together which become extremely sensitive to the change of base current input.

$14.95

Order Within –

Availability: 32 in stock

All stock located in Australia.

FREE SHIPPING Worldwide on orders $199+

EXPRESS SHIPPING Available.

SKU: PHI1001466

Description:

The ULN2803 is an 8-Channel Darlington Driver. A Darlington pair means a few transistors cascaded together which become extremely sensitive to the change of base current input.



Specifications:

  • Collector emitter voltage: 50V
  • Input voltage: 2V – 30V
  • Peak collector current: 500mA
  • Output clamp current: 500mA
  • Total substrate terminal current: 2.5A
  • Operating temperature: -65C – 150C



Features:

  • 500mA rated collector current (single output)
  • High voltage outputs: 50V
  • Output clamp diodes
  • Inputs compatible with various types of logic



Contents:

  • 5 x ULN2803 8 Channel Darlington Driver DIP 18
Weight 0.008 kg
Dimensions 90 × 10 × 60 mm
Brand

Type

Collector Emitter Voltage

Collector Current

Input Voltage

Operating Temperature

Package / Case

Mounting Type

Pins

18
