Description:

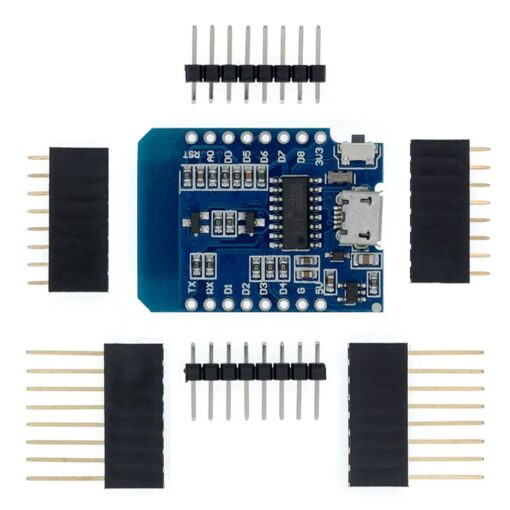

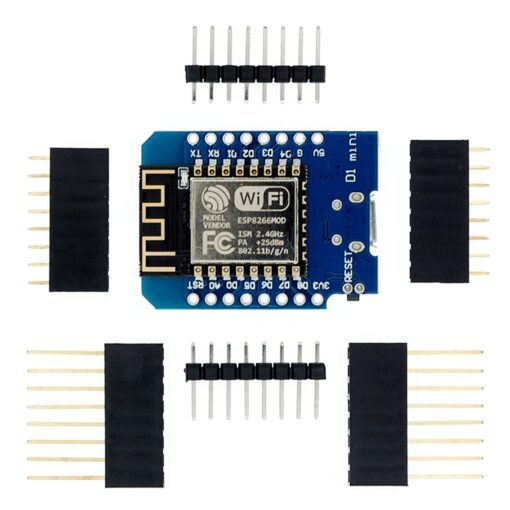

The WeMos Lolin D1 Mini is a compact development board based on the ESP8266 microcontroller, renowned for its integrated Wi-Fi capabilities. It features 11 digital I/O pins and a single analog input, making it suitable for various IoT and embedded applications. The board is compatible with popular programming environments like Arduino, MicroPython, and NodeMCU, providing flexibility and ease of use for developers. Its small form factor, measuring 34.2mm x 25.6mm, ensures seamless integration into space-constrained projects.
The D1 Mini uses a micro-USB port for power and programming, simplifying connections to your PC or power source. With 4MB of flash memory and clock speeds up to 160MHz, it delivers robust performance for demanding tasks. The board supports multiple interfaces, including UART, SPI, and I2C, allowing integration with a wide range of peripherals. Designed for prototyping and IoT projects, the D1 Mini is a versatile and reliable tool for developers.
Specifications:
- Microcontroller: ESP-8266EX
- Operating Voltage: 3.3V
- Input Voltage: 4.5V–9V (via micro-USB)
- Digital I/O Pins: 11 (interrupt/pwm/I2C/one-wire supported, except D0)
- Analog Input: 1 (3.2V max input)
- Clock Speed: 80/160MHz
- Flash Memory: 4MB
- USB Port: Micro-USB
- Dimensions: 34.2mm x 25.6mm
- Weight: 3g
Features:
- Integrated Wi-Fi connectivity
- Compatible with Arduino, MicroPython, and NodeMCU
- Supports various interfaces: interrupt, PWM, I2C, one-wire
- Compact design suitable for space-constrained projects
- Micro-USB port for programming and power
Contents:
- 1 x WeMos Lolin D1 Mini ESP8266 Development Board
