Description:

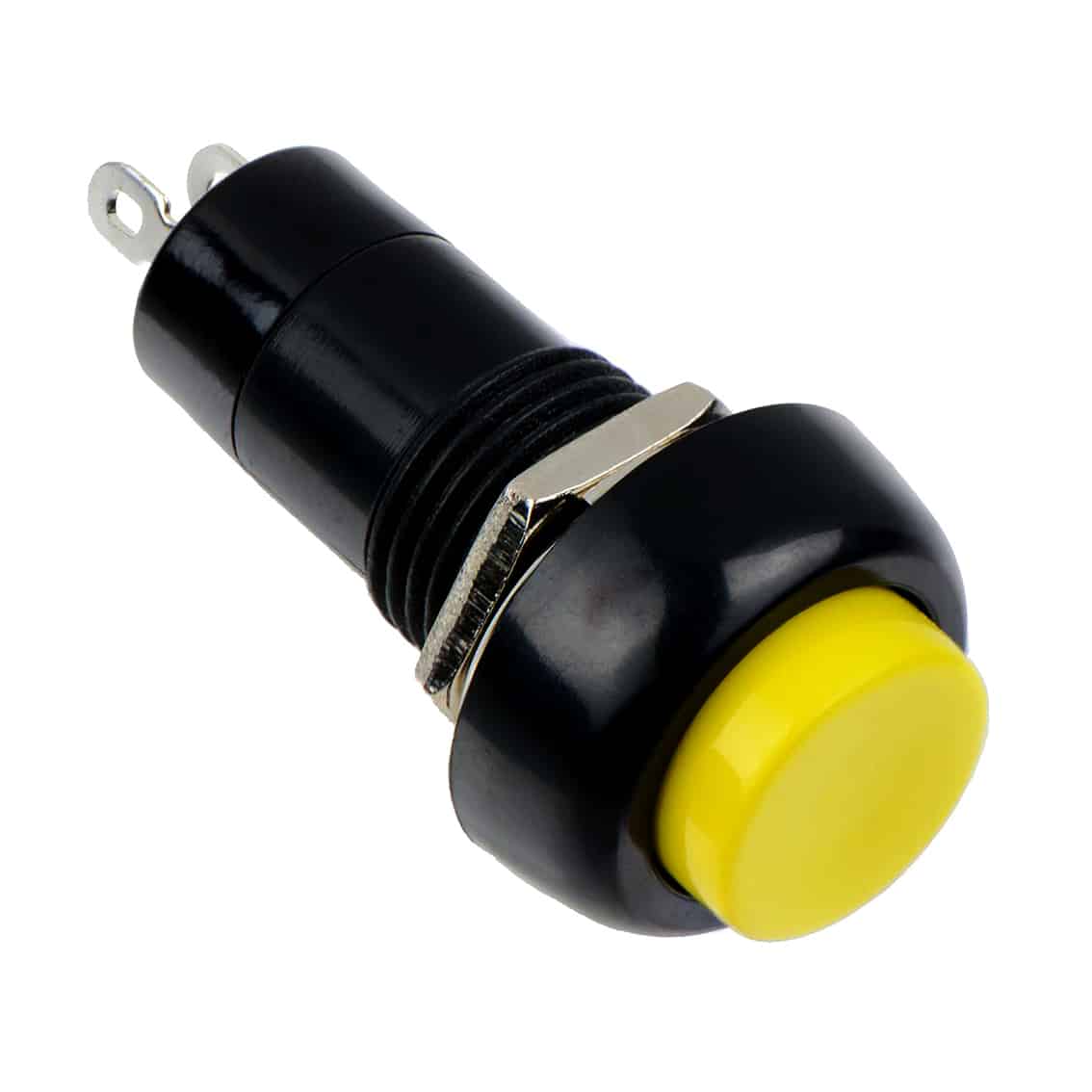

The Yellow Self-Locking Push Button Switch PBS-11 is a high-quality, durable switch for various applications. This self-locking switch stays activated until pressed again, making it ideal for control panels, electronic devices, household appliances, and automotive electronics. Featuring a 12mm diameter button, it ensures easy installation and reliable on/off functionality.
Constructed from premium materials, the PBS-11 switch offers long-lasting performance with a mechanical life of over 200,000 cycles. It operates efficiently under different environmental conditions, making it suitable for industrial and residential use. Available in a pack of 5, this switch set provides an economical solution for projects requiring multiple self-locking switches.
Specifications:
- Model: PBS-11A
- Action Type: Self-locking
- Contact Type: Normally Open (NO)
- Voltage Rating: AC 250V, 3A
- Button Diameter: 12mm
- Mounting Hole Diameter: 12mm
- Terminals: 2 pins
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min
- Dielectric Strength: 2000Vac, 50Hz for 1 min
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- IP Rating: IP40
- Operating Temperature: -25°C to 55°C
- Operating Humidity: 45% to 85% RH
Features:
- High-quality, environmentally friendly materials
- Easy installation with 12mm mounting diameter
- Durable with a long operational life
- Provides a self-locking switch action
- Suitable for a wide range of applications
Contents:
- 5 x Yellow Self-Locking Push Button Switch PBS-11
